NGK SPARK PLUGS UR5GP Part Description
Manufacturer
Product Description

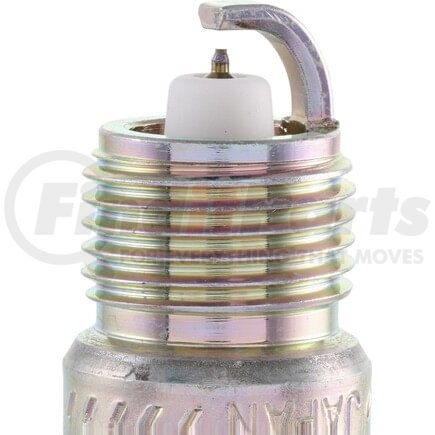

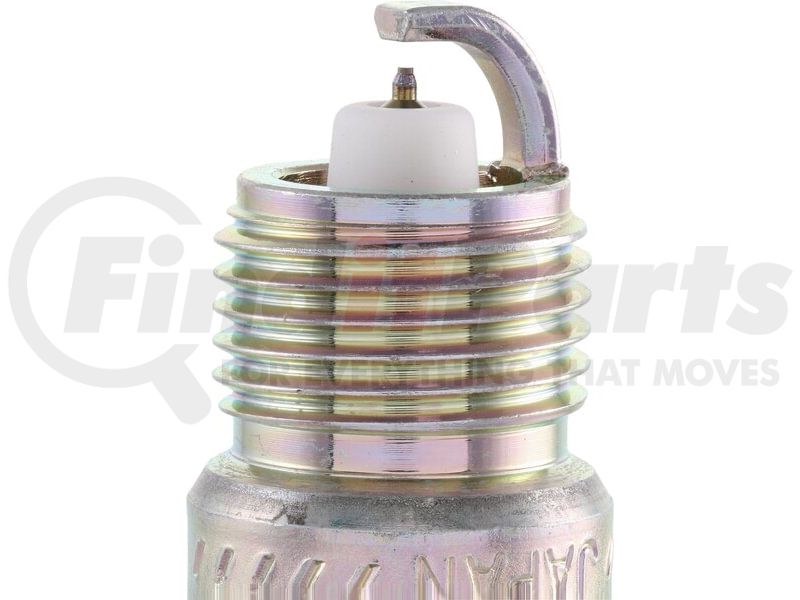

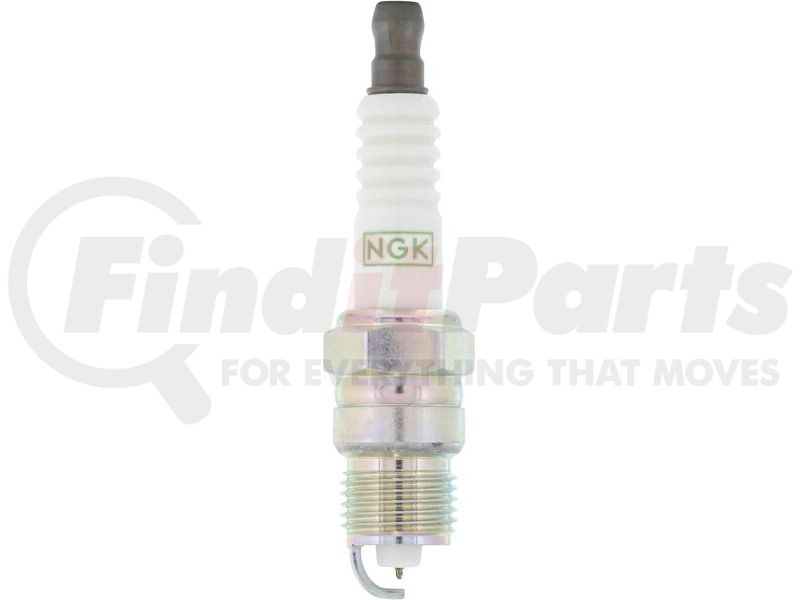

NGK G-Power Platinum Spark Plug
Features & Benefits
- SINGLE PLATINUM TIP: Fine wire 0.6 millimeter platinum tip center electrode ensures improved durability and a consistently stable spark
- PLATINUM ALLOY: G-Power platinum provides exceptional value with increased performance and longer service intervals than factory nickel plugs
- TRAPEZOIDAL CUT GROUND ELECTRODE: Reduces quenching design produces improved ignitability and performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- RECOMMENDED USAGE: Lower cost alternative to double precious metal spark plugs or as an upgrade to OE nickel alloy spark plugs
NGK SPARK PLUGS UR5GP Specifications
Product Attributes
| Short Style Spark Plug | No |
| Service Number | UR5GP |
| Part Number | UR5GP |
| Stock Number | 3547 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Trapezoid |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | No |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | .040 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.07 IN |
| Manufacturer Heat Range | 5 |
| Seat Type | Tapered |
| Reach | 0.460 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.16 IN |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Single Platinum |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.0 MM |
| Insulator Height | 52.5 MM |
| Reach | 11.2 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 4.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295135471 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS UR5GP Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 41-803, 19250960, 19145283, 1, 25164639, 41-821, 41-817, 41-809, 10, 19145292 |
| Autolite | AP664, APP23, APP24DP2, APP24, APP25, APP25DP2, AP24, AP23, AP24DP2 |
| Bosch | HGR9BQP, 6722, 4302, HGR8BDP, 4311, 6708, HGR9BDP |
| Champion Spark Plug | 7018, 3018-2, 3018 |
| DENSO Auto Parts | PTF20TT, PTF16TT, 4510, 4509, 4715, ITF16TT |
| E3 SPARK PLUGS | E340 |
| N/A | UR5GP |
| NGK | 3547 |
NGK SPARK PLUGS UR5GP Fits Vehicles
- Ford F-250 HD (1997)
- Chevrolet C3500HD (1991-1995)
- GMC C3500HD (1991-1995)
- Chevrolet P40 (1988)
- Ford C800 (1986)
- Ford B-600 (1986-1989)
- Ford B-700 (1986-1989)
- Ford C600 (1986)
- Ford C700 (1986)
- Mercury Cyclone (1971)
- GMC Sprint (1971)
- Ford Falcon (1970)
- Dodge M350 (1974)
- Dodge M300 (1974)
- Chevrolet Biscayne (1971)
- Chevrolet Bel Air (1971)
- Pontiac Acadian (1976-1987)
- Ford Thunderbird (1983)
- Ford Mustang (1983)
- Ford F-350 (1975, 1980, 1984-1997)
- Ford F-250 (1980-1996)
- Ford F-150 (1975, 1980-1996)
- Ford F-Super Duty (1997)
- Ford F-100 (1975, 1980-1983)
- Ford E-350 Econoline Club Wagon (1985-1991, 1996)
- Ford E-350 Econoline (1975, 1980-1982, 1985-1996)
- Ford E-250 Econoline Club Wagon (1980, 1985-1991)
- Ford E-250 Econoline (1975, 1980-1996)
- Ford E-150 Econoline Club Wagon (1980-1996)
- Ford E-150 Econoline (1975, 1980-1996)
- Ford E-100 Econoline Club Wagon (1980-1982)
- Ford E-100 Econoline (1975, 1980-1982)
- Ford Econoline Super Duty (1996)
- Ford Bronco (1975, 1980-1996)
- Oldsmobile Custom Cruiser (1992)
- Pontiac Trans Sport (1990-1995)
- Pontiac T1000 (1981-1987)
- Pontiac Sunbird (1976-1977, 1986)
- Pontiac Phoenix (1980-1984)
- Pontiac Parisienne (1986)
- Pontiac J2000 Sunbird (1984-1985)
- Pontiac J2000 (1982-1983)
- Pontiac Grand Prix (1986)
- Pontiac Firebird (1982-1995)
- Pontiac Fiero (1985-1988)
- Pontiac Bonneville (1986)
- Pontiac Astre (1976-1977)
- Pontiac 6000 (1982-1986)
- Oldsmobile Starfire (1976-1977)
- Oldsmobile Silhouette (1990-1994)
- Oldsmobile Omega (1980-1984)
- Oldsmobile Firenza (1982-1986)
- Oldsmobile Cutlass Ciera (1982-1986)
- Oldsmobile Bravada (1991-1994)
- GMC Yukon (1992-1995)
- GMC V2500 (1987)
- GMC V3500 (1987-1991)
- GMC V2500 Suburban (1987-1991)
- GMC V1500 Suburban (1987-1991)
- GMC V1500 (1987)
- GMC Typhoon (1992-1993)
- GMC Safari (1985-1995)
- GMC Syclone (1991)
- GMC Sonoma (1991-1995)
- GMC S15 (1982-1990)
- GMC S15 Jimmy (1983-1991)
- GMC R3500 (1987-1991)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC R1500 Suburban (1987-1991)
- GMC R1500 (1987)
- GMC P3500 (1987-1997)
- GMC P35 (1976)
- GMC P2500 (1988-1989)
- GMC P25 (1976)
- GMC K3500 (1988-1995)
- GMC K2500 Suburban (1992-1995)
- GMC K2500 (1985-1986, 1988-1995)
- GMC K1500 Suburban (1985-1986, 1992-1995)
- GMC K1500 (1985-1986, 1988-1995)
- GMC Jimmy (1984-1995)
- GMC G3500 (1984-1996)
- GMC G2500 (1984-1995)
- GMC G1500 (1984-1995)
- GMC Caballero (1986)
- GMC C3500 (1988-1995)
- GMC C2500 Suburban (1985-1986, 1992-1995)
- GMC C2500 (1985-1986, 1988-1995)
- GMC C1500 Suburban (1985-1986, 1992-1995)
- GMC C1500 (1984-1986, 1988-1995)
- Chevrolet Vega (1971-1974, 1976-1977)
- Chevrolet V3500 (1989-1991)
- Chevrolet V30 (1987-1988)
- Chevrolet V2500 Suburban (1989-1991)
- Chevrolet V1500 Suburban (1989-1991)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V20 (1987)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet V10 (1987)
- Chevrolet Tahoe (1995)
- Chevrolet S10 (1982-1995)
- Chevrolet S10 Blazer (1983-1994)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R2500 (1989)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet R1500 Suburban (1989-1991)
- Chevrolet R10 Suburban (1987-1988)
- Chevrolet R10 (1987)
- Chevrolet P30 (1987-1997)
- Chevrolet P20 (1987-1989)
- Chevrolet Monza (1976-1977)
- Chevrolet Monte Carlo (1971, 1985-1986)
- Chevrolet Lumina APV (1990-1995)
- Chevrolet K3500 (1988-1995)
- Chevrolet K30 (1985)
- Chevrolet K2500 Suburban (1992-1995)
- Chevrolet K2500 (1988-1995)
- Chevrolet K20 Suburban (1984-1986)
- Chevrolet K20 (1985-1986)
- Chevrolet K1500 Suburban (1992-1995)
- Chevrolet K1500 (1988-1995)
- Chevrolet K10 Suburban (1984-1986)
- Chevrolet K10 (1985-1986)
- Chevrolet G30 (1984-1996)
- Chevrolet G20 (1984-1995)
- Chevrolet G10 (1984-1995)
- Chevrolet El Camino (1971, 1986)
- Chevrolet Corvette (1971, 1985-1987)
- Chevrolet Citation (1980-1983)
- Chevrolet Citation II (1984-1985)
- Chevrolet Chevette (1976-1987)
- Chevrolet Celebrity (1982-1986)
- Chevrolet Cavalier (1982-1986)
- Chevrolet Caprice (1971, 1989-1993)
- Chevrolet Camaro (1982-1995)
- Chevrolet C3500 (1988-1995)
- Chevrolet C2500 Suburban (1992-1995)
- Chevrolet C2500 (1988-1995)
- Chevrolet C20 Suburban (1984-1986)
- Chevrolet C20 (1985-1986)
- Chevrolet C1500 Suburban (1992-1995)
- Chevrolet C1500 (1988-1995)
- Chevrolet C10 Suburban (1984-1986)
- Chevrolet C10 (1984-1986)
- Chevrolet K5 Blazer (1984-1986)
- Chevrolet Blazer (1987-1995)
- Chevrolet Astro (1985-1995)
- Cadillac Commercial Chassis (1992)
- Cadillac Brougham (1990-1992)
- Cadillac Cimarron (1982-1986)
- Buick Skylark (1980-1985)
- Buick Skyhawk (1982-1986)
- Buick Commercial Chassis (1992-1993)
- Buick Roadmaster (1992-1993)
- Buick Century (1983-1986)
- AM General Hummer (1995-1996)
- Jeep Wagoneer (1984-1986)
- Jeep Comanche (1986)
- Jeep Cherokee (1984-1986)
- Isuzu Trooper (1989-1991)
- Isuzu Rodeo (1991-1992)
- Isuzu Pickup (1991-1994)
