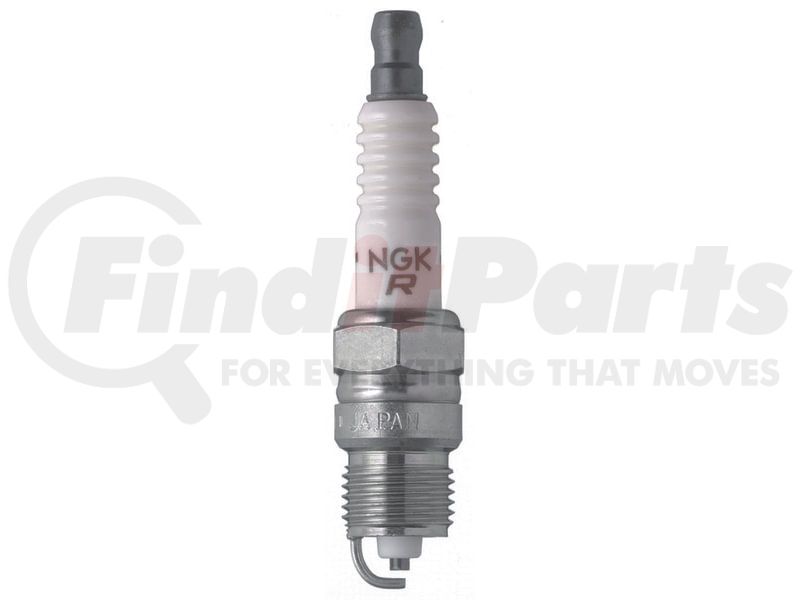

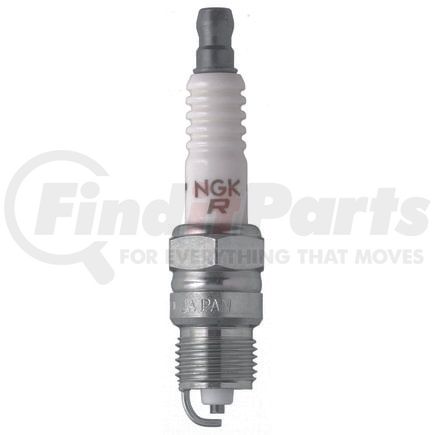

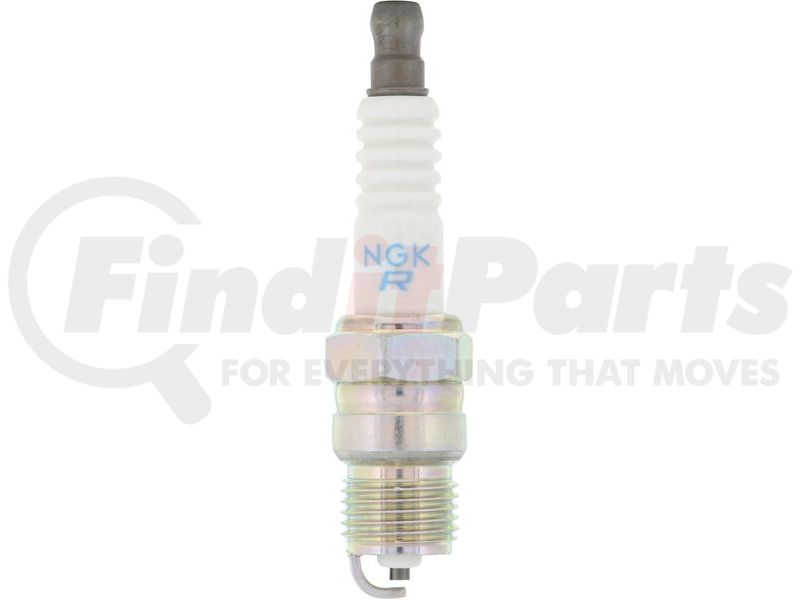

(888) 312-8812 Login SignupNGK SPARK PLUGS BPR6FS NGK Standard Spark Plug
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS BPR6FS Part Description
Manufacturer
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BPR6FS Specifications
Product Attributes
| Stock Number | 2623 |
| Part Number | BPR6FS |
| Short Style Spark Plug | No |
| Service Number | BPR6FS |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |

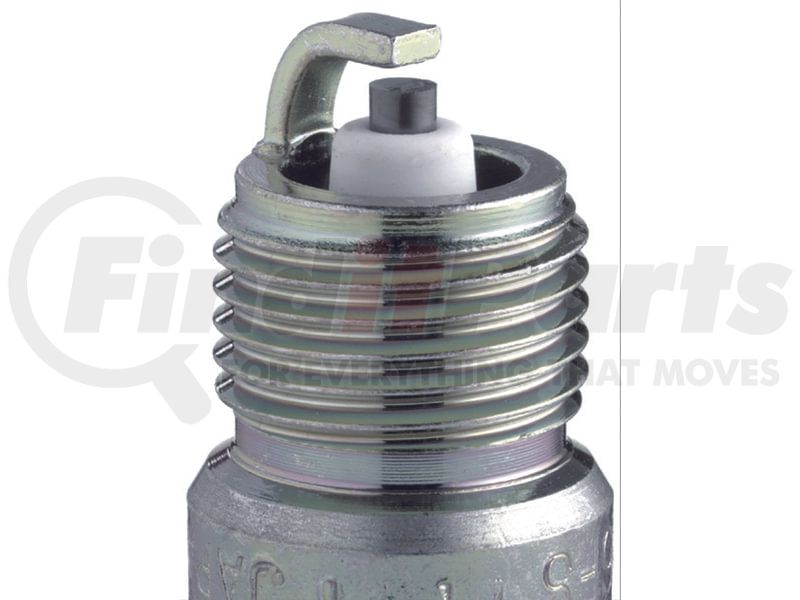

| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | No |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.07 IN |
| Manufacturer Heat Range | 6 |
| Seat Type | Tapered |
| Reach | 0.460 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.12 IN |
| Center Electrode Design | Standard |
| Center Electrode Projection | Mid Projection |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Insulator Height | 52.5 MM |
| Reach | 11.2 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 3.0 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295126233 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BPR6FS Cross References
| Brand | Part Number |
|---|---|
| ACDelco | R41TS, R415TS, R42CTS, R42TS, R43TS, 1835586T, 2R43TS, R41-5TS, R42-5TS, R425TS, R43CTS, R42TSM, 1835510T, 2R42TS |
| AUTOLITE | AR23, AR24, 664, 666 |
| Autolite | 24, 203, 24BP, 24DP2, 3303 |
| Bosch | HR6B, 7964, HR6BC, HR6BP, 7564 |
| CHAMPION | 406 |
| Champion Spark Plug | OBL9Y, RBL9Y, BL9Y, RV9YC, 400 |
| DENSO Auto Parts | 5035, T20PR-U |
| E3 SPARK PLUGS | E340 |
| Magneti Marelli | TW78NPR |
| Motorcraft | SP415, ARF22, ARF22C, ARF32, ARF326, ARF32C6, ASF22C, ASF32C, ASF32M, ASF32, ASF32CM |
| N/A | BPR6FS |
| NGK | 2623 |
| Torch | P6TC, P6RTC |
