NGK SPARK PLUGS PFR7B Part Description
Manufacturer
Product Description

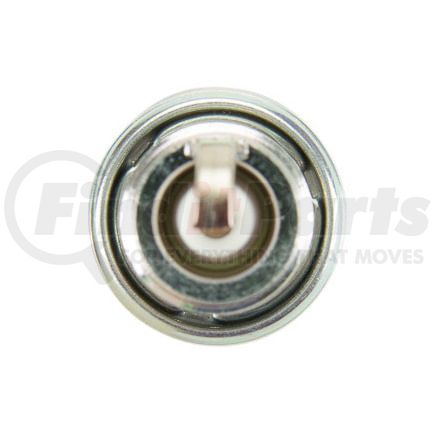

NGK Laser Platinum Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire platinum alloy center electrode provides consistent performance
- PLATINUM ALLOY CENTER ELECTRODE: Longer wearing and higher temperature resistance compared to traditional nickel spark plugs
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire platinum alloy plugs
NGK SPARK PLUGS PFR7B Specifications
Product Attributes
| Short Style Spark Plug | No |
| Part Number | PFR7B |
| Stock Number | 4853 |
| Service Number | PFR7B |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99 IN |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.14 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Double Platinum |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Insulator Height | 50.5 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 3.5 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295148532 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS PFR7B Cross References
| Brand | Part Number |
|---|---|
| AUTOLITE | APP3922 |
| BMW | 12 12 0 035 747 |
| Beck/Arnley | 1765303 |
| Bosch | F5DP0R, F5DPOR |
| CHAMPION | 7545 |
| Champion Spark Plug | RC78PYP |
| DENSO Auto Parts | 3265, PK22PR8, 3273, PK22PR11 |
| E3 SPARK PLUGS | E364 |
| Kohler | 2513208S |
| Motorcraft | AGPR12PP8 |
| N/A | PFR7B |
| NGK | 4853 |
| Nissan | 22401-53J17, 22401-53V17 |
| Subaru | 22401AA360 |
| VEMO | V99-75-0067 |
NGK SPARK PLUGS PFR7B Fits Vehicles
- BMW Alpina B7 (2007-2008)
- Audi 200 Quattro (1991)
- Audi S6 (1995-1997)
- Audi S4 (1992-1994)
