(888) 312-8812 Login SignupAUTOLITE 765BP Autolite 765BP Copper Resistor Spark Plug - Bulk Pack
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
AUTOLITE 765BP Part Description
Manufacturer
Product Description

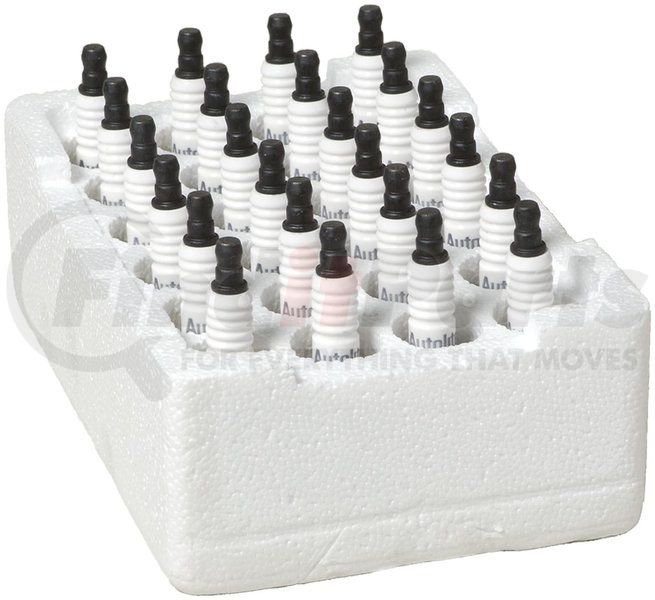

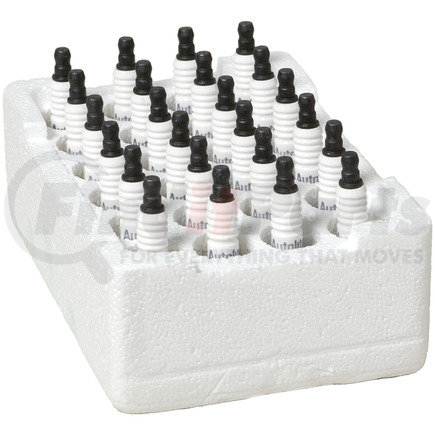

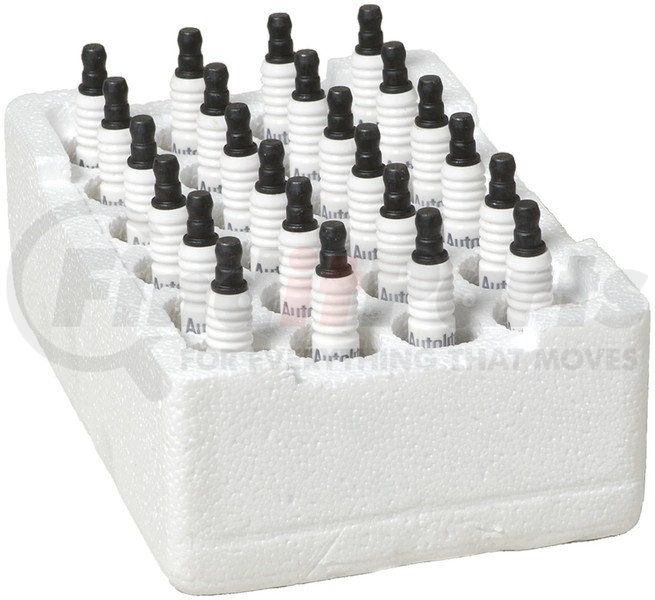

Autolite 765BP Copper Resistor Spark Plug - Bulk Pack
Features & Benefits
- One-Piece terminal stud provides a reliable high voltage electrical connection
- The copper core center electrode aids in thermal control and improves resistance to fouling.
- High alumina multi-rib insulator helps prevent flash-over which can lead to misfires
- Its specially engineered high nickel alloy center and ground electrode provides extended life.
- Heat-fused glass composite resistor center seal provides high performance EMI noise suppression and a 100 percent leak-proof seal
- The high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
- Solid copper core center electrode provides optimal thermal and electrical conductivity for better performance in all driving conditions
- Designed with a nickel-plated shell that is corrosion resistant to provide increased durability for extended periods.
- High nickel alloy side electrode resists electrical and chemical wear providing excellent durability
- 2 year limited warranty
AUTOLITE 765BP Specifications
Product Attributes
| Resistance | 4000 82 |
| Ground Electrode Tip Design | Standard |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | 0.044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 16 MM |
| Seat Type | Tapered |
| Reach | 17 MM |
| Thread Diameter | 14 MM |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Ground Electrode Tip Material | Nickel |
| Center Electrode Design | Standard |
| Center Electrode Projection | Mid Projection |
| Washer(s) Included | No |
| Grade Type | Regular |
| Hex Size | 5/8 IN |
| Manufacturer Heat Range | 8 |
| Reach | 0.679 IN |
| Skirt | Yes |
| Hex Type | Hex |
| Indexed | No |
| Pre-Gap Size | 1.1176 MM |
| Thread Type Standard | Metric |
| Thread Size | M14 - 1.25 |
| Thread Diameter | 14 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Time | 2 |
| Warranty Time UOM | YR |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100252111 |
| UNSPSC | 26101732 |
AUTOLITE 765BP Cross References
AUTOLITE 765BP Fits Vehicles
- Ford Explorer (1991-1996)
- Mazda B4000 (1994-1996)
- Mazda Navajo (1991-1994)
- Merkur Scorpio (1988-1989)
- Mercury Zephyr (1978-1982)
- Mercury Topaz (1984-1994)
- Mercury Cougar (1981-1982)
- Mercury Capri (1977, 1979-1982)
- Mercury Bobcat (1977-1980)
- Ford Windstar (1996-2002)
- Ford Tempo (1984-1994)
- Ford Ranger (1983-1995)
- Ford Pinto (1977-1980)
- Ford Mustang II (1977-1978)
- Ford Mustang (1979-1982)
- Ford Granada (1981-1982)
- Ford Fairmont (1978-1982)
- Ford Courier (1977-1982)
- Ford Bronco II (1984-1990)
- Ford Aerostar (1986, 1990-1997)
