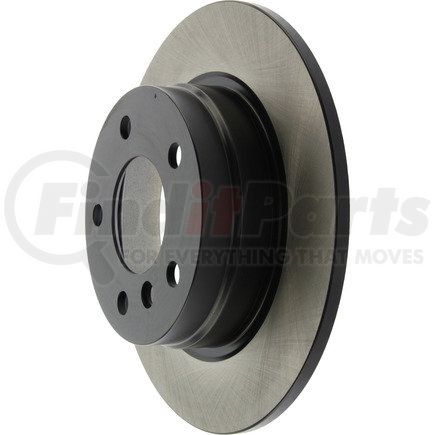

(888) 312-8812 Login SignupCENTRIC 125.34030 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
$8899
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Mar 19
CENTRIC 125.34030 Part Description
Manufacturer
Product Description
Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.34030 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Lbs | 10.370 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Kgs | 4.710 |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.400 MM |
| Nominal Thickness | 10.000 MM |
| Nominal Thickness | 0.394 IN |
| Hat Finish | Painted |
| Overall Height | 60.100 MM |
| Overall Height | 2.366 IN |
| Outside Diameter | 280.000 MM |
| Outside Diameter | 11.024 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 161.000 MM |
| Nominal Drum Diameter | 6.339 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.591 IN |
| Stud/Lug Hole Diameter | 15.000 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890201816 |
CENTRIC 125.34030 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | SP10202, SP00039, 410150, 410202 |
| N/A | BD125278, 410202, 6412290, 34007, 34172, 34172G, 34007G, 31211158936, 34211158936, 34211162284, 34211162289, 34211164401, 34211165457, 34216855158, 34216864051, 141817, 145302, 86958, 4886387, 4886958, 86387, 1149, EBR420, D17734, 125.34030, 1.0632.5.4, BW371P, 25144, 96387, 96387P, 96958, DDF249, DF1539, 8962031, 142109, 90031028, 150.1270.00 |
| RAYBESTOS | 96958R |
| Raybestos Brakes | 96958R |
CENTRIC 125.34030 Fits Vehicles
- BMW 328is (1996-1999)
- BMW 328i (1996-1999)
- BMW 325is (1992-1995)
- BMW 325i (1992-1995)
- BMW 323is (1998-1999)
- BMW 323i (1998-1999)
- BMW 318is (1992-1999)
- BMW 318i (1992-1999)
