(888) 312-8812 Login SignupCENTRIC 120.51010 Centric Premium Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.51010 Part Description
Manufacturer
Product Description

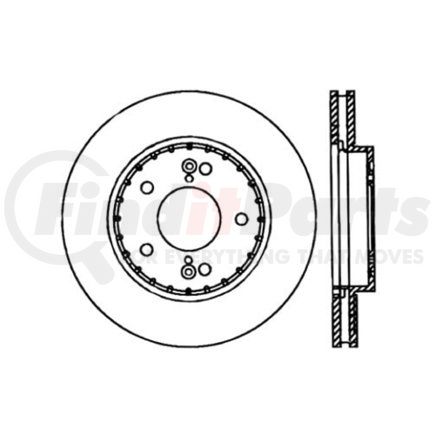

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

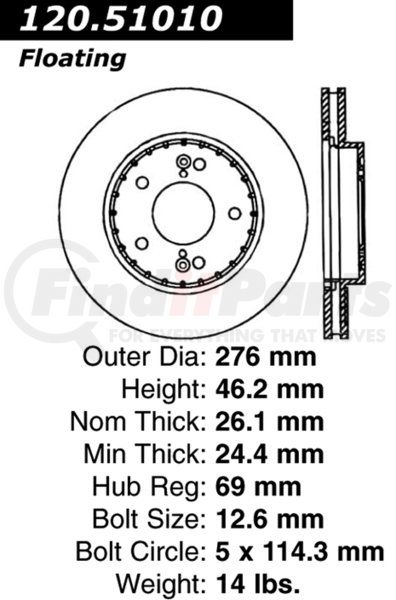

CENTRIC 120.51010 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 6.360 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 14.000 |
| Discard Thickness | 0.961 IN |
| Discard Thickness | 24.400 MM |
| Nominal Thickness | 1.028 IN |
| Nominal Thickness | 26.100 MM |
| Hat Finish | Painted |
| Overall Height | 46.200 MM |
| Overall Height | 1.819 IN |
| Outside Diameter | 276.000 MM |
| Outside Diameter | 10.866 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 69.000 MM |
| Center Hole Diameter | 2.717 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.496 IN |
| Stud/Lug Hole Diameter | 12.600 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890009580 |
CENTRIC 120.51010 Cross References
CENTRIC 120.51010 Fits Vehicles
- Hyundai XG350 (2002-2003)
- Hyundai XG300 (2001)
