(888) 312-8812 Login SignupCENTRIC 123.66040 C-Tek Standard Brake Drum

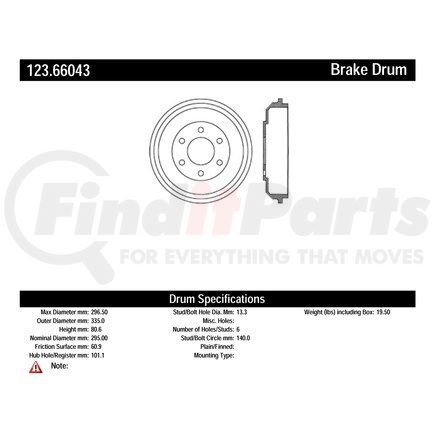

*Representative image - actual part not displayed
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.66040 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.66040 Specifications
Product Attributes
| Misc Holes [cntrc] | 4 |
| Weight [cntrc] Kgs | 10.909 |
| Weight [cntrc] Lbs | 24.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 165.100 |
| Bolt Circle Diameter [cntrc] In | 6.500 |
| Hub Hole / Register [cntrc] Mm | 116.840 |
| Hub Hole / Register [cntrc] In | 4.600 |
| Height [cntrc] Mm | 127.508 |
| Height [cntrc] In | 5.020 |
| Friction Surface Width [cntrc] Mm | 80.772 |
| Friction Surface Width [cntrc] In | 3.180 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 285.500 MM |
| Maximum Brake Diameter (Discard) | 11.240 IN |
| Bolt Hole Quantity | 8 |
| Outside Diameter | 329.946 MM |
| Outside Diameter | 12.990 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 16.000 MM |
| Mounting Hole Diameter | 0.630 IN |
| Nominal Drum Diameter | 283.200 MM |
| Nominal Drum Diameter | 11.150 IN |
CENTRIC 123.66040 Cross References
| Brand | Part Number |
|---|---|
| N/A | E128-71-045, 123.66040 |
| RAYBESTOS | 2073, 2073R |
