CENTRIC 406.40027E Part Description
Manufacturer
Product Description

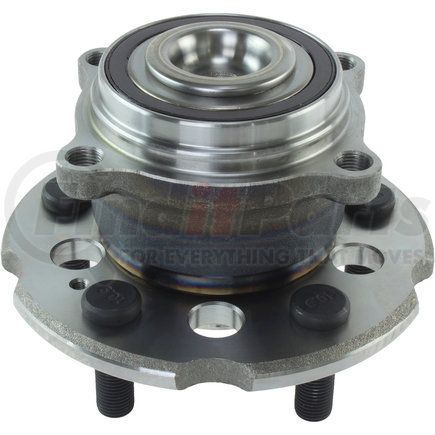

C-Tek Standard Hub and Bearing Assembly; With ABS
Features & Benefits
- High Quality Replacement Components. High quality steel and surface finishes reduce noise and extend service life . Exact engineering ensures smooth installation
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 406.40027E Specifications
Product Attributes
| Bolt Circle Diameter [cntrc] In | 4.700 |
| Off-set [cntrc] In | 62.100 |
| Off-set [cntrc] Mm | 2.445 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Inner Mount Pilot [cntrc] In | 3.274 |
| Product Grade [cntrc] | Premium |
| Mounting Hole Qty [cntrc] | 4 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Inner Mount Pilot [cntrc] Mm | 83.160 |
| Bolt Circle Diameter [cntrc] Mm | 119.380 |
| Notes [cntrc] | Retaining Holes 2 x M6-1.0; 5 Flange Holes 0.690", Inner Hub Pilot Has Rubber O-Ring |
| Wheel Stud Size | 14.000 MM |
| Wheel Pilot Diameter | 64.030 MM |
| Wheel Pilot Diameter | 2.521 IN |
| Brake Pilot Diameter | 70.050 MM |
| Brake Pilot Diameter | 2.758 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 6.292 IN |
| Flange Diameter | 159.820 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890977209 |
CENTRIC 406.40027E Cross References
CENTRIC 406.40027E Fits Vehicles
- Honda Pilot (2009-2015)
