CENTRIC 120.63020 Part Description
Manufacturer
Product Description

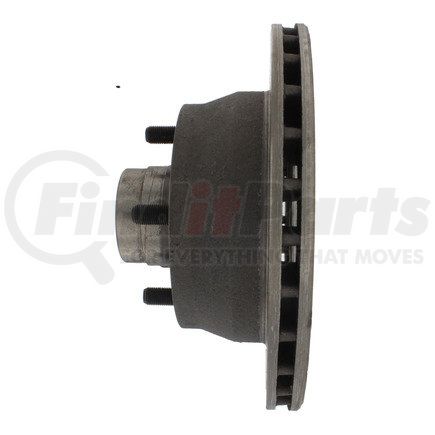

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.63020 Specifications
Product Attributes
| Outer Bearing # [cntrc] | 410.91016 |
| Inner Seal # [cntrc] | 417.63004 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 8.640 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Bearing # [cntrc] | 410.91017 |
| Weight [cntrc] Lbs | 19.000 |
| Discard Thickness | 20.570 MM |
| Discard Thickness | 0.810 IN |
| Nominal Thickness | 22.230 MM |
| Nominal Thickness | 0.875 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 120.900 MM |
| Overall Height | 4.760 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 261.100 MM |
| Rotor Outside Diameter | 10.280 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 71.400 MM |
| Center Hole Diameter | 2.811 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890035756 |
CENTRIC 120.63020 Cross References
CENTRIC 120.63020 Fits Vehicles
- American Motors Gremlin (1977-1978)
- American Motors Concord (1978)
