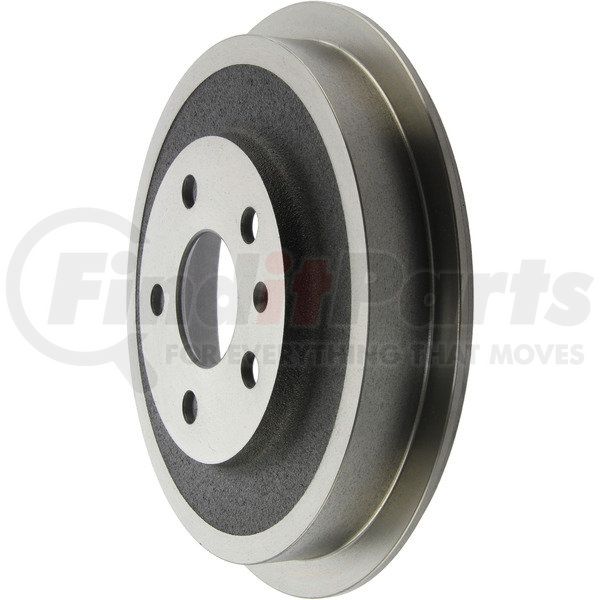

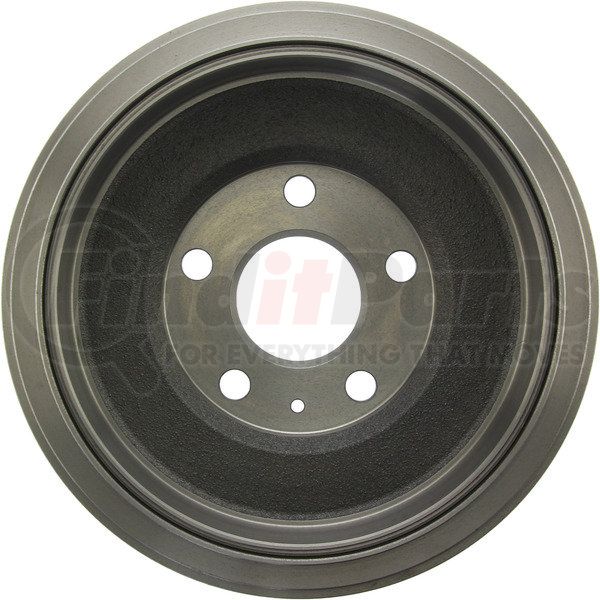

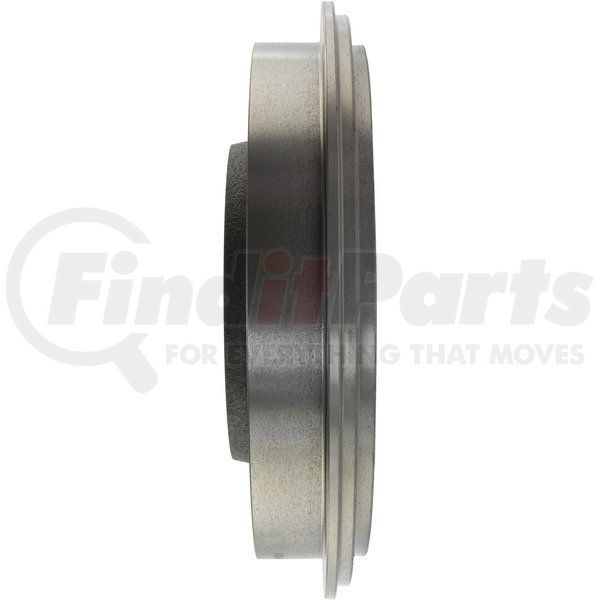

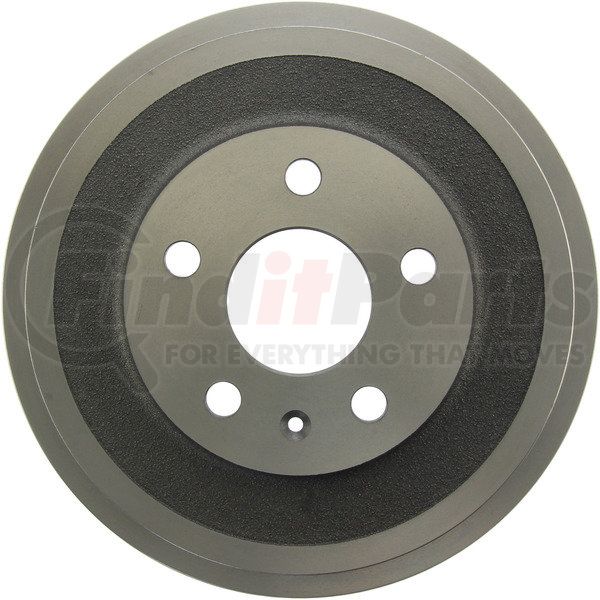

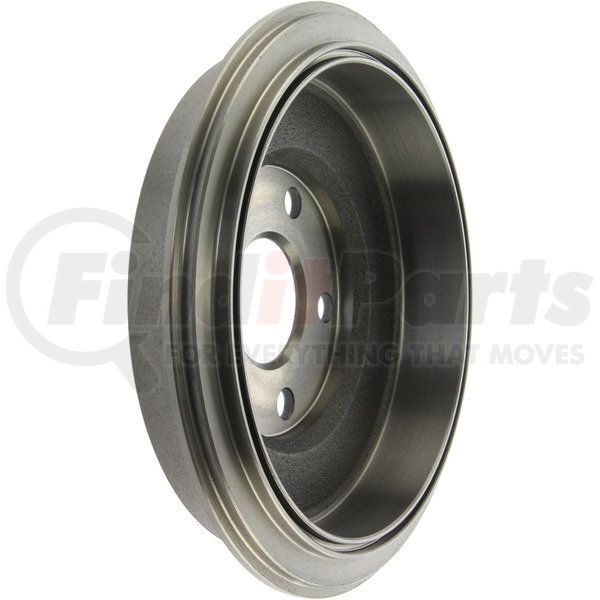

CENTRIC 123.3302 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Application Summary
Volkswagen Jetta 2012-2011
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
C-Tek; Centric; Standard brake rotor; standard brake drum; Centric standard Drums; Centric c-tek standard brake drum
| Make | Volkswagen |
| Model | Beetle, Jetta |
| Year | 2011 |
CENTRIC 123.3302 Specifications
Product Attributes
| Maximum Brake Diameter (Discard) | 231.400 MM |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 290.000 MM |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 15.750 MM |
| Nominal Drum Diameter | 229.800 MM |
| Bolt Circle Diameter [cntrc] In | 4.409 |
| Bolt Circle Diameter [cntrc] Mm | 112.000 |
| Friction Surface Width [cntrc] In | 1.528 |
| Friction Surface Width [cntrc] Mm | 38.800 |
| Height [cntrc] In | 2.547 |
| Height [cntrc] Mm | 64.700 |
| Hub Hole / Register [cntrc] In | 2.551 |
| Hub Hole / Register [cntrc] Mm | 64.800 |
| Misc Holes [cntrc] | 1 |
| Mounting Type [cntrc] | Floating |
| Weight [cntrc] Kgs | 7.318 |
| Weight [cntrc] Lbs | 16.100 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890914549 |
CENTRIC 123.3302 Cross References
| Brand | Part Number |
|---|---|
| RAYBESTOS | 97824R |
CENTRIC 123.3302 Fits Vehicles
- Volkswagen Jetta (2011-2012)
