(888) 312-8812 Login SignupCENTRIC 125.34146 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.34146 Part Description
Manufacturer
Product Description

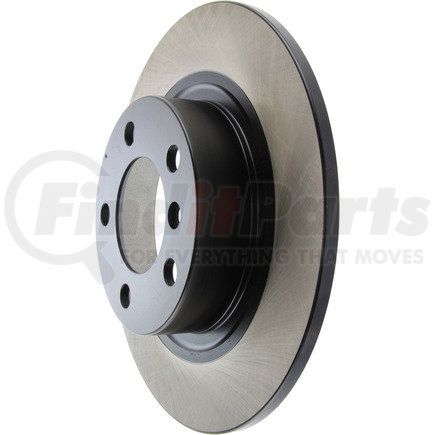

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.34146 Specifications
Product Attributes
| Weight [cntrc] Kgs | 4.920 |
| Hat Id [cntrc] In | 5.795 |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] Mm | 147.200 |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Lbs | 10.800 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 8.400 MM |
| Discard Thickness | 0.331 IN |
| Nominal Thickness | 10.000 MM |
| Nominal Thickness | 0.394 IN |
| Hat Finish | Painted |
| Overall Height | 1.972 IN |
| Overall Height | 50.100 MM |
| Outside Diameter | 296.000 MM |
| Outside Diameter | 11.654 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Stud/Lug Hole Diameter | 0.638 IN |
| Stud/Lug Hole Diameter | 16.200 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Center Hole Diameter | 3.110 IN |
| Center Hole Diameter | 79.000 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Solid |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890962571 |
CENTRIC 125.34146 Cross References
| Brand | Part Number |
|---|---|
| BREMBO | 08.D180.11 |
| MAGMA PRODUCTS | PSR123096 |
| N/A | 15707, 90032012, 15707G, 34219808513, 34219811540, 121.34146, 980969P |
| RAYBESTOS | 980969, 980969FZN, 980969R |
| Raybestos Brakes | 980969FZN, 980969R, 980969 |
CENTRIC 125.34146 Fits Vehicles
- Mini Cooper Countryman (2013-2016)
- Mini Cooper Paceman (2013-2016)
