CENTRIC 122.33020 Part Description
Manufacturer
Product Description

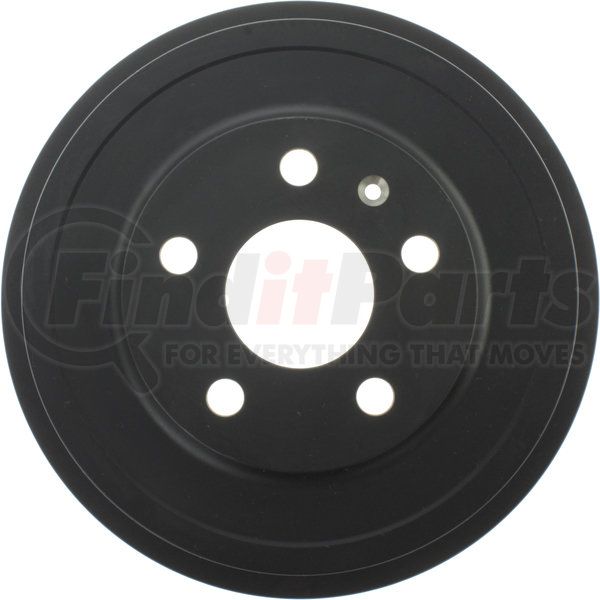

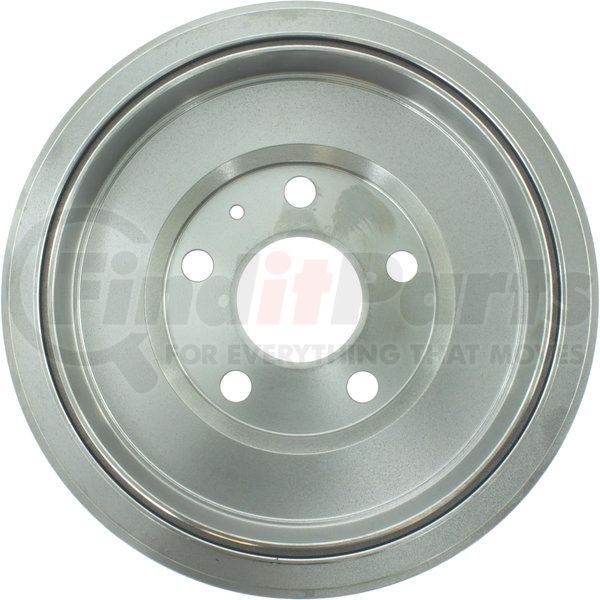

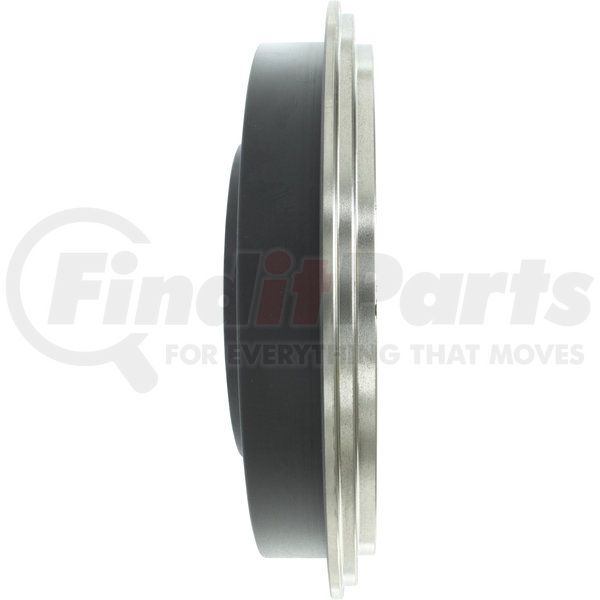

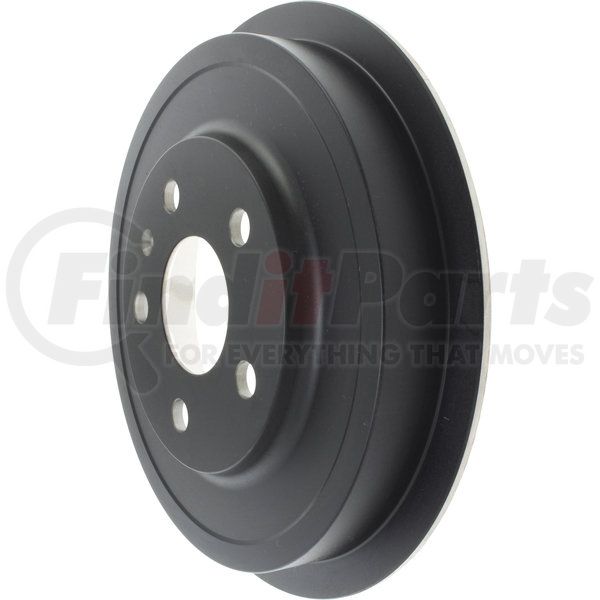

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance
CENTRIC 122.33020 Specifications
Product Attributes
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Kgs | 7.318 |
| Weight [cntrc] Lbs | 16.100 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 112.000 |
| Bolt Circle Diameter [cntrc] In | 4.409 |
| Hub Hole / Register [cntrc] Mm | 64.800 |
| Hub Hole / Register [cntrc] In | 2.551 |
| Height [cntrc] Mm | 64.700 |
| Height [cntrc] In | 2.547 |
| Friction Surface Width [cntrc] Mm | 38.800 |
| Friction Surface Width [cntrc] In | 1.528 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 231.400 MM |
| Maximum Brake Diameter (Discard) | 9.110 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 290.000 MM |
| Outside Diameter | 11.417 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 15.750 MM |
| Mounting Hole Diameter | 0.620 IN |
| Nominal Drum Diameter | 229.800 MM |
| Nominal Drum Diameter | 9.047 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890719458 |
CENTRIC 122.33020 Cross References
CENTRIC 122.33020 Fits Vehicles
- Volkswagen Jetta (2011-2012)
