(888) 312-8812 Login SignupCENTRIC 130.33200 Centric Premium Brake Master Cylinder
Tap to view 6 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 130.33200 Part Description
Manufacturer
Product Description

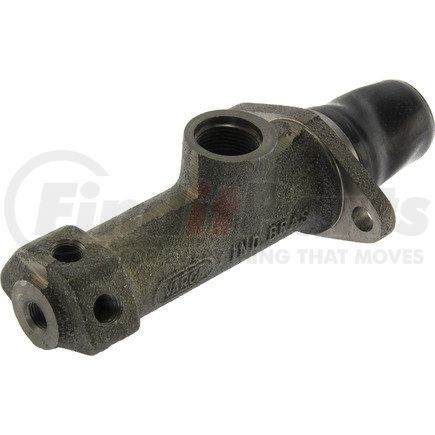

Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
CENTRIC 130.33200 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Boss, Nipple Or Port: Front, Top [cntrc] | M10-1.00 bbl |
| Push Rod: Length / Depth [cntrc] In | 1.13 |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Boss, Nipple Or Port: Front, Right: #a [cntrc] | M10-1.00 bbl |
| Publication Bore [cntrc] | 22mm |
| Weight [cntrc] Kgs | 1 |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M10-1.00 |
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Weight [cntrc] Lbs | 2.2 |
| Boss, Nipple Or Port: Front, End [cntrc] | M10-1.00 open |
| Brake Pressure Switch Required | Yes |
| Brake Pressure Switch Quantity | 1 |
| Brake Pressure Switch(s) Included | No |
| Primary Outlet Flare Type | Bubble |
| Secondary Outlet Flare Type | Bubble |
| Primary Bore Diameter | 22.000 MM |
| Primary Bore Diameter | 0.866 IN |
| Reservoir Style | Remote |
| Primary Outlet Thread Size | M10-1.00 |
| Secondary Outlet Thread Size | M10-1.00 |
| Bore Size | 0.866 IN |
| Bore Size | 22.000 MM |
| Bore Type | Straight |
| Primary Outlet Thread Pitch | 1.00 MM |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Mounting Bracket Included | No |
| Port Quantity | 4 |
| Bleeder Hoses Included | No |
| Secondary Outlet Thread Diameter | 10.000 MM |
| Primary Outlet Thread Diameter | 10.000 MM |
| Reservoir Included | No |
| Push Rod Included | No |
| Master Cylinder Material | Cast Iron |
| Master Cylinder Cap Included | No |
| Brake Booster Included | No |
| Master Cylinder Bore Diameter | 0.866 IN |
| Master Cylinder Bore Diameter | 22.000 MM |
| Mounting Hole Quantity | 2 |
| Gasket Or Seal Included | No |
| Mounting Hardware Included | No |
| Dust Boot Included | Yes |
| Reservoir Material | Plastic |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890000617 |
CENTRIC 130.33200 Cross References
| Brand | Part Number |
|---|---|
| N/A | 35124, 0728011, 230233200, 2302-33200, 6616040, RCCM2294.6, M20200, E99031, CM1323, 211611011J, 65-M35124, MC35124, 11562 |
CENTRIC 130.33200 Fits Vehicles
- Volkswagen Transporter (1955-1966)
