CENTRIC 120.40078 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

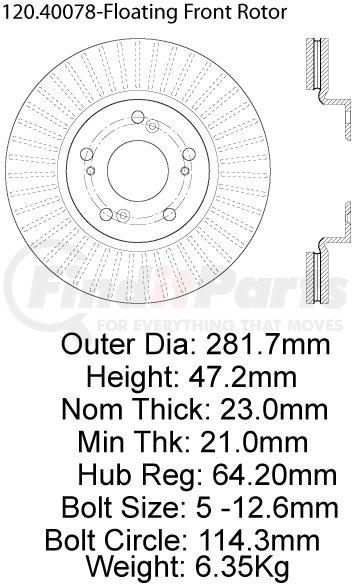

CENTRIC 120.40078 Specifications
Product Attributes
| Hat Id [cntrc] Mm | 141.400 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] In | 5.567 |
| Misc Holes [cntrc] | 4 |
| Disc Mounting [cntrc] | Floating |
| Stud/Lug Hole Diameter | 0.484 IN |
| Stud/Lug Hole Diameter | 12.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Center Hole Diameter | 2.528 IN |
| Center Hole Diameter | 64.200 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 11.090 IN |
| Outside Diameter | 281.700 MM |
| Overall Height | 47.300 MM |
| Overall Height | 1.862 IN |
| Hat Finish | Painted |
| Nominal Thickness | 0.906 IN |
| Nominal Thickness | 23.000 MM |
| Discard Thickness | 21.000 MM |
| Discard Thickness | 0.827 IN |
CENTRIC 120.40078 Cross References
CENTRIC 120.40078 Fits Vehicles
- Acura ILX (2013)
- Honda Civic (2012-2015, 2023)
