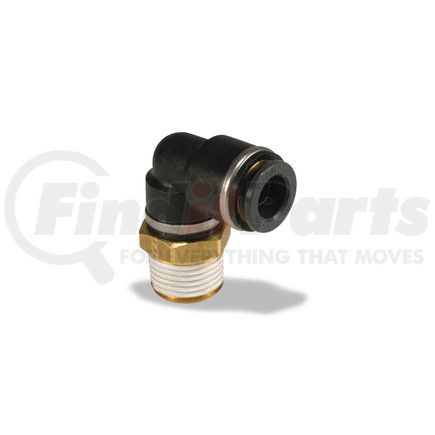

(888) 312-8812 Login SignupVELVAC 16288 Push-Lock Air Brake Fitting, 90° Male Swivel Elbow, 1/2" x 1/2"
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
VELVAC 16288 Part Description
Manufacturer
Item Overview:
- Designed for use with SAE J844 nylon tubing.
- DOT 49 CFR 571.106 compliant.
- High strength composite fittings offer weight savings over all brass style fittings—currently being used by many OE vehicle manufacturers.
- Fittings meet performance requirements as stated in SAE J1131.
- Operating temperatures from -45° F to +140° F.
- Maximum operating pressure 145 psi.
- Elbows and male branch fittings have built-in swivel feature for easy positioning.
- Engineered tube retention system and seal design offers superior holding and side load retention capabilities.
- Positive release bushing for easy insertion and removal of tubing.
- Thread sealant applied to all male pipe threads to reduce installation time and expense.
- Composite body with brass pipe fitting end.
Specifications:
| Product | Push Lock Air Brake Fittings |
| Type | 90° Male Swivel Elbows |
| Material | Composite |
| Tube Size | 1/2" |
| Pipe Size | 1/2" |
VELVAC 16288 Cross References
| Brand | Part Number |
|---|---|
| VEL016288 | |
| BWP-NSI | M-4597 |
| CMI | CDOT14699-8-8 |
| COUPLINGS | PP69SFF |
| DYNACRAFT | D2030-8951 |
| FAIRVIEW | PC1469SW-8D |
| HEBCO | S269PMT-8-8 |
| IMPERIAL | 91236 |
| NORGREN | 95 4114 30 |
| O'BRIEN BRASS | 2469X8X8 |
| PARKER | W169PL-8-8, 269PM-8-8 |
| PHILLIPS | 12-9410 |
| SLOAN | S269PMT-8-8 |
| SMC | KVL13-37S |
| TECTRAN | PL1369-8D, PL1315-8D, QL1369-8D |
| TRAMEC | KV2L13-37S |
| VIPAR | 2469X8X8 |
| WEATHERHEAD | 1169X8X8S |
VELVAC 16288 Customer Reviews
No reviews yet
Be the first to review this product!
VELVAC 16288 Manufacturer Information
Velvac® is a leading manufacturer of air brake and valve components for heavy duty trucks. Founded in 1934 as Vacuum Power Equipment Company, the company has grown tremendously over the years with new products included in its catalog, such as mirrors, cameras and vision systems, fuel system products, and accessories. Six years after Vacuum Power Equipment Company opened its doors for business, its name was changed to "Velvac" because of the popularity of its Velvet Vacuum Brakes brand. Today, Velvac continues to expand and upgrade its broad product categories to meet its customers' increasing demands. Its main headquarters is in New Berlin, WI, and its primary manufacturing facility is in Reynosa, Mexico.
