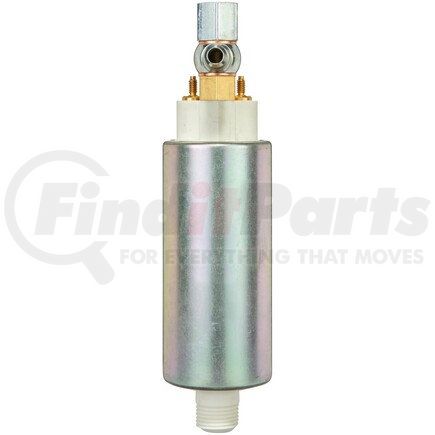

(888) 312-8812 Login SignupSPECTRA PREMIUM SP1188 Electric Fuel Pump
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
SPECTRA PREMIUM SP1188 Part Description
Manufacturer
Product Description
Electric Fuel Pump
Application Summary
86-85 Isuzu Impulse (L4 1.9L); 84-83 Isuzu Impulse All; 83-80 Nissan 200SX All; 78-75 Nissan 280Z All; 83-79 Nissan 280ZX All; 81 Nissan 810 (L6 2.4L); 80-77 Nissan 810 All; 83-81 Nissan Maxima (L6 2.4L); 84 Nissan Maxima All; 86-84 Nissan Stanza (L4 2.0L); 88-87 Nissan Stanza All; 75 Opel 1900 All; 75 Opel Manta All; 84 Subaru Brat All; 89-83 Subaru GL (H4 1.8L); 89-88 Subaru GL-10 All; 90 Subaru Loyale All; 89-86 Subaru RX All; 90 Subaru XT (H4 1.8L); 89-85 Subaru XT All; 91 Subaru XT All
electric fuel pump, fuel pump, fuel pump assembly, gas, pump, fuel
86-83 ISUZU IMPULSE (L4-1.9L); 88-84 For Nissan STANZA (L4-2.0L); 86 For Nissan 720 (L4-2.4L); 84-81 For Nissan MAXIMA (L6-2.4L); 83-82 For Nissan 200SX (L4-2.2L); 81-80 For Nissan 200SX (L4-2.0L); 83-79 For Nissan 280ZX (L6-2.8L); 81-77 For Nissan 810 (L6-2.4L); 78-75 For Nissan 280Z (L6-2.8L); 75 OPEL MANTA (L4-1.9L); 75 OPEL 1900 (L4-1.9L); 91-85 For Subaru XT (H4-1.8L); 91 For Subaru XT (H6-2.7L); 89-88 For Subaru XT (H6-2.7L); 90 For Subaru LOYALE (H4-1.8L); 89-86 For Subaru RX (H4-1.8L); 84 For Subaru BRAT (H4-1.8L); 89-83 For Subaru GL SERIES (H4-1.8L)
SPECTRA PREMIUM SP1188 Specifications
Product Attributes
| California_prop 65 Message | Y |
| Fuel Sending Unit Included | No |
| Fuel Type | Gas |
| Internal Or External | External |
| Regulator Included | No |
| Terminal Type | Screw |

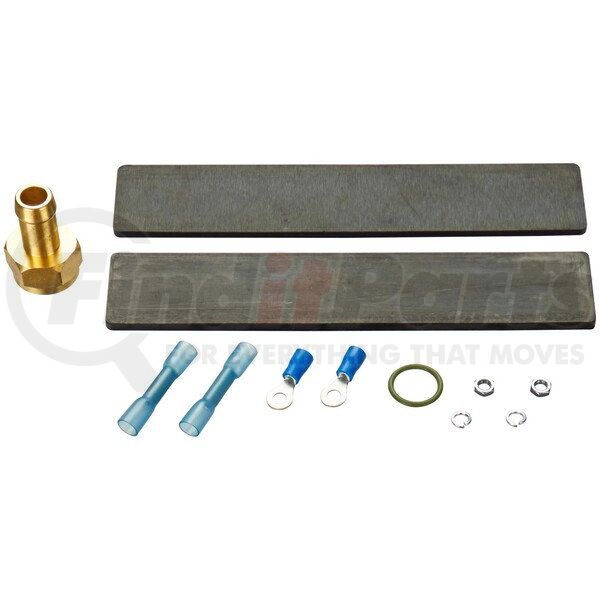

| Mounting Hardware Included | Yes |
| Universal Or Specific Fit | Specific |
| Gasket Or Seal Included | No |
| Seal And Lock Ring Included | No |
| Maximum Flow Rating | 51.1 GPH |
| Strainer Included | No |
| Inlet Type | Hose |
| Outlet Type | Hose |
| Outlet Quantity | 1 |
| Minimum Pressure | 72.5 PSI |
| Pump Design | Rollervane |
| Mounting Bracket Included | No |
| Maximum Pressure | 116.0 PSI |
| Inlet Outside Diameter | 0.5 IN |
| Outlet Outside Diameter | 0.3125 IN |
| Voltage | 12.0 2H |
| Maximum Amperage Draw | 6.0 68 |
| Minimum Flow Rating | 42.0 GPH |
| Average Flow Rating | 49.0 GPH |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Lifetime |
| Warranty Special UOM | LF |
| Core Class | FP |
| Canadian Harmonizing Tariff Code | 8413300090 |
| UPC | 00671607956870 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
SPECTRA PREMIUM SP1188 Cross References
SPECTRA PREMIUM SP1188 Fits Vehicles
- Nissan Maxima (1981-1984)
- Nissan Stanza (1984-1988)
- Nissan 810 (1977-1981)
- Nissan 280ZX (1979-1983)
- Nissan 280Z (1975-1978)
- Nissan 200SX (1980-1983)
- Isuzu Impulse (1983-1986)
- Opel Manta (1975)
- Opel 1900 (1975)
- Subaru XT (1985-1991)
- Subaru RX (1986-1989)
- Subaru Loyale (1990)
- Subaru GL-10 (1988-1989)
- Subaru GL (1983-1989)
- Subaru Brat (1984)
SPECTRA PREMIUM SP1188 Customer Reviews
No reviews yet
Be the first to review this product!
SPECTRA PREMIUM SP1188 Manufacturer Information
When it comes to engine management, heavy-duty cooling, undercar, and classic car products, Spectra Premium has always been the Premium Choice since 1989. In the last 30 years, Spectra Premium has solidified its position as a world leader in the production of steel fuel tanks. Guided by the company's three core values—trust, collaboration, and creativity—its Mobility Solutions division continues to develop, manufacture, and sell advanced technologies that support sustainable mobility. Spectra's passion for innovation is evident from the early phases of the design process to the final stages of product manufacturing and testing. With decades of manufacturing expertise, OE design, and state-of-the-art technologies, Spectra Premium's automotive sensors, emission control components, radiators, air coolers, body panels, fuel tanks, and many other products are definitely built to last.
