DELPHI XS10280 Part Description
Manufacturer
Product Description

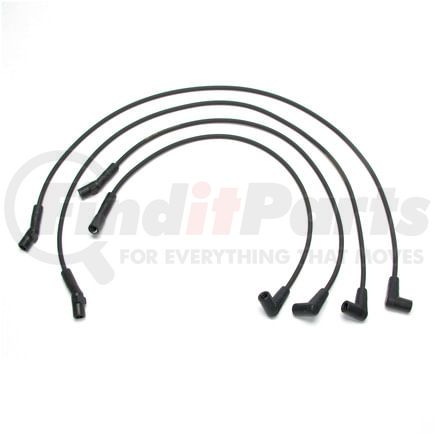

Spark Plug Wire Set
Features & Benefits
- Pregreased spark plug boots for quicker installation
- OE boots, terminals and lead lengths for no hassle installation
- OE quality replacement parts for the right fit, form and function
- We back our ignition parts with proven materials, such as high quality stainless steel and insulating rubber
DELPHI XS10280 Specifications
Product Attributes
| Package Contents | Spark Plug Wire Set, Instruction Sheet |
| Composite High Temp | Composite High Temperature |
| Outside Diameter | 7.0 MM |
| Core Material | Composite High Temperature Core |
| Universal Or Specific Fit | Specific |
| Insulation Outside Diameter | 0.278 IN |
| Insulation Outside Diameter | 7.0 MM |
| Spark Plug End Boot Degree | 45.0 DD |
| Distributor Coil End Boot Degree | 90 DD |
| Distributor Coil End Boot Type | Solid |
| Insulation Color | Black |
| Insulation Material | Silicone |
| Wire Separators Included | No |
| Grade Type | Standard Replacement |
| Spark Plug Boot Material | High Temp Silicone Boot |
| Boot Type | Solid |
| Distributor Coil End Terminal Type | Standard Crimped Terminal |
| Spark Plug End Terminal Type | Standard Crimped Terminal |
| Spark Plug End Boot Color | Black |
| Spark Plug End Boot Quantity Angled | 4 |
| Spark Plug End Boot Quantity Straight | 0 |
| 8979 | 26 IN |
| 8980 | 28 IN |
| 8981 | 40 IN |
| 8982 | 40 IN |
| 8987 | 12 IN |
| Wire 1 Length | 661 MM |
| Wire 2 Length | 712 MM |
| Wire 3 Length | 1016 MM |
| Wire 4 Length | 1016 MM |
| Coil Wire Length | 305 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8544300000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8544300000 |
| Country of Origin (Primary) | MX |
| UPC | 00689604137055 |
| VMRS Code | 033003017 |
| UNSPSC | 26121852 |
DELPHI XS10280 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 704J, 9704J |
| Airtex | 2X1016 |
| Autolite | 86054 |
| Belden | 700257, 700378, 780068 |
| BorgWarner | CH74114, CH74114SP |
| Bosch | 09304, 09308 |
| Champion Automotive | 780068 |
| DENSO Auto Parts | 671-4033 |
| General Motors | 12073932 |
| Kem | 11-423S, 11-485, 11-485M |
| N/A | 6714033, 35PF77514, 11423S, 11485, 11485M, RCGMX021, RCGMX044, RCGMZ031, 900-1586 |
| NGK | 51214, 51261, 51331, RC-GMX021, RC-GMX044, RC-GMZ031 |
| NGK SPARK PLUGS | RC-GMX044, 51261 |
| PRENCO | 35-PF77514 |
| Powerpath | 700374 |
| Standard Motor Products | 7416, 7443 |
| Wells | QW854 |
DELPHI XS10280 Fits Vehicles
- Pontiac Phoenix (1984)
- Pontiac Grand Am (1985-1986)
- Pontiac Firebird (1984-1986)
- Pontiac Fiero (1984-1986)
- Pontiac 6000 (1984-1986)
- Oldsmobile Omega (1984)
- Oldsmobile Cutlass Ciera (1984-1986)
- Oldsmobile Calais (1985-1986)
- GMC Safari (1985-1986)
- GMC S15 (1985-1987)
- GMC S15 Jimmy (1985-1987)
- Chevrolet S10 (1985-1987)
- Chevrolet S10 Blazer (1985-1987)
- Chevrolet LLV (1987)
- Chevrolet Citation II (1984-1985)
- Chevrolet Celebrity (1984-1986)
- Chevrolet Camaro (1984-1986)
- Chevrolet Astro (1985-1986)
- Buick Somerset Regal (1985)
- Buick Somerset (1986)
- Buick Skylark (1984-1986)
- Buick Century (1984-1986)
