(888) 312-8812 Login SignupDELPHI HP10097 Fuel Pump Hanger Assembly
MSRP: $411.99
$24449
Save $167.50
Limited availability at this price!
In Stock
Get it by Thursday, Feb 26
DELPHI HP10097 Part Description
Manufacturer
Product Description

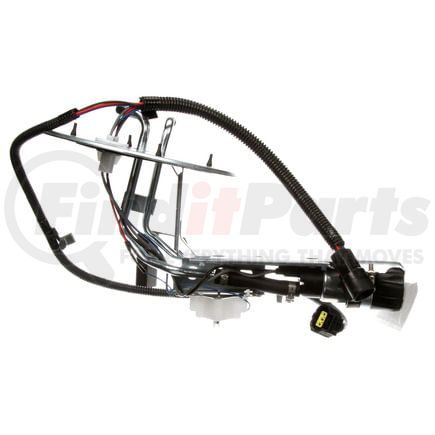

Fuel Pump Hanger Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Metal tubes in Delphi hangers are routed so as to not contact the tank at any point eliminating noise and vibration during vehicle operation
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Lower failure rates due to its innovative design and durability
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
DELPHI HP10097 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, (6) Bolts, (6) Washers, (2) Retainer Clips, Instruction Sheet |
| Item Grade | Standard Replacement |
| System Pressure | 44 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12.0 2H |
| Fuel Type | Gas |
| Maximum Pressure | 73.0 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 7 |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 16.0 82 |
| Resistance Ohms Full | 160.0 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 5.0 68 |
| Average Flow Rating | 26.0 GPH |
| Material | Metal |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Connector Shape | Round |
| Lock Ring Included | No |
| Connector Gender | Female |
| Inlet Quantity | 1 |
| Fuel Pump Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 44 PS |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | MX |
| UPC | 00689604194348 |
| VMRS Code | 044003257 |
| UNSPSC | 40151532 |
DELPHI HP10097 Cross References
| Brand | Part Number |
|---|---|
| Airtex | E2222S, E2471, E2272S |
| AutoZone | DHP10097 |
| Bosch | 69131 |
| CARTER FUEL PUMPS | P74856S |
| Carter | P74856S, P74172 |
| DENSO Auto Parts | 951-0008, 953-4089 |
| EVO Driveline | AFS0111S, AFS0887P, RE0111S, RE0887P |
| Ford | F7AU 9H307-AE, F7AZ 9H307-AE |
| GMB | 525-6710 |
| Motorcraft | PFS-447 |
| N/A | 9534089, PFS447, F7AU9H307AE, F7AZ9H307AE, USEP2163H, A30211, C0063H, USEP2222S, 4011143 |
| Precision Fuel | A27078, E16006 |
| Spectra Premium | SP2222H, SP1113 |
DELPHI HP10097 Fits Vehicles
- Mercury Grand Marquis (1997)
- Lincoln Town Car (1997)
- Ford Crown Victoria (1997)
