(888) 312-8812 Login SignupDELPHI FG0482 Fuel Pump Module Assembly
MSRP: $375.48
$18649
Save $188.99
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 25
DELPHI FG0482 Part Description
Manufacturer
Product Description

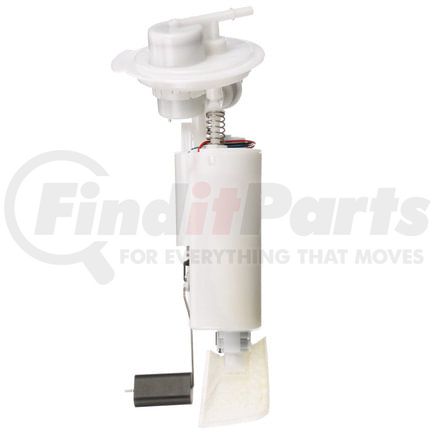

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0482 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Vapor Pressure Sensor | No |
| System Pressure | 58 psi |
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seals, Instruction Sheet |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 1050 82 |
| Resistance Ohms Full | 70 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 13 68 |
| Average Flow Rating | 23 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 58 PS |
| Wire Harness Included | No |
| Pump Design | G-Rotor |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 9026102080 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604187777 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0482 Cross References
| Brand | Part Number |
|---|---|
| AUTOBEST | F3183A |
| Airtex | E7172M |
| AutoZone | DFG0482 |
| Bosch | 67681 |
| CARTER FUEL PUMPS | P76061M |
| Carquest | M2510481 |
| Carter | P76061M |
| Chrysler | 5127562AD, RL127562AD, 5127 562AC |
| DENSO | 953-3041 |
| DENSO Auto Parts | 953-3041 |
| EVO Driveline | AFS0849S, RE0849S |
| GMB | 520-2490 |
| N/A | 9533041, 5127562AC, USEP7172M, F3183A, 402-P7172M, C0472M, 4010451 |
| Precision Fuel | A27022 |
| Spectra Premium | SP7172M |
| TYC | 150104-A |
| URO | CY0517337 |
| Walbro | TU160 |
DELPHI FG0482 Fits Vehicles
- Dodge Caravan (2004-2007)
- Dodge Grand Caravan (2004-2005)
- Chrysler Town & Country (2004-2007)
