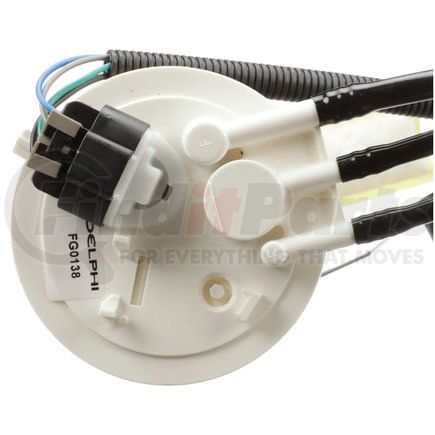

(888) 312-8812 Login SignupDELPHI FG0138 Fuel Pump Module Assembly
MSRP: $470.87
$14899
Save $321.88
Limited availability at this price!
In Stock
Get it by Thursday, Feb 26
DELPHI FG0138 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0138 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Wire Harness, Instruction Sheet |
| Fuel Level Sender Assembly Included | Yes |
| System Pressure | 44 psi |
| Vapor Pressure Sensor | No |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 13 2H |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 109 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Female Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 0.1 82 |
| Resistance Ohms Full | 90 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 7 68 |
| Average Flow Rating | 16 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Wire Quantity | 4 |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Male |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 44 PS |
| Wire Harness Included | Yes |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604060759 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0138 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | MU1610, MU214, MU4, 43-900, 43-901 |
| AUTOBEST | F2929A, F2928A, F2932A |
| Airtex | E3906, E3918M, E3921M, E3313, E3917M |
| AutoZone | FFG0138 |
| Bosch | 67327, 69252 |
| CARTER FUEL PUMPS | P74826M |
| Carter | P74826M, P74129 |
| DENSO | 953-5002 |
| DENSO Auto Parts | 953-5002 |
| EVO Driveline | AFS0216P, RE0233S, RE0234S, RE0216P |
| GMB | 530-2011 |
| General Motors | 25028220, 19153724, 25028581, 25163219, 25322533 |
| Hygrade Tuneup | EFP197 |
| Kem | EFP899M, EFP900M, EFP901M |
| Magneti Marelli | 1AMFP00115 |
| Master Parts Division | E3313, E3906 |
| N/A | 9535002, 43900, 43901, USEP3918M, D0327M, 4010031, 4010816, 4010039 |
| Precision Fuel | A43007, E16033 |
| Spectra Premium | SP6214M, SP133 |
DELPHI FG0138 Fits Vehicles
- Pontiac Sunbird (1992-1994)
- Pontiac Grand Am (1992-1995)
- Oldsmobile Achieva (1992-1995)
- Chevrolet Corsica (1993-1996)
- Chevrolet Cavalier (1992-1994)
- Chevrolet Beretta (1993-1996)
- Buick Skylark (1992-1995)
