(888) 312-8812 Login SignupCENTRIC 123.61052 C-Tek Standard Brake Drum
Tap to view 4 more
$8049
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Mar 19
CENTRIC 123.61052 Part Description
Manufacturer
Product Description

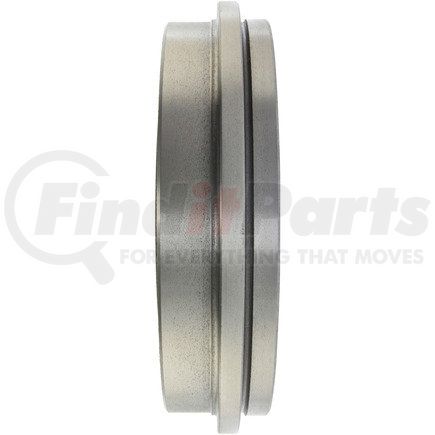

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.61052 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.273 |
| Weight [cntrc] Lbs | 13.800 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 107.950 |
| Bolt Circle Diameter [cntrc] In | 4.250 |
| Hub Hole / Register [cntrc] Mm | 63.246 |
| Hub Hole / Register [cntrc] In | 2.490 |
| Height [cntrc] Mm | 65.888 |
| Height [cntrc] In | 2.594 |
| Friction Surface Width [cntrc] Mm | 49.600 |
| Friction Surface Width [cntrc] In | 1.953 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 230.200 MM |
| Maximum Brake Diameter (Discard) | 9.063 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 271.000 MM |
| Outside Diameter | 10.669 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.800 MM |
| Mounting Hole Diameter | 0.543 IN |
| Nominal Drum Diameter | 228.000 MM |
| Nominal Drum Diameter | 8.976 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890915003 |
CENTRIC 123.61052 Cross References
CENTRIC 123.61052 Fits Vehicles
- Ford Focus (2012-2018)
