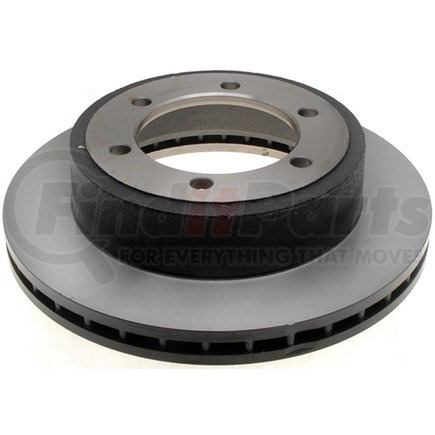

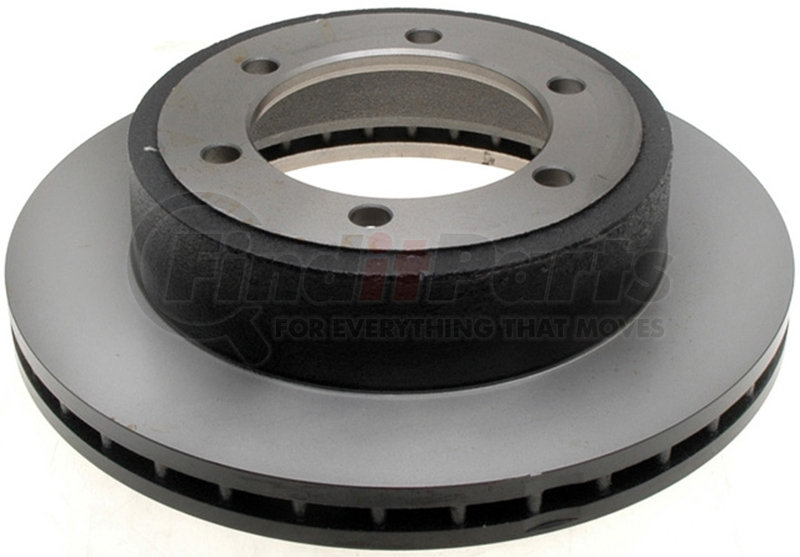

(888) 312-8812 Login SignupACDELCO 18A810 Rear Disc Brake Rotor Assembly
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
ACDELCO 18A810 Part Description
ROTOR ASMRR BRK
ACDELCO 18A810 Specifications
Product Attributes
| Discard Thickness | 1.225 IN |
| Thickness (in) | 1.345 In |
| Nominal Thickness | 1.345 IN |
| Pad Contact Surface Width | 2.3 IN |
| Height (in) | 3.8 in |
| Center Bore Diameter (in) | 5.4in |
| Number Of Lugs | 6 |
| Bolt Hole Quantity | 6 |
| Bolt Circle Diameter (in) | 6.8 in |
| Outside Diameter | 14.75 IN |
| Width (in) | 16.1 in |
| Length (In) | 16.1 IN |
| Nominal Thickness | 34.15 MM |
| Thickness (mm) | 34.163 mm |
| Discard Thickness | 31.1 MM |
| Weight | 36 lb |
| Pad Contact Surface Width | 58.7 MM |
| Height (mm) | 96.5 mm |
| Outside Diameter | 374.65 MM |
| Center Bore Diameter (mm) | 137.3mm |
| Mounting Bolt Hole Diameter | 171.45 MM |
| Max Bolt Hole Diameter (mm) | 137.41mm |
| Bolt Circle Diameter (mm) | 171.5 mm |
| Pitch Circle Diameter (mm) | 171.45mm |
| Center Hole Diameter | 5.404 IN |
| Overall Rotor Diameter (mm) | 374.65mm |
| Mounting Bolt Hole Diameter | 6.75 IN |
| Product Description | ACDelco Gold (Professional) Black Hat Disc Brake Rotors are a high quality alternative to Original Equipment (OE) parts. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 1 | Brake pedal pulsation (not to be confused with normal ABS operation). |
| Signs of Wear & Troubleshooting - Section 1 - Header | Brake rotor signs of wear include: |
| Good Maintenance Practices - Section 1 - Bullet 2 | Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required. |
| Material | Cast Iron |
| Good Maintenance Practices - Section 1 - Bullet 1 | Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations. |
| Good Maintenance Practices - Section 1 - Bullet 4 | Check the thickness of your brake pads. |
| FAQ - Question 1 | Does ACDelco offer other grades of brake rotors? |
| Construction | Full Cast |
| Good Maintenance Practices - Section 1 - Bullet 3 | Inspect the brake lines for rust, punctures, or visible leaks (You may be able to do this, but consult a qualified technician if necessary). |
| Good Maintenance Practices - Section 2 - Bullet 2 | Inspection of brake lining and pads for wear or contamination by brake fluid or grease. |
| Good Maintenance Practices - Section 2 - Bullet 1 | Inspection of the brake hoses for brittleness or cracking. |
| Good Maintenance Practices - Section 2 - Bullet 3 | Inspection of wheel bearings and grease seals. |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 3 | Low brake pedal height. |
| Features & Benefits - Bullet 3 | Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models |
| Slotted | No |
| Programming Required | No |
| Includes ABS Sensor Ring | No |
| Good Maintenance Practices - Section 2 - Bullet 4 | Parking brake adjustments (as needed). |
| Features & Benefits - Bullet 2 | Premium aftermarket replacement part |
| Grade Type | Regular |
| Surface Type | Smooth |
| Features & Benefits - Bullet 1 | Some ACDelco Gold parts may have formerly appeared as ACDelco Professional |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 2 | Squealing or grinding noises. |
| Good Maintenance Practices - Section 1 - Header | The following inspections and maintenance procedures can help prevent potential brake problems: |
| Good Maintenance Practices - Section 2 - Header | The following should be conducted by a qualified technician: |
| Disc Finish | Turned |
| Hat Finish | Turned |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 4 | Vehicle pulls to the left or right when brakes are applied. |
| Solid Or Vented Type Rotor | Vented |
| Disc Brake Rotor Construction | Vented |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 5 | Visible ridges or deep grooves on the rotor surface. |
| Rust Resistant Coating | Yes |
| FAQ - Answer 1 | Yes, ACDelco also offers GM OE brake rotor and Advantage brake rotors. |
| Mounting Bolt Hole Circle Diameter | 171.45 MM |
| Mounting Bolt Hole Quantity | 6 |
| Mounting Bolt Hole Circle Diameter | 6.75 IN |
| Center Hole Diameter | 137.25 MM |
| Overall Height | 3.8 IN |
| Overall Height | 96.5 MM |
| Stud/Lug Hole Quantity | 6 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| ABS Tone Ring Included | No |
Additional Information
| Warranty Special | 24 Months/Unlimited Miles Limited Warranty (Parts Only). Please see ACDelco.com for more details|24 Months/40,000 Kilometers Limited Warranty (Parts Only). Please see ACDelcocanada.com for more details |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Country of Origin (Primary) | CA |
| Country of Origin 2 | US |
| Warranty Special UOM | TX |
| UPC | 00036666962246 |
ACDELCO 18A810 Cross References
| Brand | Part Number |
|---|---|
| WAGNER | BD125358 |
ACDELCO 18A810 Fits Vehicles
- GMC C5000 (1983-1989)
- GMC P4500 (1988-1990)
- Chevrolet C50 (1983-1990)
- Chevrolet C5500 Kodiak (1990)
- GMC C6000 (1988-1989)
- GMC C7000 (1988-1989)
- Chevrolet C70 (1988-1989)
- Chevrolet C60 (1988-1989)
- GMC B6000 (1980-1991)
- Chevrolet B60 (1980-1991)
