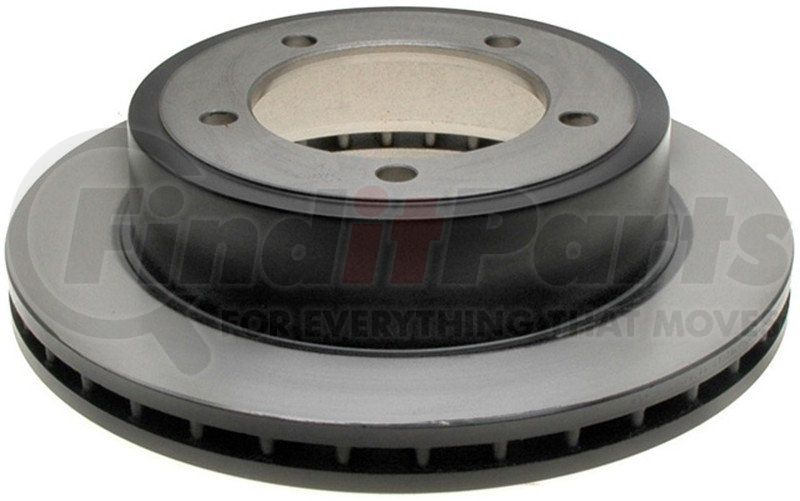

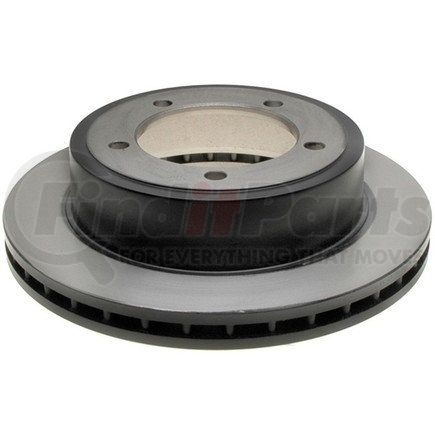

(888) 312-8812 Login SignupACDELCO 18A177 Front Disc Brake Rotor Assembly
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
ACDELCO 18A177 Part Description
ROTOR ASM FRT BRK
ACDELCO 18A177 Specifications
Product Attributes
| Discard Thickness | 1.225 IN |
| Nominal Thickness | 1.345 IN |
| Pad Contact Surface Width | 2.3 IN |
| Height (in) | 3.8 in |
| Bolt Hole Quantity | 5 |
| Center Bore Diameter (in) | 5.4in |
| Bolt Circle Diameter (in) | 6.8 in |
| Center Hole Diameter | 5.404 IN |
| Discard Thickness | 31.1 MM |
| Outside Diameter | 14.75 IN |
| Pad Contact Surface Width | 58.7 MM |
| Height (mm) | 96.5 mm |
| Center Bore Diameter (mm) | 137.3mm |
| Bolt Circle Diameter (mm) | 171.5 mm |
| Outside Diameter | 374.65 MM |
| Overall Rotor Diameter (mm) | 374.65mm |
| Nominal Thickness | 34.15 MM |
| Product Description | ACDelco Gold (Professional) Black Hat Disc Brake Rotors are a high quality alternative to Original Equipment (OE) parts. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Material | Cast Iron |
| Construction | Full Cast |
| Disc Finish | Ground |
| Features & Benefits - Bullet 3 | Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models |
| Rust Resistant Coating | No |
| Slotted | No |
| Programming Required | No |
| Features & Benefits - Bullet 2 | Premium aftermarket replacement part |
| Grade Type | Regular |
| Surface Type | Smooth |
| Features & Benefits - Bullet 1 | Some ACDelco Gold parts may have formerly appeared as ACDelco Professional |
| Hat Finish | Turned |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Diameter | 16.75 MM |
| Mounting Bolt Hole Diameter | 0.66 IN |
| Mounting Bolt Hole Circle Diameter | 171.45 MM |
| Mounting Bolt Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 6.75 IN |
| Center Hole Diameter | 137.25 MM |
| Overall Height | 3.8 IN |
| Overall Height | 96.5 MM |
| Stud/Lug Hole Quantity | 5 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| ABS Tone Ring Included | No |
Additional Information
| Warranty Special | 24 Months/Unlimited Miles Limited Warranty (Parts Only). Please see ACDelco.com for more details|36 Months/60,000 Kilometers Limited Warranty (Parts Only). Please see ACDelcocanada.com for more details |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Country of Origin (Primary) | CN |
| Warranty Special UOM | TX |
| UPC | 00707773320815 |
ACDELCO 18A177 Cross References
| Brand | Part Number |
|---|---|
| WAGNER | BD125088 |
ACDELCO 18A177 Fits Vehicles
- GMC P4500 (1988-1990)
- GMC C7500 Topkick (1997-2002)
- GMC C6000 Topkick (1990-1996)
- GMC C5000 Topkick (1990-1991)
- GMC C7000 Topkick (1990-1996)
- Chevrolet C60 (1983-1990)
- Chevrolet C70 (1983-1990)
- GMC T6500 (1997-2002)
- GMC C5000 (1983-1987, 1990)
- GMC B6000 (1980-1991)
- Chevrolet T7500 (1997-2002)
- Chevrolet T6500 (1997-2002)
- Isuzu FTR (1996-2002)
- Isuzu FSR (1997-2002)
- Isuzu FVR (1997-2002)
- GMC C6500 Topkick (1997-2002)
- Chevrolet C6500 Kodiak (1997-2002)
- GMC C6000 (1983-1990)
- GMC C7000 (1983-1990)
- GMC P6500 (1992-1996)
- Chevrolet P6000 (1992-1996)
- Chevrolet B7 (1993-2002)
- GMC B7 (1993-2000)
- GMC T7500 (1997-2002)
- Chevrolet B60 (1980-1991)
- Chevrolet C50 (1983-1987, 1990)
- Chevrolet C7500 Kodiak (1997-2002)
- Chevrolet C60 Kodiak (1990-1996)
- Chevrolet C70 Kodiak (1990-1996)
- Chevrolet C5500 Kodiak (1990-1991)
