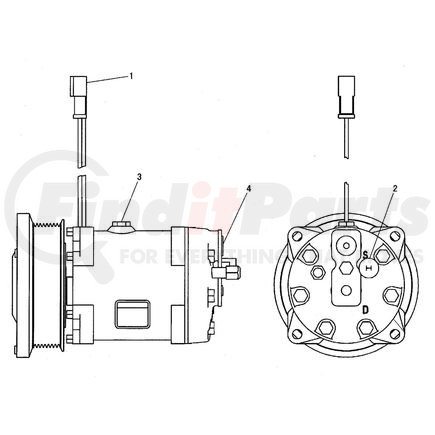

CATERPILLAR 2180324 Part Description
Manufacturer
Cat® Refrigerant Compressor (24 V Clutch)
UNITS:
- US
- METRIC
Description:
The HVAC system provides heating, cooling and filtering of fresh and/or recirculating air in the operator compartment of a Cat machine. Cat compressors pressurize fluid to maintain flow rate and increase pressure required for the application.
Attributes:
• 7 cylinder compressor
• Cast aluminum body
• Clutch voltage: 24 V
• Pulley type: PV-8
• Refrigerant compatibility: R134a
• Includes pigtail harness with 2 pin DT connector
• Recommended RPM: 2500±200
• Max RPM: 4000
• For use only on systems which provide a low pressure shut-off switch in the high pressure side
Application:
Compressor used to circulate refrigerant throughout the HVAC system in Cat heavy-duty equipment. Consult your owner's manual or contact your local Cat Dealer for more information.
*Warning: This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. - Bore Diameter (in): 1.2
- Bore Diameter (mm): 29.3
- Connector Type: 2 Pin DT
- Length (in): 1.3 (Stroke)
- Length (mm): 32.8 (Stroke)
- Material Description: Cast Aluminum
- Outside Diameter (in): 5.4
- Outside Diameter (mm): 137
- Overall Length (in): 9.6
- Overall Length (mm): 244.5
- Pins: 2
- Voltage (VAC): 24 (VDC)
