NATIONAL SEALS 710761 Part Description
Manufacturer
Product Description

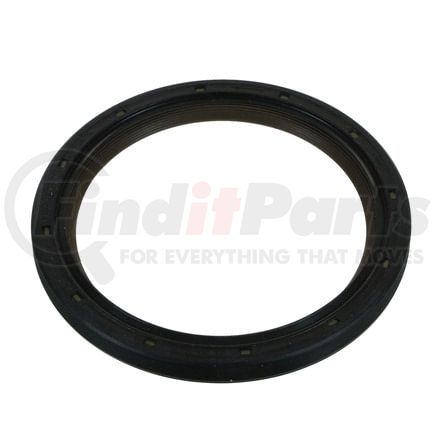

Engine Crankshaft Seal
Application Summary
2011-2019 Porsche Panamera (Rear); 2011-2019 Porsche Cayenne (Rear); 2015-2019 Porsche Macan (Rear); 2015-2017 Lamborghini Huracan (Rear); 2009-2014 Lamborghini Gallardo (Rear); 2013-2017 Bentley Continental (Rear); 2015-2019 Bentley Flying Spur (Rear); 2013-2018 Audi S7 (Rear); 2012-2018 Audi A7 Quattro (Rear); 2013-2015 Audi RS5 (Rear); 2014-2020 Audi SQ5 (Rear); 2014-2018 Audi RS7 (Rear); 2018-2020 Audi S5 Sportback (Rear); 2019-2020 Audi Q8 (Rear); 2007-2020 Audi Q7 (Rear); 2007-2008 Audi RS4 (Rear); 2008-2018 Audi R8 (Rear); 2008-2010 Audi A5 Quattro (Rear); 2008-2020 Audi S5 (Rear); 2009-2017 Audi Q5 (Rear); 2005-2020 Audi S4 (Rear); 2006-2011 Audi A6 (Rear); 2005-2020 Audi A6 Quattro (Rear); 2007-2018 Audi S6 (Rear); 2006-2008 Audi A4 (Rear); 2005-2010 Audi A4 Quattro (Rear); 2004-2020 Audi A8 Quattro (Rear); 2007-2018 Audi S8 (Rear); 2007-2016 Volkswagen Touareg (Rear)
Features & Benefits

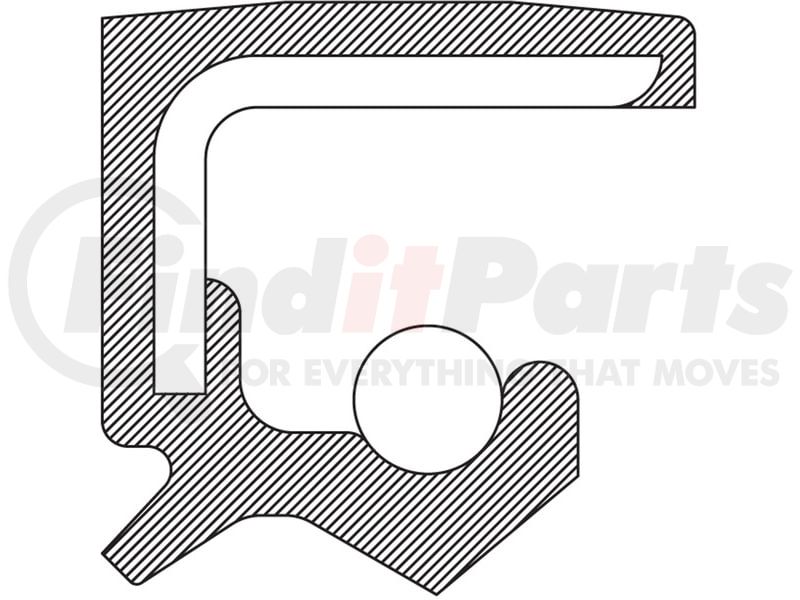

- Design type: spring loaded; multi-lip
- Temperature range: -100°F to 450°F / -73°C to 232°
- Temperature range: -100degF to 450degF / -73degC to 232deg
- Excellent dry running capabilities
- Low coefficient of friction
- Delivers quality and reliable performance for every type of repair
NATIONAL SEALS 710761 Specifications
Product Attributes
| Inside Diameter | 3.346 IN |
| Inside Diameter | 85.000 MM |
| Outside Diameter | 4.145 IN |
| Outside Diameter | 105.280 MM |
| Width | 0.346 IN |
| Width | 8.800 MM |
| Material | PTFE |
| Helix Type | Counter-Clockwise-Spiral Lip Design |
| Part Description | Oil Seal |
| Series | 710700 |
| Thickness | 0.346 IN |
| Thickness | 8.800 MM |
| Type | 32 |
| Unit of Dimension | Metric |
| Housing Bore | 4.134 in |
| Housing Bore | 105.000 MM |
| Shaft Diameter | 3.346 IN |
| Shaft Diameter | 85.000 MM |
| Shaft Diameter | 85.000 MM |
| Housing Bore | 4.134 IN |
| Grade Type | Premium |
| Housing Bore | 105.000 MM |
| Shaft Diameter | 3.346 IN |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00019826109873 |
| VMRS Code | 045003004 |
NATIONAL SEALS 710761 Cross References
| Brand | Part Number |
|---|---|
| Audi | 079-103-051F, 07L-103-051A, 059-103-051H, 059-103-051K |
| Beck/Arnley | 052-4073 |
| Chicago Rawhide | 34666 |
| Corteco | 20034738, 20029117, 19036599B, 20034738B, 20029117B, 19036599 |
| ELRING | 026790 |
| Elring | 000.220 |
| Payen | NF857 |
| Porsche | 958 101 153 01, 955.101.053.00 |
| SKF | 34666 |
| Timken | 710761 |
| Victor Reinz | 67830 |
| Volkswagen | 079-103-051F, 059-103-051H, 059-103-051K, 07L-103-051A |
NATIONAL SEALS 710761 Fits Vehicles
- Audi Q8 (2019-2020)
- Audi S5 Sportback (2018-2020)
- Bentley Flying Spur (2015-2019)
- Lamborghini Huracan (2015-2017)
- Porsche Macan (2015-2017, 2019)
- Audi RS7 (2014-2018)
- Audi SQ5 (2014-2020)
- Bentley Continental (2013-2017)
- Audi RS5 (2013-2015)
- Audi S7 (2013-2018)
- Audi A7 Quattro (2012-2018)
- Porsche Panamera (2011-2016, 2019)
- Porsche Cayenne (2011-2019)
- Audi Q5 (2009-2017)
- Lamborghini Gallardo (2009-2014)
- Audi S5 (2008-2020)
- Audi A5 Quattro (2008-2010)
- Audi R8 (2008-2012, 2014-2015, 2017-2018)
- Audi S8 (2007-2009, 2013-2018)
- Audi S6 (2007-2011, 2013-2018)
- Volkswagen Touareg (2007-2016)
- Audi RS4 (2007-2008)
- Audi Q7 (2007-2015, 2017-2020)
- Audi A6 (2006-2011)
- Audi A4 (2006-2008)
- Audi A4 Quattro (2005-2010)
- Audi S4 (2005-2016, 2018-2020)
- Audi A6 Quattro (2005-2020)
- Audi A8 Quattro (2004-2020)
