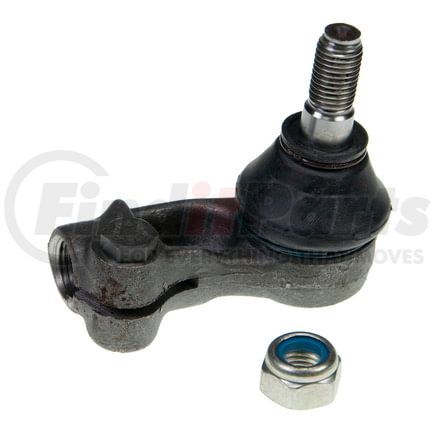

(888) 312-8812 Login SignupMOOG ES80613 QuickSteer ES80613 Steering Tie Rod End
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOOG ES80613 Part Description
Manufacturer
Product Description
Steering Tie Rod End
Application Summary
1999-2002 Daewoo Lanos (Left Outer); 1988-1991 Pontiac Optima (Left Outer); 1988-1993 Pontiac LeMans (Left Outer)
Features & Benefits
- Designed for OE fit and function
- Loose or worn chassis parts can lead to premature tire wear
- Premium boot keeps out contaminants
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Made of forged alloy steel for durability
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Replacement helps restore vehicle handling
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Moog Front Steering, Driver Side, Outer Tie Rod End - Direct OE replacement -MOOG TIE ROD END, SOLD INDIVIDUALLY -- A high quality, direct fit OE replacement tie rod end; Designed to consistently produce just the right amount of preload to provide proper steering effort; Features include a forged and heat-treated housing for strength and durability, a premium polychloroprene seal to keep out dirt, and bearings with grease grooves that ensure flow of lubrication throughout the part.Front Steering, Driver Side, Outer
MOOG ES80613 Specifications
Product Attributes
| End 1 Gender | Female |
| End 2 Gender | Female |
| Dust Boot Included | No |
| Type | Straight |
| Greaseable | No |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 2.570 IN |
| End 1 Thread Diameter | 16.0 MM |
| End 1 Gender | FEMALE |
| Type | STRAIGHT |
| Part Description | Steering Tie Rod End |
Additional Information
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Refurbished Part | N |
| Remanufactured Part | N |
| UPC | 00080066365763 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
MOOG ES80613 Cross References
| Brand | Part Number |
|---|---|
| 080066365763 | |
| ACDelco | 46A0509A, 45A0509 |
| Autospecialty | 382065 |
| Beck/Arnley | 101-6221, 1014288 |
| Centric Parts | 612.49001 |
| Cofap | TDC04003M |
| DELPHI | TA972 |
| DORMAN | TO52001, T3146, TO52001PR, T3146PR |
| Daewoo | 96275018 |
| Duralast | ES80613 |
| Duralast Gold | DG4011509 |
| Falcon Steering Systems | ES3146, ES80613 |
| Firestone | ES80613 |
| General Motors | 9014-0007, 26001807 |
| MAS Industries | TO52001, T3146 |
| Mcquay-Norris | ES3146 |
| Mevotech | MES3146, MES80613, PES3146 |
| Mevotech Supreme | MES3146, MES80613 |
| NAKATA | N330 |
| NAPA | ES3146, 269-2821 |
| NAPA Chassis Parts | 269-2821, ES3146 |
| Parts Master | ES80613 |
| Quinton Hazell | QR1829S |
| Raybestos Brakes | 401-1509B, 401-1509 |
| SUSPENSIA | X37TE3131 |
| TRW | ES80613 |
| TRW Steering and Suspension Parts | JTE220, ES3146, ES80613, TE1497L |
MOOG ES80613 Fits Vehicles
- Pontiac Optima (1988-1991)
- Pontiac LeMans (1988-1993)
- Daewoo Lanos (1999-2002)
MOOG ES80613 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG ES80613 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
