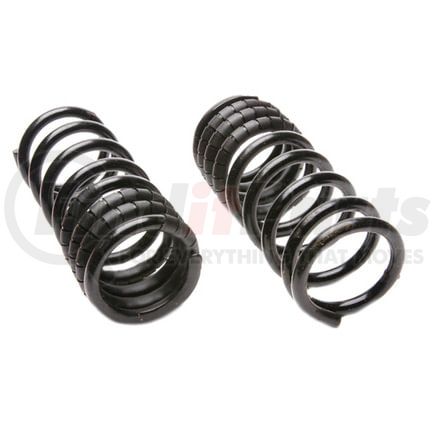

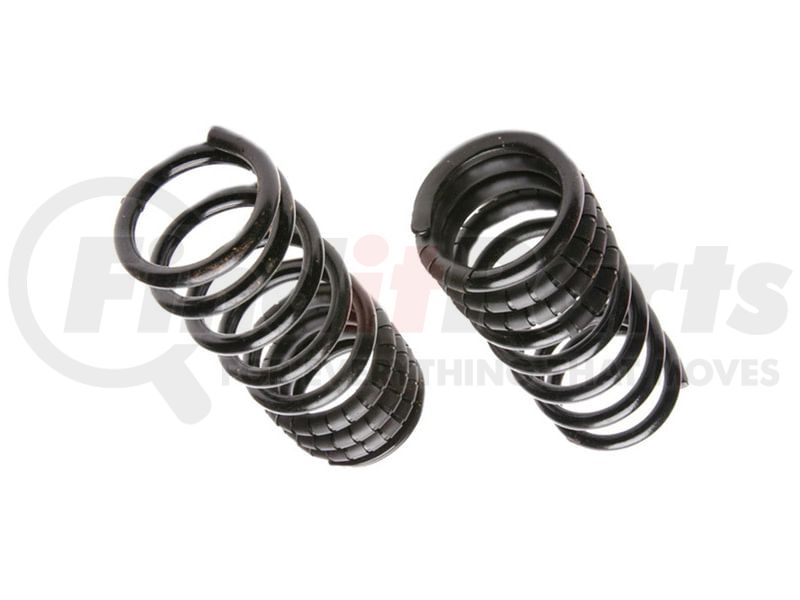

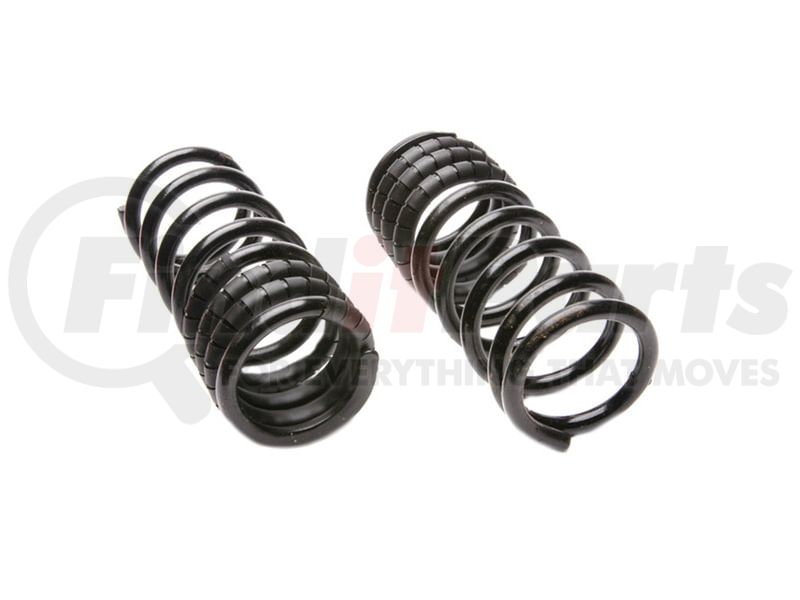

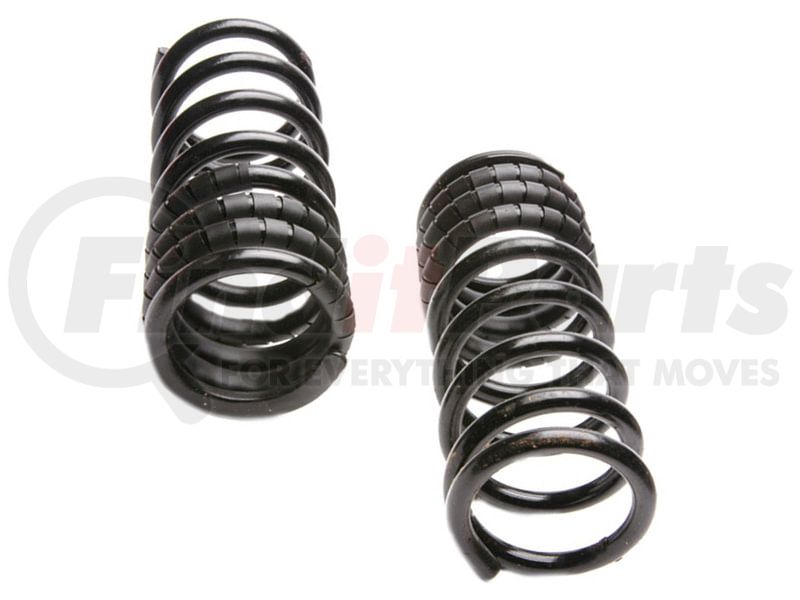

MOOG CC655 Part Description
Manufacturer
Product Description
Coil Spring Set
Application Summary
Buick: Le Sabre (86-88);Cadillac: Fleetwood (91-92);Oldsmobile: Delta 88 Royale (86-88);Pontiac: Bonneville (87-90)
Moog Rear Coil Springs OE comparable -MOOG COIL SPRINGS, SOLD AS PAIR -- Variable Rate Springs, Made From Heat-Treated Alloy Steel For A Full Coil Rebound And Sagging Resistance, Change Resistance When Compressing, Become Progressively Stiffer As Its Load Increases, Use A Premium Urethane Tube That Lasts Much Longer, Vinyl-Coated For Corrosion Resistance And Extended Service LifeRear
MOOG CC655 Specifications
Product Attributes
| Wire Diameter | 0.65 IN |
| Wire Diameter | 16.70 MM |
| Spring Color | Black |
| Front Spring Outside Diameter | 5.510 IN |
| Front Spring Relaxed Length | 13.63 IN |
| Front Spring Relaxed Length | 346.20 MM |
| Front Spring Compressed Length | 11.00 IN |
| Front Spring Compressed Length | 279.40 MM |
| Rear Spring Relaxed Length | 13.63 IN |
| Rear Spring Relaxed Length | 346.20 MM |
| Rear Spring Compressed Length | 11.00 IN |
| Rear Spring Compressed Length | 279.40 MM |
| Rear Spring Outside Diameter | 5.510 IN |
| Bar Diameter (in.) | 0.65 |
| Bar Diameter (mm) | 16.7 |
| End Type 1 | Squared |
| End Type 2 | Squared |
| Free Height (in.) | 13.63 |
| Free Height (mm) | 346.2 |
| ID (in.) | 4.18 |
| ID (MM) | 106.3 |
| Installation Height (in.) | 11 |
| Installation Height (mm) | 279.4 |
| Load (lbs) | 827 |
| Spring Rate (lbs Per in.) | 355 |
| Spring Type | Variable Rate |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Remanufactured Part | N |
| UPC | 00080066166124 |
