MOOG 5626 Part Description
Manufacturer
Product Description
Shock Absorber
Application Summary
2007-2012 Nissan Versa (Rear) (Body: Hatchback / Qualifier: Recommended OE Application -Specific Replacement); 2007-2018 Nissan Tiida (Rear) (Liter: 1.8 / Qualifier: Recommended OE Application -Specific Replacement)
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

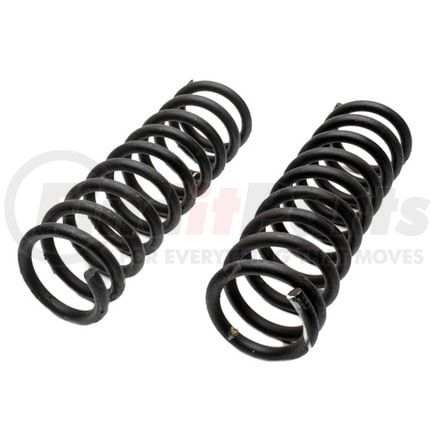

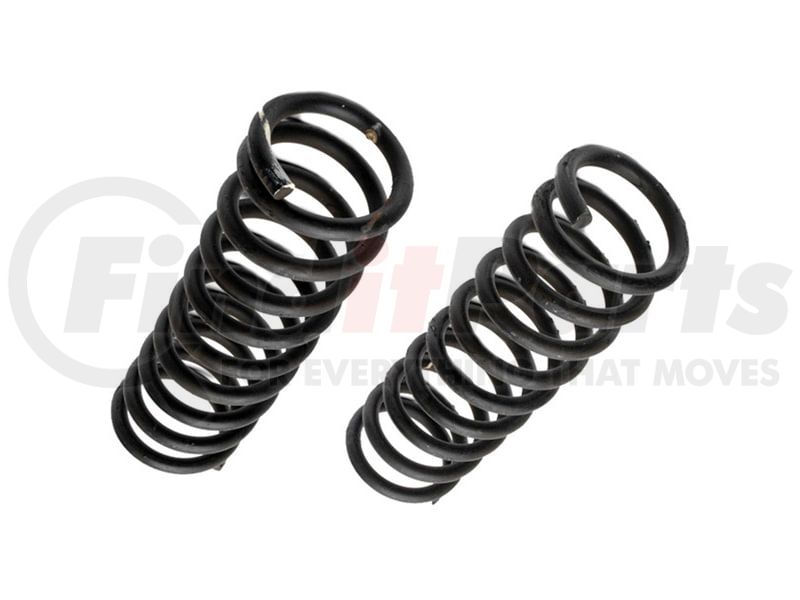

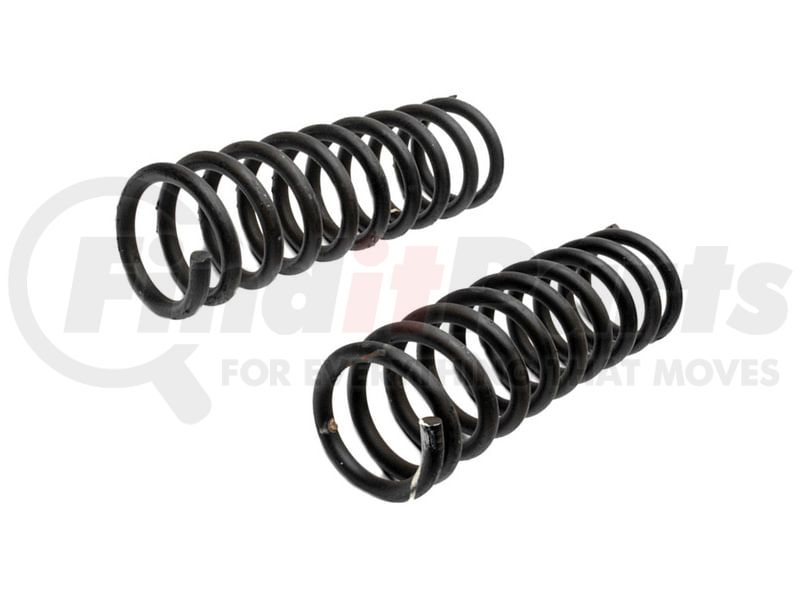

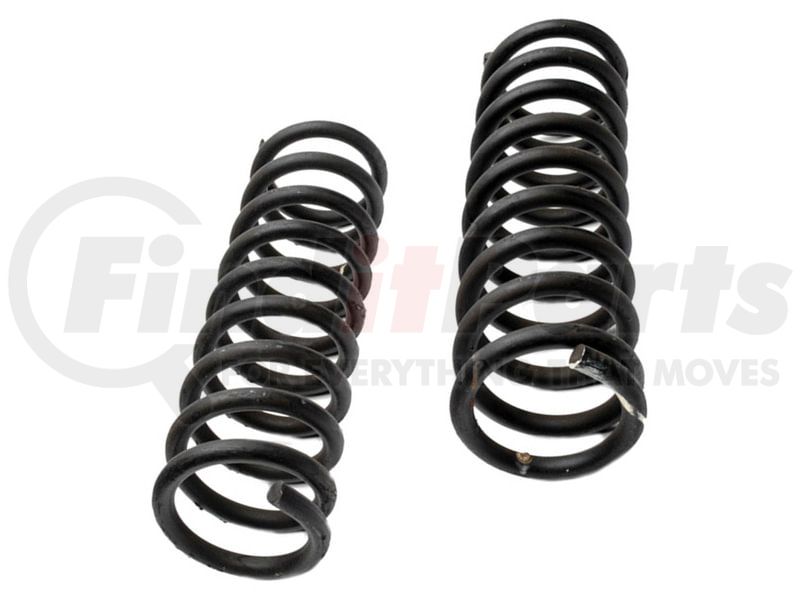

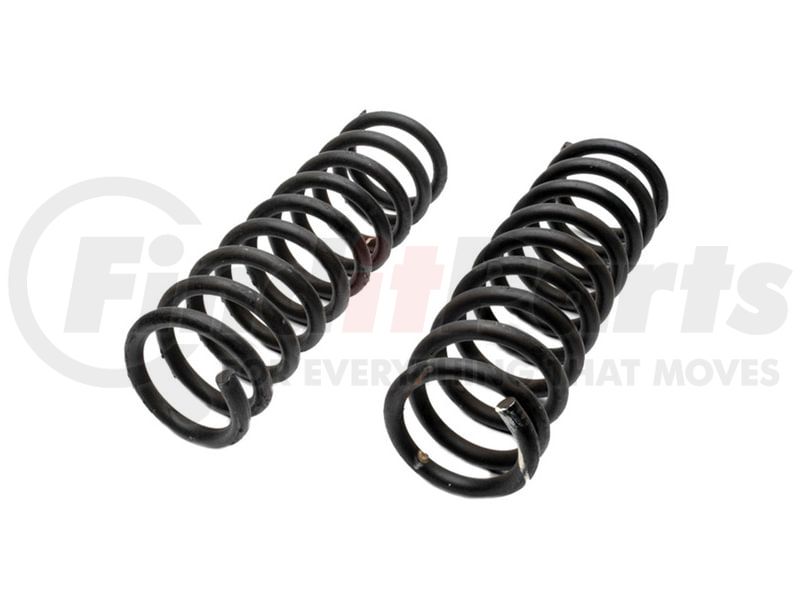

Moog Front Coil Springs OE comparable -MOOG COIL SPRINGS, SOLD AS PAIR -- Constant Rate Springs, High Quality Direct Fit OEM Replacement Coil Springs, Made From Heat-Treated Alloy Steel For A Full Coil Rebound And Sagging Resistance, Return Ride Height And Body Sway To Original Performance Levels, Restore Vehicle Handling, Use A Premium Urethane Tube That Lasts Much LongerFront
MOOG 5626 Specifications
Product Attributes
| Compressed Length | 17.688 IN |
| Travel Length | 3.812 in |
| Extended Length | 21.5 in |
| Gas Charged | Yes |
| Body Diameter | 1.75 IN |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Upper Mount Code | S4 |
| Lower Mount Code | LS16 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | No |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 7/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Part Description | Shock Absorber |
| Parts Pack(s) | P01136 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708801910 |
| Harmonized Tariff Code (Schedule B) | 8708801300 |
| Harmonized Tariff Code (HTS) | 8708801300 |
| MSDS Sheet Number | 01164 |
| UPC | 00048598059758 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MOOG 5626 Cross References
| Brand | Part Number |
|---|---|
| 080066128511 | |
| ACDelco | 45H0117 |
| AutoZone | TS3432312B |
| Centric Parts | 630.62042 |
| Duralast | FCS5626S |
| FCS | 341561 |
| KYB | 343465, 348029 |
| Mcquay-Norris | FCS5626, FCS5626S |
| Mevotech | SMS5626 |
| Monroe Shocks & Struts | U5626S |
| NAPA | 277-3083 |
| NAPA Shocks | 5626 |
| Nissan | 562103AN0C, E6200ZN90A, E6210EL00A, E6210EM01A, E6B10EL00A |
| Perfect Circle | 277-3083 |
| Raybestos Brakes | 585-1117 |
| Sealed Power | 831-5626 |
| Sensen | 32120277 |
| TRW | CS5626 |
| TRW Steering and Suspension Parts | CS5626 |
| Top Quality | 785626 |
| Unity Automotive | 255700 |
MOOG 5626 Fits Vehicles
- Pontiac Sunbird (1976, 1978-1979)
- Oldsmobile Starfire (1975-1976, 1978-1979)
- Chevrolet Monza (1976-1979)
- Buick Skyhawk (1975-1976)
MOOG 5626 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG 5626 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
