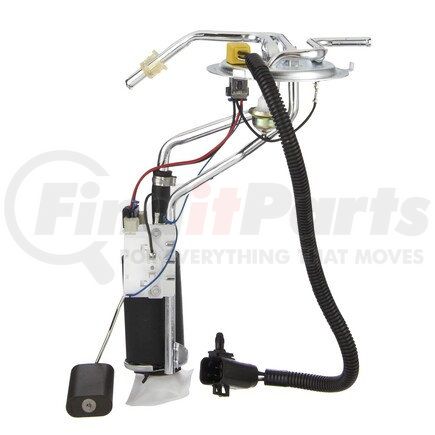

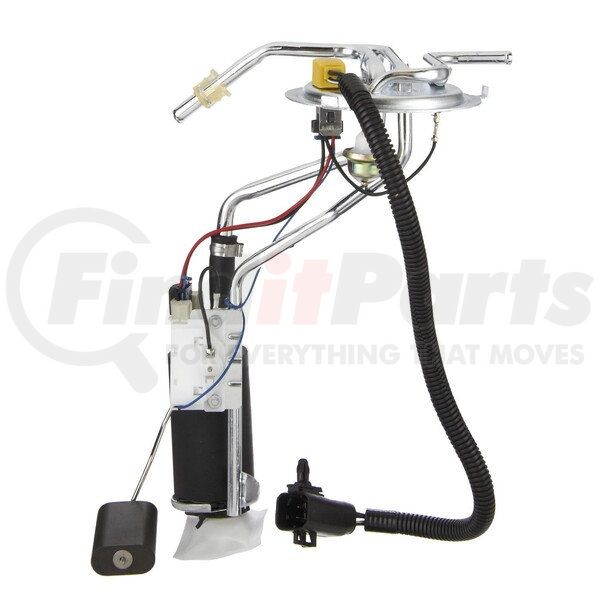

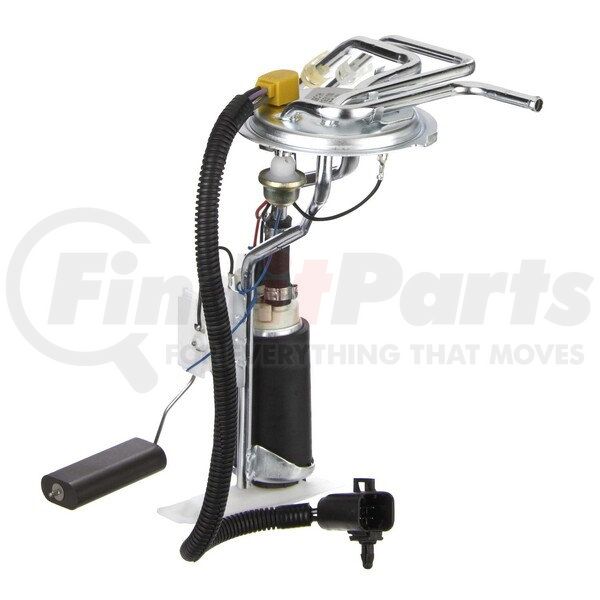

(888) 312-8812 Login SignupSPECTRA PREMIUM SP09C1H Fuel Pump and Sender Assembly
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
SPECTRA PREMIUM SP09C1H Part Description
Manufacturer
Product Description
Fuel Pump and Sender Assembly
Application Summary
94-93 Buick Regal (V6 3.1L); 94-93 Chevrolet Lumina (V6 3.1L); 94-93 Chevrolet Lumina (V6 3.4L); 94-93 Oldsmobile Cutlass Supreme (V6 3.1L); 94-93 Oldsmobile Cutlass Supreme (V6 3.4L); 94-93 Pontiac Grand Prix (V6 3.1L); 94-93 Pontiac Grand Prix (V6 3.4L)
fuel, pump, module, assembly, module assembly, modular, fuel pump, gas, sender
94-93 BUICK REGAL (V6-3.1L); 94-93 CHEVROLET LUMINA (V6-3.1L); 94-93 CHEVROLET LUMINA (V6-3.4L); 94-93 OLDSMOBILE CUTLASS SUPREME (V6-3.4L); 94-93 OLDSMOBILE CUTLASS SUPREME (V6-3.1L); 94-93 PONTIAC GRAND PRIX (V6-3.1L); 94-93 PONTIAC GRAND PRIX (V6-3.4L)
SPECTRA PREMIUM SP09C1H Specifications
Product Attributes
| California_prop 65 Message | Y |
| Negative Ground | Yes |
| Inlet Outside Diameter | 0.3125 IN |
| Outlet Outside Diameter | .375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Maximum Pressure | 109 PS |
| Mounting Hardware Included | Yes |
| Grade Type | OEM |
| Connector Shape | Square |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Maximum Flow Rating | 45 GPH |
| Strainer Included | Yes |
| Inlet Type | Quick Connect |
| Outlet Type | Quick Connect |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Full | 95 82 |
| Minimum Free Flow Rate | 40 GPH |
| Minimum Pressure | 80 PS |
| Wire Harness Included | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Lifetime |
| Warranty Special UOM | LF |
| Core Class | FM |
| Canadian Harmonizing Tariff Code | 8413300090 |
| UPC | 00671607147841 |
| VMRS Code | 044001100 |
| UNSPSC | 40151532 |
SPECTRA PREMIUM SP09C1H Cross References
SPECTRA PREMIUM SP09C1H Fits Vehicles
- Pontiac Grand Prix (1993-1994)
- Oldsmobile Cutlass Supreme (1993-1994)
- Chevrolet Lumina (1993-1994)
- Buick Regal (1993-1994)
SPECTRA PREMIUM SP09C1H Customer Reviews
No reviews yet
Be the first to review this product!
SPECTRA PREMIUM SP09C1H Manufacturer Information
When it comes to engine management, heavy-duty cooling, undercar, and classic car products, Spectra Premium has always been the Premium Choice since 1989. In the last 30 years, Spectra Premium has solidified its position as a world leader in the production of steel fuel tanks. Guided by the company's three core values—trust, collaboration, and creativity—its Mobility Solutions division continues to develop, manufacture, and sell advanced technologies that support sustainable mobility. Spectra's passion for innovation is evident from the early phases of the design process to the final stages of product manufacturing and testing. With decades of manufacturing expertise, OE design, and state-of-the-art technologies, Spectra Premium's automotive sensors, emission control components, radiators, air coolers, body panels, fuel tanks, and many other products are definitely built to last.
SPECTRA PREMIUM SP09C1H Questions & Answers
No questions yet
Be the first to ask a question about this product!
