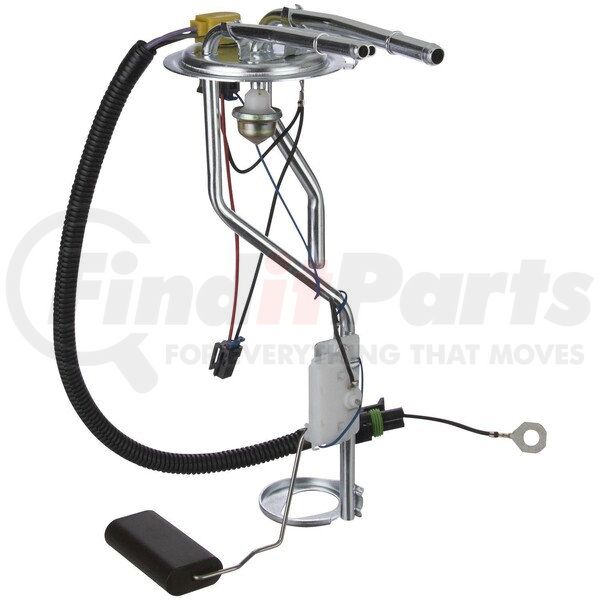

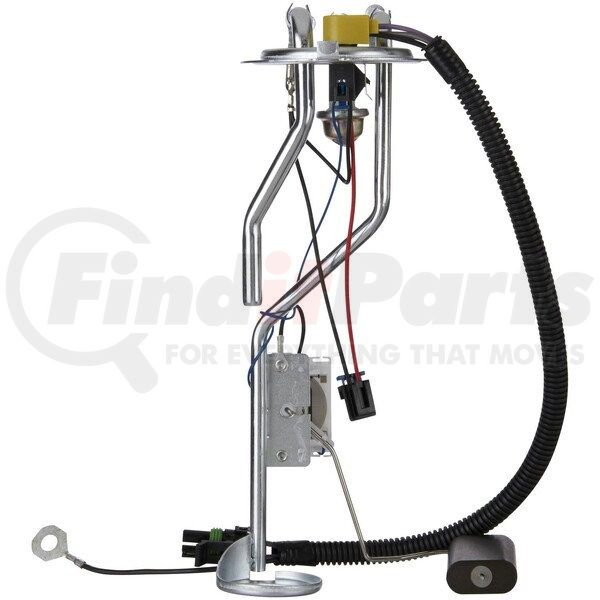

(888) 312-8812 Login SignupSPECTRA PREMIUM FG05N Fuel Tank Sending Unit
Tap to view 3 more
$6749
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Feb 26
SPECTRA PREMIUM FG05N Part Description
Manufacturer
Product Description
Fuel Tank Sending Unit
Application Summary
87 Chevrolet R10 (V6 4.3L); 87 Chevrolet R10 (V8 5.0L); 87 Chevrolet R10 (V8 5.7L); 87 Chevrolet R20 (V6 4.3L); 87 Chevrolet R20 (V8 5.0L); 88-87 Chevrolet R20 (V8 5.7L); 88-87 Chevrolet R20 (V8 7.4L); 88-87 Chevrolet R30 (V8 5.7L); 88-87 Chevrolet R30 (V8 7.4L); 89 Chevrolet R2500 (V8 7.4L); 91-89 Chevrolet R3500 (V8 5.7L); 91-89 Chevrolet R3500 (V8 7.4L); 87 Chevrolet V10 (V6 4.3L); 87 Chevrolet V10 (V8 5.0L); 87 Chevrolet V10 (V8 5.7L); 87 Chevrolet V20 (V8 5.7L); 88-87 Chevrolet V30 (V8 5.7L); 88-87 Chevrolet V30 (V8 7.4L); 91-89 Chevrolet V3500 (V8 5.7L); 91-89 Chevrolet V3500 (V8 7.4L); 87 GMC R1500 (V6 4.3L); 87 GMC R1500 (V8 5.0L); 87 GMC R1500 (V8 5.7L); 87 GMC R2500 (V6 4.3L); 87 GMC R2500 (V8 5.0L); 89-87 GMC R2500 (V8 5.7L); 89-87 GMC R2500 (V8 7.4L); 91-87 GMC R3500 (V8 5.7L); 91-87 GMC R3500 (V8 7.4L); 87 GMC V1500 (V6 4.3L); 87 GMC V1500 (V8 5.0L); 87 GMC V1500 (V8 5.7L); 87 GMC V2500 (V8 5.7L); 91-87 GMC V3500 (V8 5.7L); 91-87 GMC V3500 (V8 7.4L)
fuel, tank, sending, unit, fuel tank, sending unit, sender
1987 CHEVROLET R10 (V6 4.3L/V8 5.7L/V8 5.0L);88-87 CHEVROLET R20 (V6 4.3L/V8 5.7L/V8 7.4L/V8 5.0L);1989 CHEVROLET R2500 (V8 7.4L);88-87 CHEVROLET R30 (V8 5.7L/V8 7.4L);91-89 CHEVROLET R3500 (V8 5.7L/V8 7.4L);1987 CHEVROLET V20 (V8 5.7L);88-87 CHEVROLET V3
SPECTRA PREMIUM FG05N Specifications
Product Attributes
| Inlet Diameter | 8.0000 MM |
| Lock Ring Included | Yes |
| Vent Quantity | 1 |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Outlet Diameter | 10.0000 MM |
| Adjustable Float Level | No |
| Fuel Pump Included | No |
| Resistance Ohms Empty | 0.0 82 |
| Resistance Ohms Full | 95.0 82 |
| California_prop 65 Message | Y |
| Strainer Included | Yes |
| Wiring Harness Included | No |
| Connector Gender | Female |
| Terminal Quantity | 2 |
| Gasket Or Seal Included | Yes |
| Connector Shape | Oval |
| Connector Quantity | 1 |
| Wire Quantity | 2 |
| Terminal Type | Pin |
| Outlet Attachment Type | Butt Flare |
| Inlet Attachment Type | Butt Flare |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 9026105000 |
| Harmonized Tariff Code (HTS) | 9026102080 |
| Warranty Special UOM | TX |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Canadian Harmonizing Tariff Code | 9026100091 |
| Core Class | SU |
| UPC | 00671607140590 |
| VMRS Code | 044001100 |
| UNSPSC | 25172411 |
SPECTRA PREMIUM FG05N Cross References
SPECTRA PREMIUM FG05N Fits Vehicles
- GMC V2500 (1987)
- GMC V1500 (1987)
- GMC R1500 (1987)
- GMC V3500 (1987-1991)
- GMC R2500 (1987-1989)
- GMC R3500 (1987-1991)
- Chevrolet V20 (1987)
- Chevrolet V3500 (1989-1991)
- Chevrolet V30 (1987-1988)
- Chevrolet V10 (1987)
- Chevrolet R2500 (1989)
- Chevrolet R20 (1987-1988)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R10 (1987)
SPECTRA PREMIUM FG05N Customer Reviews
No reviews yet
Be the first to review this product!
SPECTRA PREMIUM FG05N Manufacturer Information
When it comes to engine management, heavy-duty cooling, undercar, and classic car products, Spectra Premium has always been the Premium Choice since 1989. In the last 30 years, Spectra Premium has solidified its position as a world leader in the production of steel fuel tanks. Guided by the company's three core values—trust, collaboration, and creativity—its Mobility Solutions division continues to develop, manufacture, and sell advanced technologies that support sustainable mobility. Spectra's passion for innovation is evident from the early phases of the design process to the final stages of product manufacturing and testing. With decades of manufacturing expertise, OE design, and state-of-the-art technologies, Spectra Premium's automotive sensors, emission control components, radiators, air coolers, body panels, fuel tanks, and many other products are definitely built to last.
SPECTRA PREMIUM FG05N Questions & Answers
No questions yet
Be the first to ask a question about this product!
