MONROE 39020 Part Description
Manufacturer
Product Description

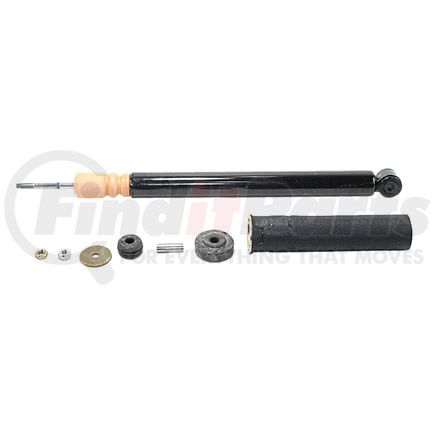

OESpectrum Suspension Shock Absorber
Features & Benefits
- EXCEPTIONAL HANDLING -- Full displaced valving adjusts to road extremes to provide a smooth ride while free floating dividing piston separates fluid from high-pressure gas charging for reduced shock fade and aeration
- IMPROVES PERFORMANCE -- High pressure nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration and tight damping response provides vehicle control
- CONSISTENT RIDE -- High-temperature OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- MAINTAINS STABILITY -- Monotube technology maintains vehicle control over bumps, dips and potholes for vehicles originally equipped with monotube shocks and struts
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and high-strength pressure tube for better control, increased durability and longer service life
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 39020 Specifications
Product Attributes
| Lower Mount Code | LS6 |
| Upper Mount Code | S1 |
| Dust Shield Included | Yes |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 18.937 IN |
| Dust Shield Material | Plastic |
| Extended Length | 21.496 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 10MM Sleeve ID X 1.9/16" Sleeve OAL |
| Parts Pack(s) | BE17110326 |
| Travel Length | 2.559 in |
| Upper Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Compressed Length | 481 MM |
| Extended Length | 546 MM |
| Travel Length | 65 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS6 |
| Upper Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Upper Mount Code | S1 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | PL |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598042200 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 39020 Cross References
| Brand | Part Number |
|---|---|
| 39020ST, FT4Z5831013CA | |
| AUTOZONE | TS32-31301B |
| AutoZone | TS3231301B |
| Duralast | TS3231301B |
| GABRIEL | 69952 |
| KYB | KG4727, KG4742 |
| KYB AMERICA LLC. | KG4727, KG4742 |
| Mercedes-Benz | 2103200231, 2103200531, 2103200913, 2103200930, 2103200931, 2103202430, 2103202713, 2103203130, 2103203330, 2103232500, 2103261200, 2103262100 |
| Monroe Shocks & Struts | 210375 |
| NAPA Shocks | 39020, NS39020 |
| SENSEN | 12120096 |
| VAICO | V30-1703, V30-1752 |
MONROE 39020 Fits Vehicles
- Mercedes-Benz E420 (1997)
- Mercedes-Benz E55 AMG (1999-2001)
- Mercedes-Benz E430 (1998-2002)
- Mercedes-Benz E320 (1996-2002)
- Mercedes-Benz E300 (1996-1999)
