MONROE 32274 Part Description
Manufacturer
Product Description

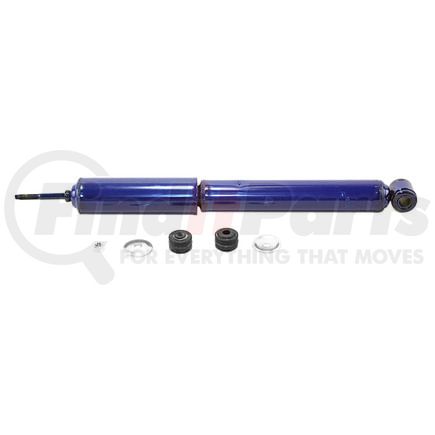

Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32274 Specifications
Product Attributes
| Lower Mount Code | LS50 |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 11.75 IN |
| Dust Shield Material | Metal |
| Extended Length | 18.125 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 1.1/2" Sleeve OAL |
| Parts Pack(s) | P01134 |
| Travel Length | 6.375 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 298.5 MM |
| Extended Length | 460.4 MM |
| Travel Length | 161.9 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS50 |
| Upper Mount Code | S4 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598025579 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32274 Cross References
| Brand | Part Number |
|---|---|
| 32274MM | |
| AUTOZONE | MS33-32942B, TS33-32942B |
| AutoZone | MS3332942B, TS3332942B |
| Duralast | MS3332942B |
| GABRIEL | G63781, 77781 |
| KYB | KG54303, 565025 |
| KYB AMERICA LLC. | KG54303 |
| MERITOR | MG61121 |
| MasterPro Shocks and Struts | MT102 |
| Mitsubishi | MB633900, MB663364, MB891675, MB891676, MB891677, MR267960, MR267962, MR353807, MR353808, MR353811 |
| Monroe Shocks & Struts | 59363 |
| NAPA Proformer | SH63781 |
| NAPA Response | 94139 |
| SENSEN | 12130347 |
MONROE 32274 Fits Vehicles
- Mitsubishi Montero (1992-2000)
