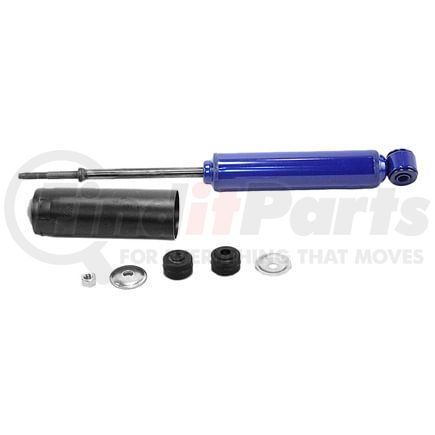

(888) 312-8812 Login SignupMONROE 32249 Monro-Matic Plus Suspension Shock Absorber
Tap to view 3 more
$3249
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Feb 26
MONROE 32249 Part Description
Manufacturer
Product Description
Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32249 Specifications
Product Attributes
| Lower Mount Code | LS23 |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 9.375 IN |
| Dust Shield Material | Plastic |
| Extended Length | 14.625 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/4" Sleeve OAL |
| Parts Pack(s) | P01134 |
| Travel Length | 5.25 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 238.1 MM |
| Extended Length | 371.5 MM |
| Travel Length | 133.4 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS23 |
| Upper Mount Code | S4 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598025326 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32249 Cross References
| Brand | Part Number |
|---|---|
| 32249MM, FS7Z5467112FF | |
| AUTOZONE | TS32-30471B |
| AutoZone | TS3230471B |
| Datsun/Nissan | 5611043G25, 5611045G25, 5611046G25, 5611088G26, 5621043G25, 5621045G25, 5621046G25, 5621088G25 |
| GABRIEL | 81872, 61593, G63904 |
| KYB | KG5444, KG5476, 344430, 344427 |
| Mitsubishi | MB339210, MB339212, MB430190 |
| NAPA Response | 94114 |
| Nissan | 5611045G25 |
| Sensen | 32130599 |
| UNITY AUTOMOTIVE | 210030, 2-210030-001, 4-210030-250070-001 |
MONROE 32249 Fits Vehicles
- Mitsubishi Van (1987-1990)
- Nissan Pathfinder (1987-1995)
