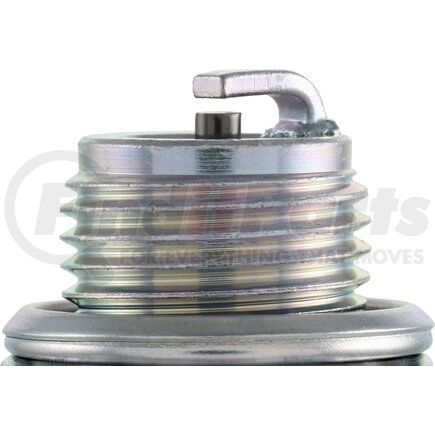

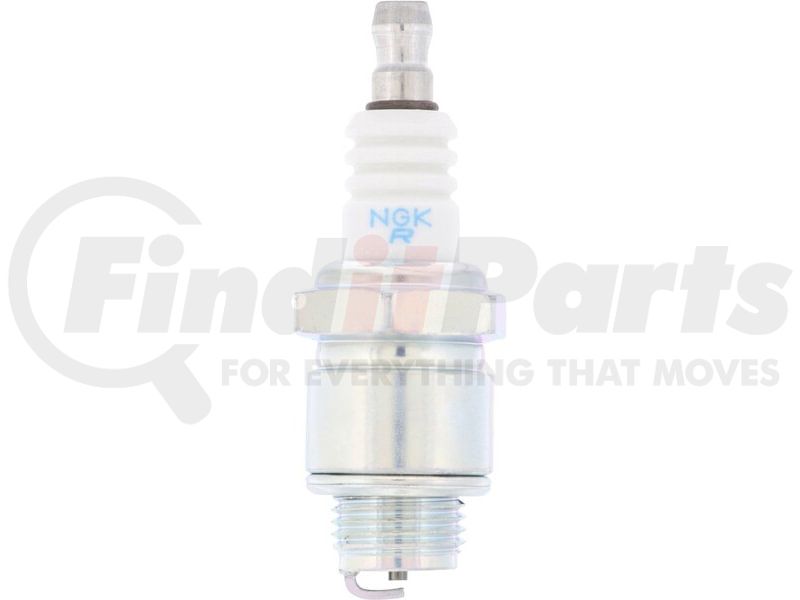

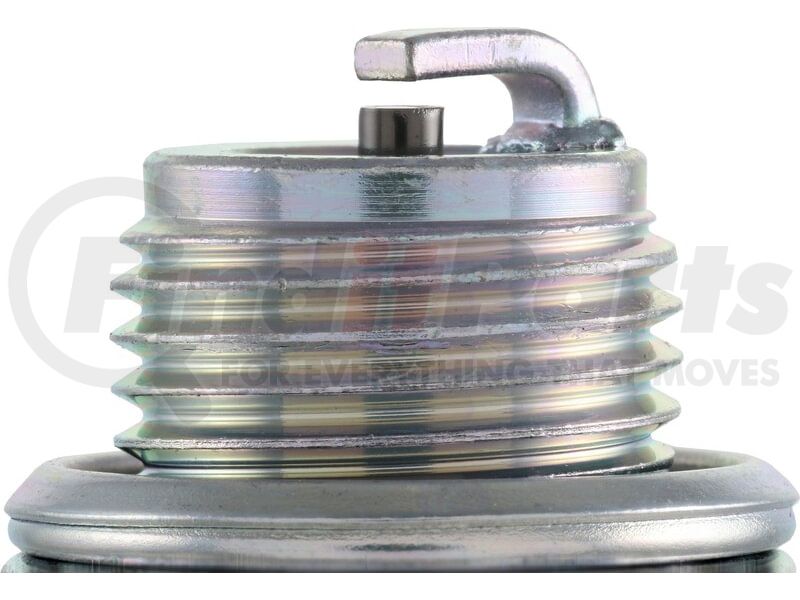

NGK SPARK PLUGS BR2LM Part Description
Manufacturer
Product Description
NGK Standard Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BR2LM Specifications
Product Attributes
| Stock Number | 5798 |
| Part Number | BR2-LM |
| Short Style Spark Plug | Yes |
| Service Number | BR2-LM |
| Resistance | 10000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 1.89 IN |
| Manufacturer Heat Range | 2 |
| Seat Type | Flat |
| Reach | 0.375 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Insulator Height | 48.0 MM |
| Reach | 9.5 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 1.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295157985 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR2LM Cross References
| Brand | Part Number |
|---|---|
| Autolite | 458, 458DP, 458BP |
| Bosch | WR12EC, WR11E0, 7808, 7538, 7801 |
| Briggs & Stratton | 391919, 394539, 493944, 555132, 591040, 697451, 796560, 392588, 394812, 499730, 591868, 697858, 799876, 802592, 802592S |
| CHAMPION | 868, 861ECO |
| Champion Spark Plug | 868S, PM4, RJ2YXLE, RJ2YLE, 947, 868LMC-1, QJ19LM, RJ19HX, 973, 868-1, 973-1, RJ19LM, 868, 947-1, RJ19LMC |
| DENSO Auto Parts | 6071, W9LMR-US |
| E3 Spark Plugs | E3.10 |
| John Deere | TY26715 |
| Kawasaki | 92070-2111 |
| Kohler | 232604S, 220040S, 270321S, 271082S, 270869S, 285215S, 4113206S |
| N/A | A11LM, 4053, 6057, W9LM-US, 92070-2055, 861-1, J2YLE, 861EZ, J19LM, J19LMC, 5861, 861, 5861S, 861ECO, 861ECOS, J2YXLE, 861S, 29683, 298809, 491167, 796112, 491167S, 492167S, 5062A, 5062B, 5062C, 5062P, 796112S, XST458DP, SE19J, WR11EO, BR2-LM |
| NGK | 5798 |
| Oregon | 77-305 |
