(888) 312-8812 Login SignupAUTOLITE XS4093DP Autolite XS4093DP Xtreme Sport Iridium Powersports Spark Plug - Display Pack
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
AUTOLITE XS4093DP Part Description
Manufacturer
Product Description

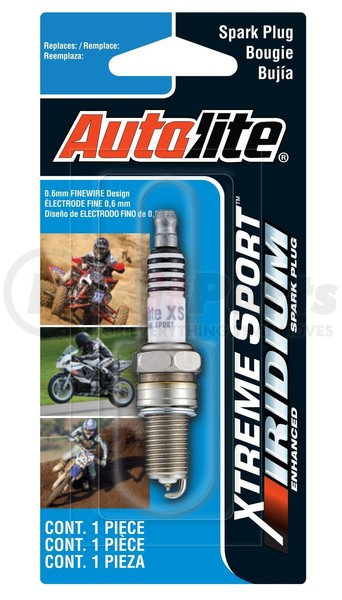

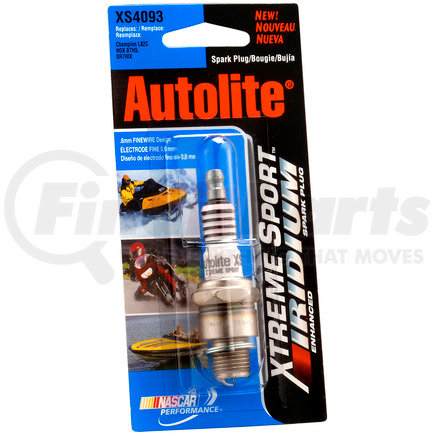

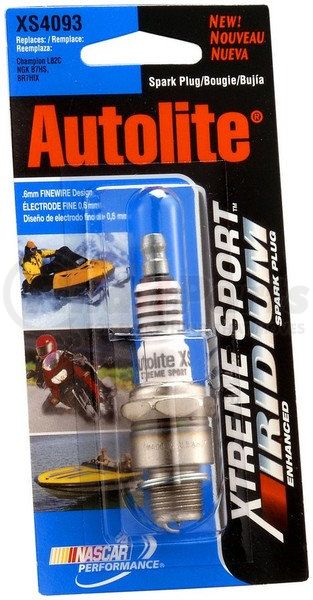

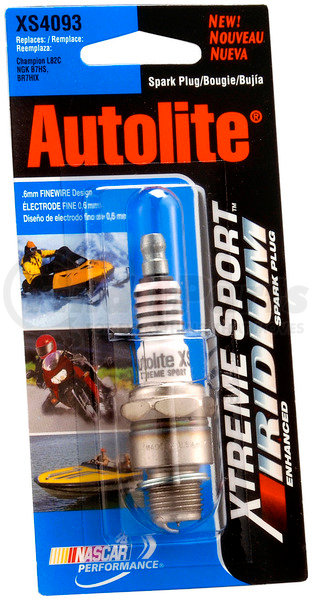

Autolite XS4093DP Xtreme Sport Iridium Powersports Spark Plug - Display Pack
Features & Benefits
- Design to withstand the extreme operating temperatures experienced during a power sports engine's combustion.
- Engineered with an iridium-enhanced fine-wire center electrode that delivers greater ignitability over standard non-fine-wire spark plug.
- 0.6mm finewire design with Sport V-trim ground electrode for more horsepower than standard plug
- The tapered ground electrode provides improved ignitability for more efficient and smoother starts.
- Up to 26% quicker engine starts than a standard non-finewire spark plug* (* Testing performed by independent lab)
- Its high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
- Focused ignition prevents fouling better than leading standard plug for reliable starting in any season or weather
AUTOLITE XS4093DP Specifications
Product Attributes
| Resistance | 1 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | 0.03 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 21 MM |
| Seat Type | Flat |
| Reach | 0.5 IN |
| Thread Diameter | 14 MM |
| Insulator Material | Ceramic |
| Resistor Type | No |
| Ground Electrode Tip Material | Nickel |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Short Projection |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Hex Size | 13/16 IN |
| Manufacturer Heat Range | 11 |
| Skirt | Yes |
| Hex Type | Hex |
| Indexed | No |
| Pre-Gap Size | 0.7619999999999999 MM |
| Reach | 13 MM |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Insulator Height | 56.3 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 1 MM |
| Washer Type | Crush |
| Thread Diameter | 14 MM |
| Center Electrode Insulator Tip Projection | 0.039 IN |
| Insulator Height | 2.215 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Special | No Warranty |
| Warranty Special UOM | TX |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100534309 |
| UNSPSC | 26101732 |
AUTOLITE XS4093DP Cross References
AUTOLITE XS4093DP Fits Vehicles
- Yamaha LB80 II Chappy (1976-1978)
- Yamaha YW50FX Zuma 50FX (2014-2018)
- Sno-Jet Astro SS 440 (1974)
- Ski-Doo Nordic 399E (1970)
- Ski-Doo Olympique 399E (1971-1972)
- Ski-Doo Olympique 399 (1970-1972)
- Ski-Doo Nordic 399 (1970)
- Ski-Doo Alpine 399ER (1970)
- Ski-Doo Alpine 399R (1970)
- Yamaha SJ700 Super Jet (2012-2018)
- Ski-Doo Olympique 300T (1978)
- Ski-Doo Nordik (1982-1983)
- Ski-Doo Elan 250T (1973-1974)
- Ski-Doo Elan 250 Deluxe (1974-1979)
- Ski-Doo Citation 300 (1978-1979)
- Yamaha YW50F Zuma 50F (2012-2018)
- LEM Cayman LC (2003-2004)
- LEM Condor S6 (2003-2005)
- LEM Cayman S6 (2003-2004)
- ATK 50 MXE (2003-2005)
- ATK 50 MXA (2003-2005)
- ATK 50 MXN (2003)
- Yamaha YW50 Zuma (2002-2005, 2008-2011)
- LEM LX1 (2002-2003)
- KTM 50 SX Pro Jr LC (2002-2007)
- KTM 50 SX Pro Sr LC (2001-2006)
- KTM 50 Sr Adventure (2000-2007)
- KTM 50 Jr Adventure (2000-2003)
- ATK 50 MX (1999-2002)
- Yamaha CW50 Zuma II (1998-2001)
- LEM LX3 (1998-2002)
- LEM LX2 (1998-2002)
- KTM 65 SX (1998-2008)
- KTM 50 Mini Adventure (1998-2008)
- KTM 50 SXR Pro Sr (1997-1998)
- KTM 50 SXR Pro Jr (1997-1998)
- Honda EZ90 Cub (1991-1996)
- Honda MB5 (1982)
- Yamaha DT80 (1981-1983)
- Yamaha MX80 (1980-1982)
- Suzuki RM60 (1980-1983)
- Kawasaki KX80 (1979)
- Suzuki DS185 (1978)
- Kawasaki KH400 (1977-1978)
- Yamaha GS340 (1976-1977)
- Suzuki GT500 (1976-1977)
- Kawasaki KV75 (1976-1980)
- Kawasaki KV100 (1976)
- Kawasaki KM100 (1976-1981)
- Kawasaki KE100 (1976-1977)
- Kawasaki KH100 (1976-1977)
- Kawasaki KE175 (1976-1978)
- Kawasaki KD100M (1976-1979)
- Suzuki TS75 (1975-1977)
- Kawasaki KD80 (1975-1976, 1980-1987)
- Kawasaki KT250 (1975-1976)
- Yamaha TL433F (1974)
- Yamaha YZ80 (1974-1975)
- Yamaha DT100 (1974-1975)
- Yamaha GTMX (1974-1979)
- Yamaha GT80 (1974-1980)
- Suzuki TM75 (1974-1976)
- Suzuki TC185 (1974-1977)
- Yamaha RD60 (1973-1975)
- Yamaha EL433 (1973)
- Yamaha RD250 (1973-1975)
- Suzuki TS100 (1973-1977)
- Suzuki GT185 (1973-1977)
- Suzuki RV90 (1973-1977)
- Suzuki RV125 (1973-1977)
- Yamaha SL433 (1972-1974)
- Yamaha LS2 (1972)
- Yamaha JT2MX (1972)
- Yamaha JT2 (1972)
- Yamaha EW433 (1972-1973)
- Kawasaki H2 Mach IV (1972-1975)
- Yamaha SW433 (1971-1973)
- Yamaha SL338 (1971-1974)
- Suzuki TS185 (1971-1979)
- Suzuki TS125 (1971-1977)
- Yamaha JT1L (1971)
- Yamaha JT1 (1971)
- Yamaha GP396 (1971)
- Suzuki TS50 (1971-1974)
- Suzuki T350 (1971-1972)
- Yamaha HT1 (1970-1971)
- Yamaha HS1 (1970-1971)
- Kawasaki G4TR (1970-1975)
- Kawasaki G3TR (1969-1970)
- Kawasaki G3SS (1969-1974)
- Suzuki T500 Titan (1968-1975)
- Yamaha YDS5 (1967)
- Yamaha YL1 (1966-1967)
- Yamaha YA6 (1966)
- Yamaha YJ2 (1964-1965)
- Yamaha YJ1 (1964-1965)
- Yamaha YG1 (1963-1966)
AUTOLITE XS4093DP Customer Reviews
No reviews yet
Be the first to review this product!
AUTOLITE XS4093DP Questions & Answers
No questions yet
Be the first to ask a question about this product!
