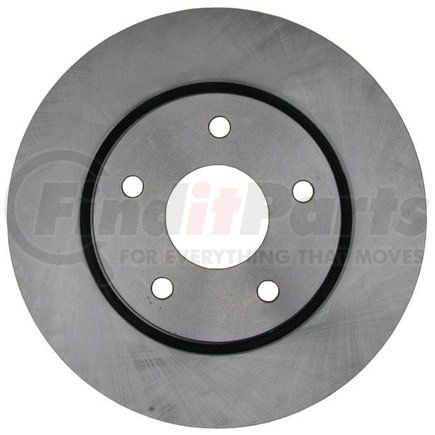

(888) 312-8812 Login SignupRAYBESTOS 780928R Raybestos R-Line Brake Rotor
$9799
Limited availability at this price!
In Stock
Get it by Monday, Mar 16
RAYBESTOS 780928R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2013-2009 Dodge Journey Front, 2011-2010 Chrysler Town & Country Front, 2014-2011 Volkswagen Routan Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 780928R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.85 IN |
| Center Hole Diameter | 72.4 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.039 IN |
| Discard Thickness | 26.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.701 IN |
| Inside Diameter | 195.6 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.546 IN |
| Mounting Bolt Hole Diameter | 13.85 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 11.89 IN |
| Outside Diameter | 302 MM |
| Overall Height | 1.5 IN |
| Overall Height | 38.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352879368 |
RAYBESTOS 780928R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | N1000415074WBR |
| BRAKEBEST | 780928, 780928FZN, 780928PER, 780928R, 780928RGS |
| CENTRIC | 120.67069 |
| CHRYSLER | 4721995AB, 68032944AA, 68032944AB |
| Centric Parts | 120.67069, 121.67069 |
| DURA CORP | BR53065, BR900524-02 |
| DuraGo | 900524, BR900524, BR90052402, BR900524-02 |
| MAGMA PRODUCTS | PMR145193 |
| NEWTEK AUTOMOTIVE | 53065 |
| Newtek Automotive USA | 53065 |
| Qualis | 43166 |
| TopNotch | TN780928GEO |
| VOLKSWAGEN | 7B0615301C, 7B0615301D, 7B0615301, 7B0615301B |
| WAGNER BRAKE | BD180353, BD180464E |
RAYBESTOS 780928R Fits Vehicles
- Ram C/V (2012-2015)
- Dodge Grand Caravan (2008-2016)
- Volkswagen Routan (2009-2014)
- Chrysler Town & Country (2008-2016)
- Dodge Journey (2009-2013)
