RAYBESTOS 580839R Part Description
Manufacturer
Product Description

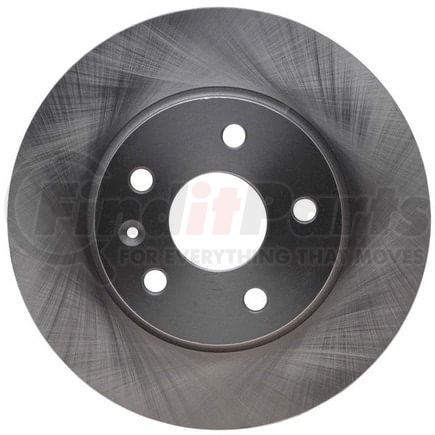

Raybestos R-Line Brake Rotor
Application Summary
2015-2013 Chevrolet Malibu Front, 2016-2012 Buick LaCrosse Front, 2016-2011 Buick Regal Front, 2016 Chevrolet Malibu Limited Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 580839R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.66 IN |
| Center Hole Diameter | 67.55 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.063 IN |
| Discard Thickness | 27 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.323 IN |
| Inside Diameter | 186 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.72 IN |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 11.654 IN |
| Outside Diameter | 296 MM |
| Overall Height | 2.012 IN |
| Overall Height | 51.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352847350 |
RAYBESTOS 580839R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH317660, YH317660C, YH317660P |
| AUTOPARTSOURCE | 493137 |
| AUTOXTRA | AX900914 |
| AUTOZONE | 72019, 72019DG |
| Autoxtra | AX900914P |
| BENDIX | PRT6033 |
| BOSCH | 25011439 |
| BRAKEBEST | 25011439, 580839R, 580839RGS |
| Brembo | 09.A969.11 |
| CENTRIC | 120.62110, 121.62110, 126.62110SL, 126.62110SR, 127.62110L, 127.62110R, 320.62110, 120.6211, 320.6211 |
| Centric Parts | 120.62110, 121.62110, 126.62110SL, 126.62110SR, 127.62110L, 127.62110R, 320.62110 |
| DURA CORP | BR900914 |
| DuraGo | 900914, BR900914, BR900914-02 |
| GM | 13501296, 13501319, 23118529 |
| General Motors | 13501296, 13501319, 23118529 |
| MAGMA PRODUCTS | PMR223134 |
| NAPA BRAKES | SDK6145 |
| NEWTEK AUTOMOTIVE | 55184 |
| Newtek Automotive USA | 55184 |
| POWERSTOP | AR82134EVC |
| PROMAX | 14-55184 |
| Qualis | 41265 |
| TopNotch | TN580839GEO |
| WAGNER BRAKE | BD180437, SB580839 |
| WINHERE | 6620982 |
| WORLDPAC | 1407-317660, 1427-712952 |
| WORLDPARTS | WS1-155184 |
| Wagner Brake | BD180437E |
RAYBESTOS 580839R Fits Vehicles
- Saab 9-5 (2011)
- Chevrolet Malibu Limited (2016)
- Chevrolet Malibu (2013-2016)
- Buick LaCrosse (2012-2016)
- Buick Regal (2011-2017)
