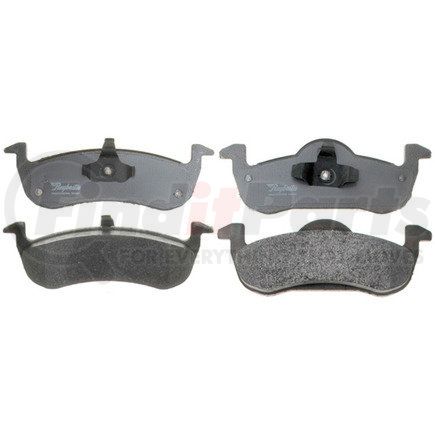

(888) 312-8812 Login SignupRAYBESTOS PGD1279M Raybestos Element3 Metallic Brake Pad Set
MSRP: $84.01
$6149
Save $22.52
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
RAYBESTOS PGD1279M Part Description
Manufacturer
Product Description
Raybestos Element3 Metallic Brake Pad Set
Application Summary
2017-2007 Ford Expedition Rear, 2017-2007 Lincoln Navigator Rear, 2019-2013 Lincoln MKT Rear
Features & Benefits
- Application Specific Formulations
- Application-specific formulas for quiet operation and superior stopping power. Element3(R) brake pads are engineered to combine the best of ceramic & semi-metallic formulations all into one brake pad.
- Noise Dampening Shims
- Premium multi-layer shims on EHT(R) formulations promote quiet stopping in a wide variety of temperature ranges and vehicle platforms.
- EHT(R) Enhanced Hybrid Technology
- EHT(R) Enhanced Hybrid Technology formulations have a premium blend of friction materials allowing optimal performance, improved pad wear & durability, and increased stopping power during aggressive braking.
- Hardware & Electronic Wear Sensors
- Stainless steel brake hardware and electronic wear sensors included. (where applicable)
RAYBESTOS PGD1279M Specifications
Product Attributes
| Chamfered Edges | Yes |
| FMSI Number | D1279-8395 |
| Friction Material Attachment | Integrally Molded |
| Friction Material Composition | Metallic |
| Friction Material Slot Type | Unslotted |
| Inner Pad Height | 2.380 in |
| Inner Pad Overall Thickness | 0.825 IN |
| Inner Pad Width | 6.540 in |
| Mounting Hardware Included | Yes |
| Outer Pad Height | 2.160 IN |
| Outer Pad Overall Thickness | 0.780 in |
| Outer Pad Width | 6.540 IN |
| Pad Shim Attachment Type | Staked |
| Pad Shims Attached | Yes |
| Pad Shims Included | Yes |
| Pad Wear Sensor Attached | No |
| Pad Wear Sensor Included | No |
| Slotted | No |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8708301900 |
| Harmonized Tariff Code (HTS) | 8708305040 |
| UPC | 00829352513712 |
RAYBESTOS PGD1279M Cross References
| Brand | Part Number |
|---|---|
| AGNA Brakes | ALD1279C |
| AKEBONO | ASP1279, ACT1279 |
| Advance Auto Parts | GMKD1279 |
| AutoZone | DG1279, DGC1279 |
| Bendix | MKD1279, SBM1279, SMD1279 |
| Bosch | BP1279 |
| BrakeBest | MKD1279 |
| Brembo | P24212N |
| CENTRIC | 104.12790, 106.12790, 300.12790 |
| Centric Parts | 102.12790, 104.12790, 105.12790, 106.12790, 300.12790, 301.12790, 308.12790, 500.12790 |
| FRITEC | 8395-Z |
| Ford | 7L1Z2200A, 7L1Z2200B, BL1Z2200A, CL1Z2200A |
| Ideal | PMD1279 |
| MAGMA PRODUCTS | MXD1279M |
| Monroe Brakes | DX1279, FX1279 |
| Morse | CMX1279 |
| Motorcraft | BRF1279A |
| Newtek Automotive USA | SCD1279 |
| Perfect Stop | PC1279 |
| PowerStop | 16-1279, 17-1279, PM18-1279, Z23-1279, Z36-1279 |
| WAGNER | MX1279 |
| Wagner Brake | D1279C, FD1279, MD1279, MX1279, OEX1279, PS1279M, QC1279, SX1279, ZD1279, ZX1279 |
RAYBESTOS PGD1279M Fits Vehicles
- Lincoln MKT (2013-2019)
- Lincoln Navigator (2007-2017)
- Ford Expedition (2007-2017)
RAYBESTOS PGD1279M Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS PGD1279M Questions & Answers
No questions yet
Be the first to ask a question about this product!
