RAYBESTOS PGD1122M Part Description
Manufacturer
Product Description

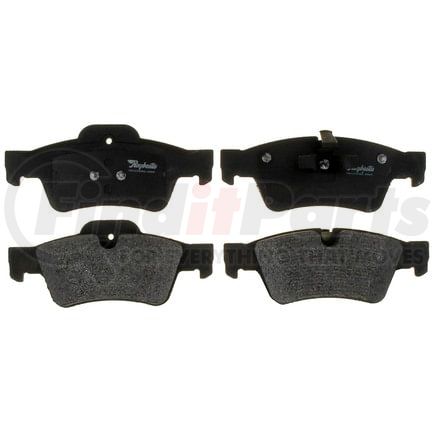

Raybestos Element3 Metallic Brake Pad Set
Application Summary
2011-2006 Mercedes-Benz ML350 Rear, 2012-2007 Mercedes-Benz GL450 Rear, 2012-2006 Mercedes-Benz R350 Rear, 2012-2008 Mercedes-Benz GL550 Rear, 2018-2013 Mercedes-Benz G63 AMG Rear, 2009-2007 Mercedes-Benz ML320 Rear
Features & Benefits
- Application Specific Formulations
- Application-specific formulas for quiet operation and superior stopping power. Element3(R) brake pads are engineered to combine the best of ceramic & semi-metallic formulations all into one brake pad.
- Noise Dampening Shims
- Premium multi-layer shims on EHT(R) formulations promote quiet stopping in a wide variety of temperature ranges and vehicle platforms.
- EHT(R) Enhanced Hybrid Technology
- EHT(R) Enhanced Hybrid Technology formulations have a premium blend of friction materials allowing optimal performance, improved pad wear & durability, and increased stopping power during aggressive braking.
- Hardware & Electronic Wear Sensors
- Stainless steel brake hardware and electronic wear sensors included. (where applicable)
RAYBESTOS PGD1122M Specifications
Product Attributes
| Chamfered Edges | Yes |
| FMSI Number | D1122-8228 |
| Friction Material Attachment | Integrally Molded |
| Friction Material Composition | Metallic |
| Friction Material Slot Type | Unslotted |
| Inner Pad Height | 2.030 in |
| Inner Pad Overall Thickness | 0.655 IN |
| Inner Pad Width | 5.530 in |
| Mounting Hardware Included | Yes |
| Outer Pad Height | 2.350 IN |
| Outer Pad Overall Thickness | 0.655 in |
| Outer Pad Width | 5.570 IN |
| Pad Shim Attachment Type | Staked |
| Pad Shims Attached | Yes |
| Pad Shims Included | Yes |
| Pad Wear Sensor Attached | No |
| Pad Wear Sensor Included | No |
| Slotted | No |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708301900 |
| Harmonized Tariff Code (HTS) | 8708305040 |
| UPC | 00829352779828 |
RAYBESTOS PGD1122M Cross References
| Brand | Part Number |
|---|---|
| AGNA Brakes | ALD1122M |
| AKEBONO | EUR1122 |
| ATE BRAKE PRODUCTS | LD7219, 607219 |
| Advance Auto Parts | GMKD1122 |
| Beck/Arnley | 085-1845, 087-1845, 089-1845 |
| Bendix | D1122, RD1122, SBM1122 |
| Bosch | BC1122 |
| BrakeBest | D1122 |
| Brembo | P50064 |
| CENTRIC | 300.11220 |
| Centric Parts | 102.11220, 103.11220, 104.11220, 105.11220, 300.11220, 301.11220, 308.11220, 500.11220 |
| Ideal | PMD1122 |
| MAGMA PRODUCTS | MXD1122M |
| Mercedes-Benz | 0044205220, 1644201520, 1644201920, 44205220, 1644202720, 0004219601 |
| Monroe Brakes | DX1122, FX1122 |
| PAGID Racing | 355011421 |
| Perfect Stop | PC1122 |
| PowerStop | 16-1122, 17-1122, Z23-1122 |
| VAICO | V308207 |
| WAGNER | MX1122 |
| Wagner Brake | MD1122, MX1122, QC1122, ZD1122, ZX1122 |
RAYBESTOS PGD1122M Fits Vehicles
- Mercedes-Benz G65 AMG (2016-2018)
- Mercedes-Benz G63 AMG (2013-2018)
- Mercedes-Benz G55 AMG (2011)
- Mercedes-Benz ML450 (2010-2011)
- Mercedes-Benz GL350 (2010-2012)
- Mercedes-Benz GL550 (2008-2012)
- Mercedes-Benz ML550 (2008-2011)
- Mercedes-Benz GL320 (2007-2009)
- Mercedes-Benz R320 (2007-2009)
- Mercedes-Benz ML320 (2007-2009)
- Mercedes-Benz GL450 (2007-2012)
- Mercedes-Benz R500 (2006-2007)
- Mercedes-Benz R350 (2006-2012)
- Mercedes-Benz ML350 (2006-2011)
- Mercedes-Benz ML500 (2006-2007)
