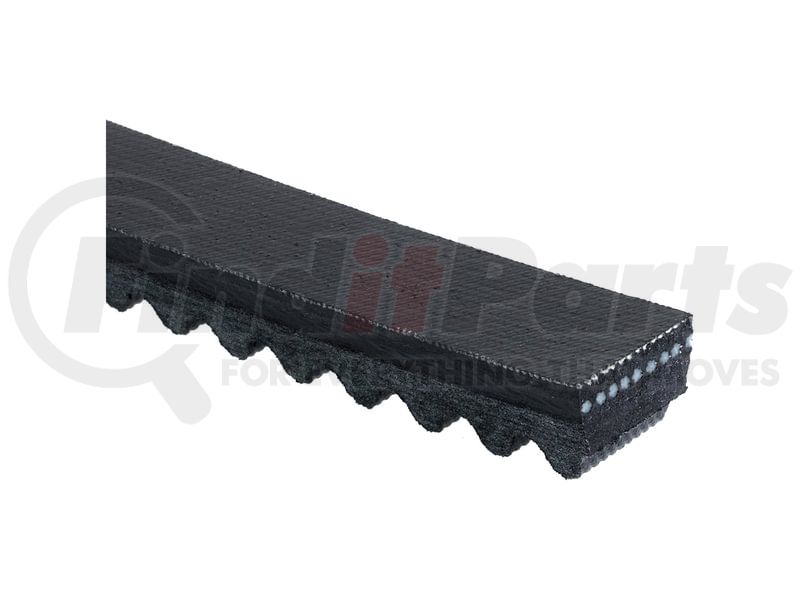

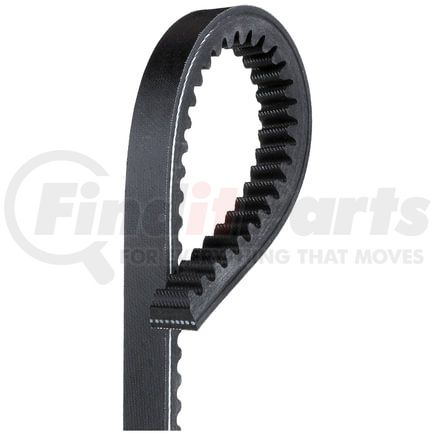

(888) 312-8812 Login SignupGATES TR34545 Green Stripe Truck & Bus Series V-Belt
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES TR34545 Part Description
Manufacturer
Product Description
Green Stripe Truck & Bus Series V-Belt
Application Summary
Bay City, 180, Waukesha 6SRKR, Gen.
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
GATES TR34545 Specifications
Product Attributes
| Type | Truck & Bus V-Belt |
| Cross Section Designation | Y |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .991 in |
| Outside Circumference | 55 in |
| Effective Length | 54.53 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 25 mm |
| Outside Circumference | 1395 mm |
| Effective Length | 1385 mm |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Stock Status | N |
| UPC | 00072053274578 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES TR34545 Cross References
| Brand | Part Number |
|---|---|
| 86200154 | |
| ACDelco | T34545 |
| Carquest | TR34545 |
| Caterpillar | 7E5113 |
| Galion | A372 |
| Goodyear | 41545 |
| Ingersoll/Rand | 140003A, 22493 |
| MBL Three Stars | 34545 |
| Metric | 25A1385 |
| NAPA Belts/Hose | 25-34545 |
| Reo Trucks | 1051M5 |
| Service King | 181AP |
| Thew | A25515 |
| U.S. Government | 507259, A289868 |
| Waukesha | 78382, A140003A, A78382, 152536 |
| White | 15535A, 16751A, 17297A, 22393A, 700812, A372, D17010X, D19215X, YD20448 |
