(888) 312-8812 Login SignupGATES TR28557 Green Stripe Truck & Bus Series V-Belt
Tap to view 1 more
$6199
Limited availability at this price!
In Stock
Get it by Friday, Mar 13
GATES TR28557 Part Description
Manufacturer
Product Description

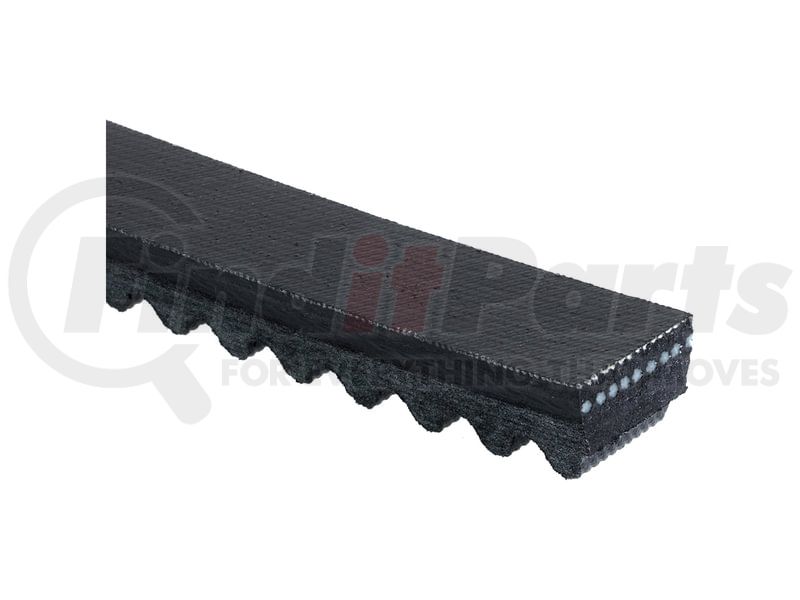

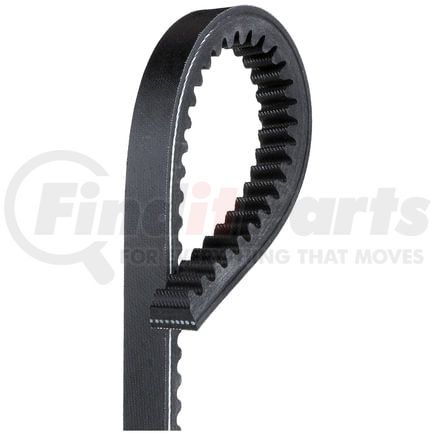

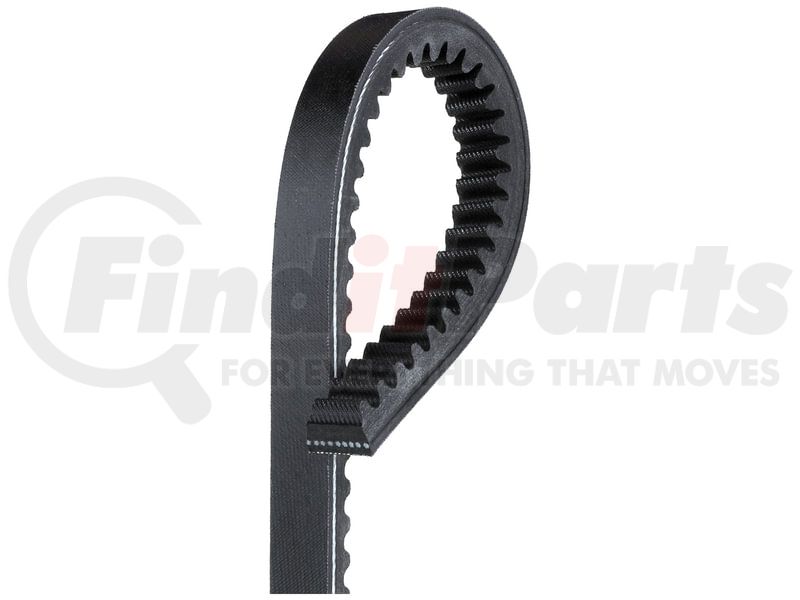

Green Stripe Truck & Bus Series V-Belt
Application Summary
Allis-Chalmers, 16000 Marine, Allis-Chalmers 16000 Diesel, W.P. (Raw)
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
GATES TR28557 Specifications
Product Attributes
| Type | Truck & Bus V-Belt |
| Cross Section Designation | VA |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .775 in |
| Outside Circumference | 56.3 in |
| Effective Length | 55.72 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 20 mm |
| Outside Circumference | 1430 mm |
| Effective Length | 1415 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053276114 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
