(888) 312-8812 Login SignupGATES TR28386 Green Stripe Truck & Bus Series V-Belt
Tap to view 1 more
$3499
Limited availability at this price!
In Stock
Get it by Thursday, Mar 12
GATES TR28386 Part Description
Manufacturer
Product Description

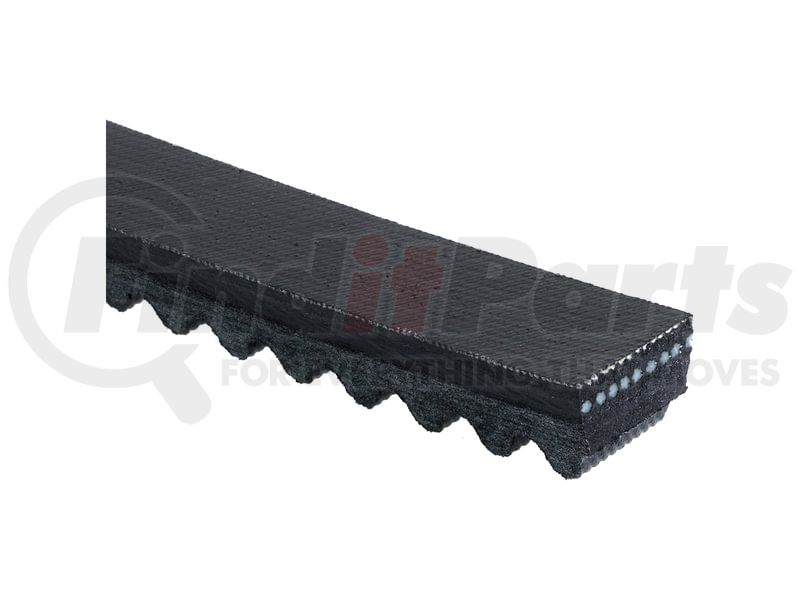

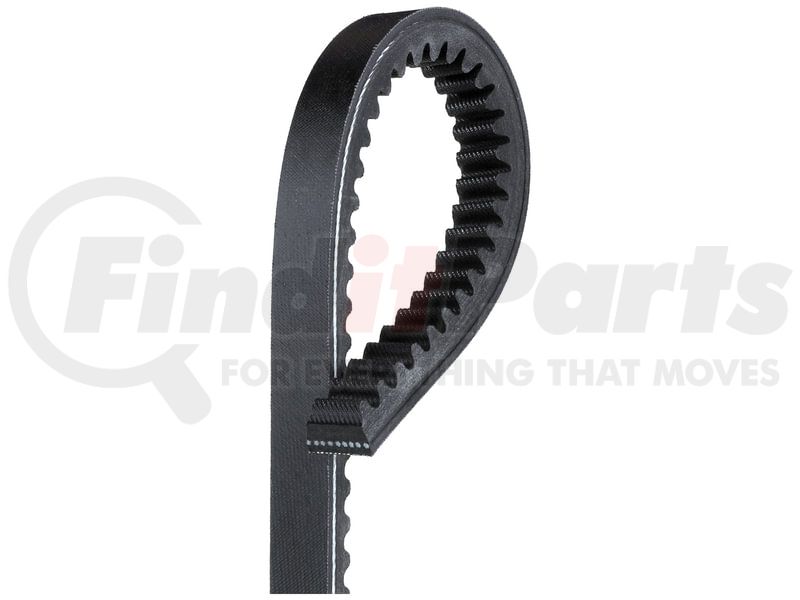

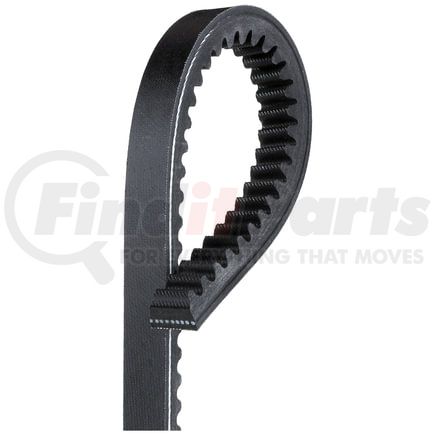

Green Stripe Truck & Bus Series V-Belt
Application Summary
Allis-Chalmers, F40, IH U4, Fan
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
GATES TR28386 Specifications
Product Attributes
| Type | Truck & Bus V-Belt |
| Cross Section Designation | VA |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .775 in |
| Outside Circumference | 39.25 in |
| Effective Length | 38.59 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 20 mm |
| Outside Circumference | 996 mm |
| Effective Length | 980 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053277463 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES TR28386 Cross References
| Brand | Part Number |
|---|---|
| 86200695 | |
| <Unknown> | 20257U, 21094, 30280D, 40624D, 45136D, 4616480, 58924, DE519321, G76678, Z8815H |
| ACDelco | T28386 |
| Adams | 48032D |
| Alliance Truck Parts | GT28391, GTTR28386 |
| Bando | 7380 |
| CONTINENTAL AG | 24377 |
| Carquest | TR28386 |
| Caterpillar | 1H9160 |
| Clark Equipment | 22115, 22234, 366188 |
| Continental Machine | 676678 |
| Cummins | 125367, S2391 |
| Durkee-Atwood | 24-384 |
| Ford | C2R 8620 P, D 67166 A |
| GOODYEAR BELTS | 28386 |
| Goodyear | 24377, 28387 |
| Hall Scott | 652594 |
| Hartschfeger | 7Z212D2 |
| International Harvester (IHC) | 48032DA, B193195, B193854, B194058 |
| Komatsu | D58407A |
| Leroi | 4152 |
| MBL Three Stars | 28385 |
| Metric | 19A0970 |
| Mitsuboshi | RECMF9370 |
| Mopar | B-28387-A |
| Motorcraft | JG-393 |
| NAPA | 25-09700, 25-09730 |
| NAPA Belts/Hose | 25-28386, TR28386 |
| Perkins | 0070043, 0070085 |
| Reo Trucks | 24088 |
| Service King | 108 |
| U.S. Government | 507265, D67166A |
| Ultra | 30 51733 |
| White | 114077, 115352, 1AK0510, 22386, 22386A, 22386B, 22388A, 316696, 317051, 621395, 904054, B372 |
| Yale | 241003 |
GATES TR28386 Fits Vehicles
- Viking Eight (1929-1930)
- Jordan Model R (1928)
- Oldsmobile Model F-30 (1930)
- Oldsmobile Model F-29 (1929)
- Triumph TR4A (1965-1967)
- Triumph TR3B (1962)
- Triumph TR4 (1962-1964)
- Triumph TR3A (1960-1961)
