(888) 312-8812 Login SignupGATES TR24688 Green Stripe Truck & Bus Series V-Belt
Tap to view 1 more
$4799
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Mar 10
GATES TR24688 Part Description
Manufacturer
Product Description

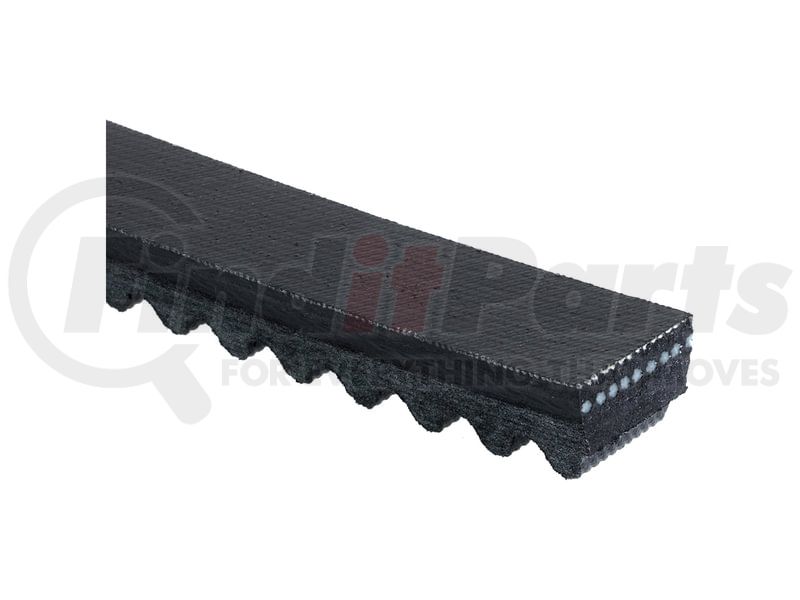

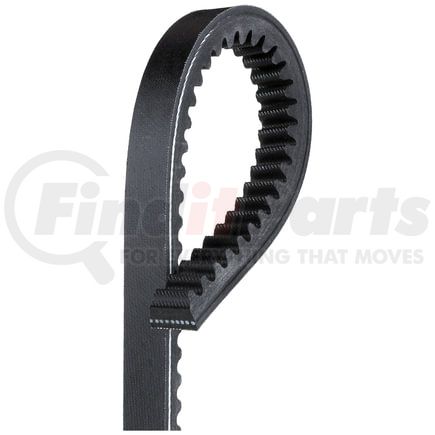

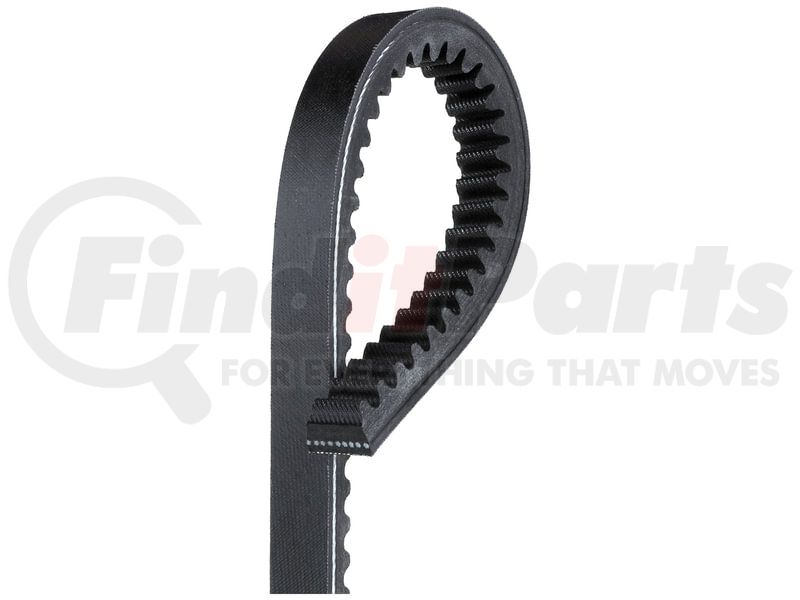

Green Stripe Truck & Bus Series V-Belt
Application Summary
Caterpillar, 120 (14K), Caterpillar D333 Diesel, Fan
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
GATES TR24688 Specifications
Product Attributes
| Type | Truck & Bus V-Belt |
| Cross Section Designation | TA |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .656 in |
| Outside Circumference | 69.26 in |
| Effective Length | 68.68 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 17 mm |
| Outside Circumference | 1759 mm |
| Effective Length | 1744 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053277975 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES TR24688 Cross References
| Brand | Part Number |
|---|---|
| 86200999 | |
| <Unknown> | 24692, 581710, 667322 |
| ACDelco | T24688 |
| Allis Chalmers | 4030619, DP619 |
| BF Goodrich | 24696 |
| Bando | 9680, 9690 |
| CONTINENTAL AG | 24687 |
| Carquest | TR24688 |
| Caterpillar | 5S9079, 5S9506, 7M5972, 7M5973, 7S1690, 7S1691, 3R192 |
| Chrysler | 1537993, 1615535 |
| Cummins | 123819, 178527 |
| Dayco | 50149, 605M, 24695 |
| Eimco | 103A8250, 103AB8250 |
| Epton | 24696 |
| GOODYEAR BELTS | 24688 |
| General Motors | 5121591, 5136619 |
| Goodyear | 24687 |
| Hall Scott | 667633 |
| International Harvester (IHC) | 612134C11 |
| MBL Three Stars | 24690 |
| Massey Ferguson | GL5143 |
| Metric | 17A1745 |
| Mitsuboshi | RECMF3685, RECMF3690 |
| Mopar | B-24687-A, BH-277, BH-278 |
| NAPA | 25-17430 |
| NAPA Belts/Hose | 25-24688, TR24688 |
| U.S. Government | 44353 |
| White | 6667633 |
