(888) 312-8812 Login SignupGATES G31102-0604 Air Brake to Male Pipe - 45 (SureLok)
Tap to view 3 more
MSRP: $27.77
$1349
Save $14.28
Limited availability at this price!
In Stock
Get it by Thursday, Mar 5
GATES G31102-0604 Part Description
Manufacturer
Product Description

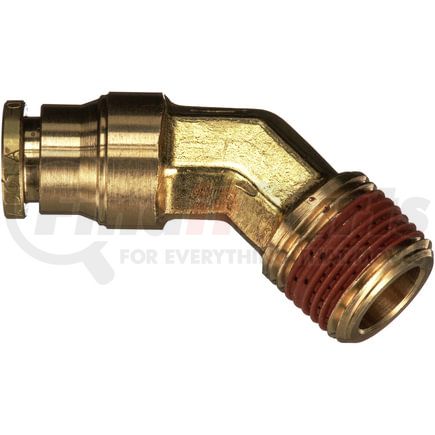

Air Brake to Male Pipe - 45 (SureLok)
Features & Benefits
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
GATES G31102-0604 Specifications
Product Attributes
| Coupling Description | SureLok Air Brake to Male Pipe - 45 |
| Industrial Description | 6AB-4MP45 |
| Thread Size | 1/4-18 |
| Outside Diameter | .375 IN |
| Nut Hex Size | 19 MM |
| Drop Length | 1.1 IN |
| Length | 2.16 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | 360 Brass |
| Seal Material | Ethylene Propylene |
| Drop Length | 27.9 MM |
| Length | 54.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7412200015 |
| Stock Status | S |
| UPC | 00029769157145 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
GATES G31102-0604 Cross References
| Brand | Part Number |
|---|---|
| 725000965 | |
| Alkon Corp | AQ54-DOT-6X4 |
| IMI Norgren | 95 460 006 |
| Lawson | 27196 |
| N/A | 04034373 |
| NAPA | G31102-0604 |
| Parker | 179PMTNS-6-4 |
| WORLD AMERICAN | WA01-5869 |
| Weatherhead | 1880X6 |
