GATES G25105-0608 Part Description
Manufacturer
Product Description

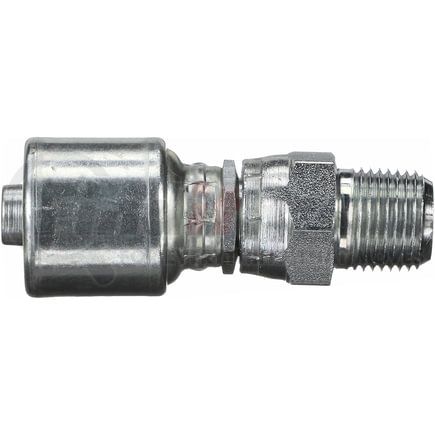

Male Pipe Swivel (NPTF - Without 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25105-0608 Specifications
Product Attributes
| Stem Hex Size | .75 IN |
| Nut Hex Size | 1 IN |
| Cut-Off Length | 1.95 IN |
| Length | 3.04 IN |
| Seal Type | Thread Interference |
| Thread Angle | 60 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Coupling Description | MegaCrimp Male Pipe Swivel (NPTF - w/o 30 Cone Seat) |
| Industrial Description | 6G-8MPX |
| Thread Size | 1/2-14 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 49.5 MM |
| Length | 77.2 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053322767 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25105-0608 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA8PS6, FJ9126-0806S |
| Caterpillar | 124-1918 |
| Dayco | 108187, 151187, HY06-08SP |
| Eaton | 06Z-J08 |
| Goodyear | 13645-0608, 14645-0608, B2-NPMX-0608, T8-NPMX-0608 |
| Kurt Hydraulics | MPX-06-08 |
| N/A | 04031685, C12212811-0608, 206-1J-208, M14110-06-08R |
| NAPA | G25105-0608 |
| Parker | 11343-08-06, 11343-8-6, 113HY-8-6 |
| Weatherhead | 06UJ08, 06ZJ08, 06U-J08, 06W-J08 |
