GATES 6747 Part Description
Manufacturer
Product Description

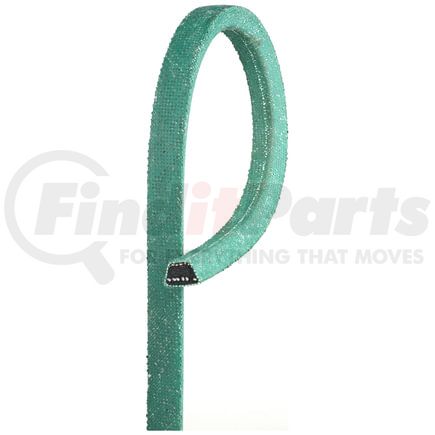

PoweRated FHP Medium Horse-Power V-Belt
Application Summary
Simplicity, 1691867, , Turbo Drive
Features & Benefits
- Designed with distinct green color bareback construction for smooth clutching on shock loaded, backside idler-driven equipment to ensure high crack resistance
- Low, aramid tensile cord positioned in a thin profile gives extreme flexibility and limited stretch with extraordinary strength and durability
- Meets RMA oil and heat-resistant standards, but not for static conductivity
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- Note: Gates PoweRated V-belts can be substituted for equivalent sizes of FHP low horsepower Gates Truflex V-belts
GATES 6747 Specifications
Product Attributes
| Type | FHP Medium Horse-Power V-Belt |
| Cross Section Designation | 3L |
| Angle | 38 |
| Strand Quantity | 1 |
| Top Width | .38 in |
| Outside Circumference | 47 in |
| Effective Length | 46.9 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | EPDM |
| Cord Material | Aramid |
| Top Width | 10 mm |
| Outside Circumference | 1194 mm |
| Effective Length | 1191 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053004175 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 6747 Cross References
| Brand | Part Number |
|---|---|
| <Unknown> | 120491, 2662347, 2662C3471, 4036183, 420470001000, KK5705475AR31, P81036, PB1036 |
| ACDelco | 3L470, 3L470P |
| American Lincoln | 20002105 |
| BF Goodrich | 0470 |
| Browning Manufacturing | 0455 |
| CARQUEST | 1470, 6747 |
| CONTINENTAL AG | 83470 |
| Dayco | 0M047, 3L470, 38X470, L347 |
| Durkee-Atwood | 38-470, XDV38-470 |
| General Electric | K5705475AF31 |
| General Power | 170738 |
| Gilmer | 2470 |
| Goodyear | 3L470, 73470, FO47, 83470, 3LK470 |
| Grainger | 3L470 |
| Hunter Fanasher | 4700 |
| John Deere | LG38470, T12031 |
| L Series | 3L470 |
| MBL Three Stars | 3LK470 |
| Maytag | 3011012, 311010, 311012 |
| Metric | 9R1195, 9RL1195 |
| Mopar | B3L-470 |
| NAPA Belts/Hose | 3L470, 3L470W, 1470 |
| Oregon | 75-347 |
| Power Lawnmower Part | 109-038 |
| Prime-Line | 7-3H470 |
| Reliance Electric | 108182 |
| Rotary Lifts | 12-5030, 12-7452 |
| Silver Streak | 75-647, DB3L470, 75-347 |
| Simplicity | 1705141 |
| Stens | 238-047 |
| Sunbrand | 1470T719 |
| Sund | T719 |
| Tennant | 02385 |
| Thermoid | 3H470 |
| Universal Sewing | 13687 |
| Wheel Horse | 251030 |
