GATES 24440 Part Description
Manufacturer
Product Description

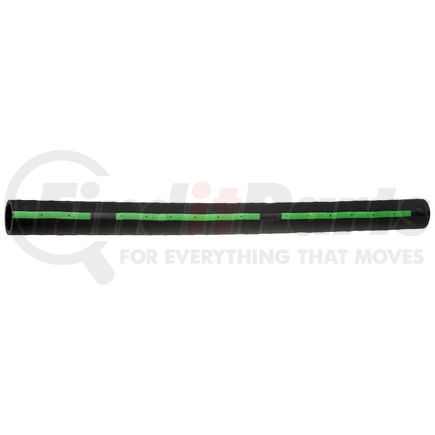

Green Stripe 4-Ply Straight Coolant Hose
Application Summary
2017-16 Freightliner, Cascadia, Cummins ISX15 Diesel, Upper - Rad. To Pipe
Features & Benefits
- Engineered with compounds to resist electrochemical degradation - the leading cause of hose failure
- Engineered with compounds to resist electrochemical degradation – the leading cause of hose failure
- Nitrile tube specially compounded to handle common coolants and additives
- Four-ply woven, heavy-duty fabric reinforcement
- Neoprene cover resists heat, abrasion and oil
- Exceeds SAE 20R1 (Class B Tube, Class C Cover, Heavy Wall)
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) continuous; up to +257 Deg. F (+125 Deg. C) intermittent
- Temperature Range: –40 Deg. F to +212 Deg. F (–40 Deg. C to +100 Deg. C) continuous; up to +257 Deg. F (+125 Deg. C) intermittent
- Caution: Do not use for gasoline or diesel transfer applications
GATES 24440 Specifications
Product Attributes
| Centerline Length | 3 FT |
| End 1 Inside Diameter | 2.5 in |
| End 2 Inside Diameter | 2.5 in |
| Working Pressure | 75 PS |
| Construction | 4-Ply |
| Material | EPDM |
| Molded | No |
| Centerline Length | .91 LM |
| Centerline Length | 36 IN |
| Centerline Length | 914 MM |
| End 1 Inside Diameter | 64 MM |
| End 2 Inside Diameter | 64 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053298093 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
GATES 24440 Cross References
| Brand | Part Number |
|---|---|
| 41791666 | |
| Alliance Truck Parts | GT/4175SC250, GTF71068SB |
| CONTINENTAL AG | 57040 |
| Carquest | 24440 |
| Case Tractor | S120031 |
| Caterpillar | 5P1262 |
| DAYCO | 77250GL |
| Dayco | 71757, D71757 |
| Ford | F1HT 8260 ADA, F1HT 8260 AEA, F1HZ 8260 R, F4HZ 8260 A, F4HZ 8260 B, F2HZ 8260 L |
| Freightliner Trucks | 0527689000, 0529916000 |
| Goodyear | 57040 |
| International Harvester (IHC) | 503232C1, 571608C1, 571784C1, 792616C1, L57240 |
| Mack | 534222, 535512 |
| NAPA Belts/Hose | 668 |
| Oshkosh | 12160FX, 12160FX1, 3665598 |
GATES 24440 Fits Vehicles
- International 9400i SBA (2007)
- International 2674 (2001)
- International WorkStar 7300 (2015)
- Freightliner FLD132 (2009)
- Freightliner M2 106 (2016)
- International HX615 (2017)
- International HX515 (2017)
- International 9900i (2010, 2013-2018)
- International 7600 (2011, 2013, 2015)
- International LoneStar (2014-2017, 2019-2021)
- Freightliner M2 112 (2016)
- International 8600 TranStar (2014-2015)
- Freightliner FLD120SD (2009)
- International 7400 (2010, 2013, 2016)
- International 7300 (2012, 2015)
- Western Star 4900EX (2008-2009, 2012)
- Western Star 4900FA (2003, 2008, 2010-2013)
- Western Star 4900SA (2002-2003, 2009)
- Kenworth T660 (2009-2011)
- Kenworth W900 (2009)
- Kenworth T800 (2009-2010)
- Freightliner Classic (2008)
- Freightliner Cascadia (2010-2018)
- Freightliner 114SD (2012-2016)
- Freightliner 108SD (2012-2014, 2017-2019)
- Freightliner Columbia (2002-2003)
- International WorkStar 7700 (2008-2009)
- International 5500i (2008-2009, 2011-2012)
- International ProStar (2008-2013)
- International WorkStar 7600 (2009-2011, 2013)
- International 5600i (2009-2011)
- International 9200i SBA (2008-2011)
- Sterling Truck L9500 (2009)
- Oshkosh Motor Truck Co. S (2004-2011)
