(888) 312-8812 Login SignupGATES 22178 Premium Modular Coolant Hose
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 22178 Part Description
Manufacturer
Product Description

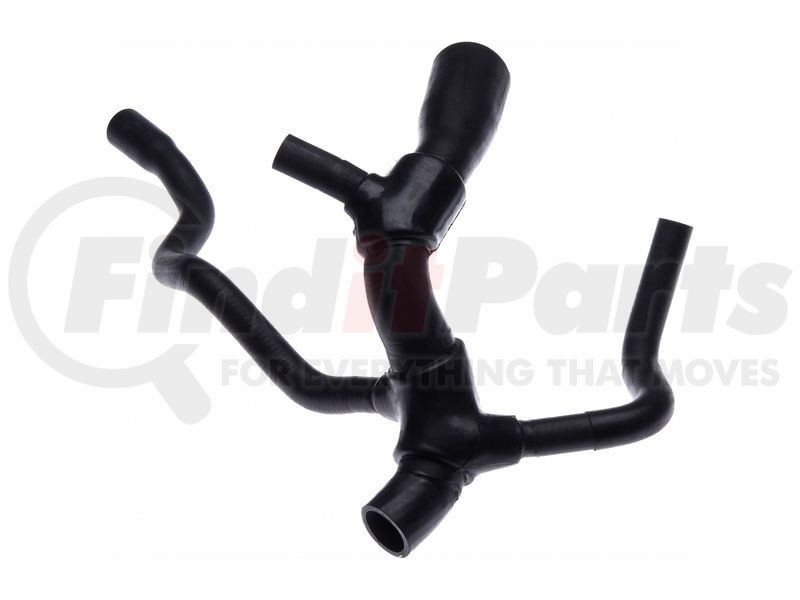

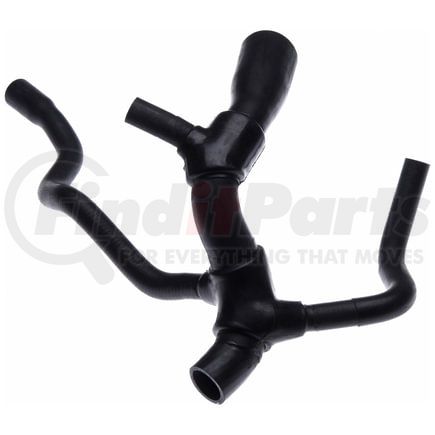

Premium Modular Coolant Hose
Application Summary
1997-1995 Ford, Contour, 4-Cyl. 2.0 L, Lower
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Engineered to resist electrochemical degradation – the leading cause of hose failure
- EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
- Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
- Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 22178 Specifications
Product Attributes
| Centerline Length | 14.397 IN |
| Modular | Yes |
| Modular Components Included | 3 Branches |
| Branch Quantity | 3 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.26 in |
| End 2 Inside Diameter | 1.69 in |
| End 3 Inside Diameter | .61 in |
| End 4 Inside Diameter | .61 in |
| End 5 Inside Diameter | .61 IN |
| Contains Spring | No |
| Material | EPDM, Plastic |
| Molded | Yes |
| Centerline Length | 15 MM |
| End 1 Inside Diameter | 32 MM |
| End 2 Inside Diameter | 43 MM |
| End 4 Inside Diameter | 15 MM |
| End 5 Inside Diameter | 15 MM |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Stock Status | N |
| UPC | 00072053175233 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 22178 Cross References
| Brand | Part Number |
|---|---|
| 42942178 | |
| ACDelco | 26292X |
| CONTINENTAL AG | 62220 |
| Carquest | 22178 |
| DAYCO | 71835 |
| Ford | 96BB 8286 AA, F5RZ 8286 A |
| Motorcraft | KM-2911 |
| NAPA Belts/Hose | 8838 |
GATES 22178 Fits Vehicles
- Mercury Mystique (1995-1997)
- Ford Contour (1995-1997)
