(888) 312-8812 Login SignupGATES 20820 Premium Molded Coolant Hose
$2349
Limited availability at this price!
In Stock
Get it by Friday, Mar 13
GATES 20820 Part Description
Manufacturer
Product Description

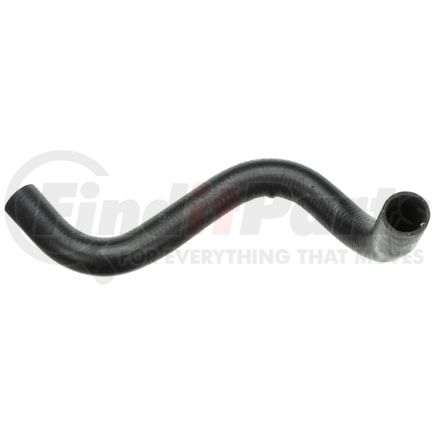

Premium Molded Coolant Hose
Application Summary
1993-1986 Chevrolet, S Series Pickup, V-6 2.8 L, Upper
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 20820 Specifications
Product Attributes
| Centerline Length | 23.3 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.26 in |
| End 2 Inside Diameter | 1.46 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 592 MM |
| End 1 Inside Diameter | 32 MM |
| End 2 Inside Diameter | 37 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Stock Status | S |
| UPC | 00072053053319 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 20820 Cross References
| Brand | Part Number |
|---|---|
| 42610820 | |
| ACDelco | 24051L |
| Atlas | MC143 |
| Atlas (Canada) | MH-1246 |
| Beck/Arnley | 142-1833 |
| Bravo | C0820 |
| CONTINENTAL AG | 60936, 61396 |
| Canadian Tire | 14-1703-0 |
| Carquest | 20820 |
| Charter | C0820 |
| Dayco | 71288, E71288 |
| Duralast | E71288 |
| Durkee-Atwood | 41396 |
| Firestone | 51313933 |
| GOODYEAR BELTS | 40-106932 |
| General Motors | 15530716, 15561145 |
| Goodyear | 365, 61396 |
| Hyundai | 2541224000, 2541224010, 2541224020 |
| Lazorlite | U34-2467 |
| MasterPro | 20820, C0820 |
| Mercedes-Benz | 1155010282, 1155010882, 1155010888, 81155010882 |
| Motorcraft | KM-2091, KM-1635 |
| NAPA Belts/Hose | 7559 |
| Petro-Canada | 740 207 |
| Roadmax | C0820 |
| Trugrip | 2069 |
| Ultralast | C0820 |
GATES 20820 Fits Vehicles
- Mercedes-Benz 200 (1968)
- Mercedes-Benz 200D (1968)
- Mercedes-Benz 220D (1968-1973)
- Mercedes-Benz 220 (1968-1973)
- Mitsubishi Precis (1990-1994)
- GMC S15 (1986-1990)
- GMC Sonoma (1991-1993)
- GMC S15 Jimmy (1986-1989)
- Chevrolet S10 (1986-1993)
- Chevrolet S10 Blazer (1986-1989)
- Buick Century (1982)
- Hyundai Excel (1990-1994)
- Hyundai Scoupe (1991-1992)
