GATES 20516 Part Description
Manufacturer
Product Description

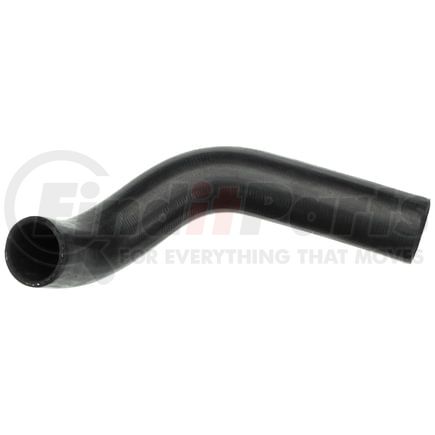

Premium Molded Coolant Hose
Application Summary
1967-1965 Ford, E Series Van, 6-Cyl. 240, Lower
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 20516 Specifications
Product Attributes
| Centerline Length | 14.6 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.75 in |
| End 2 Inside Diameter | 1.75 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 371 MM |
| End 1 Inside Diameter | 44 MM |
| End 2 Inside Diameter | 44 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Stock Status | S |
| UPC | 00072053051490 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 20516 Cross References
| Brand | Part Number |
|---|---|
| 42610516 | |
| ACDelco | 22026M |
| CONTINENTAL AG | 60292 |
| Carquest | 20516 |
| DAYCO | 70445 |
| Dayco | 353, C71829, 70353, 71829 |
| Duralast | F10964 |
| Ford | C5TA 8286 AD, C5TA 8286 C, C5TZ 8286 C, C6TZ 8286 C, C7TA 8286 AU, F5UA 8B273 UB, F5UZ 8286 E |
| General Motors | 1475733, 1478313 |
| Mopar | BH-874 |
| Motorcraft | KM-46, KM-532, KM-69, KM-70, KM-88, KM-2935 |
| NAPA Belts/Hose | 7305, 20516 |
GATES 20516 Fits Vehicles
- Ford Econoline (1965-1967)
- Cadillac Series 62 (1961-1962)
- Cadillac Commercial Chassis (1961-1962)
- Cadillac Series 75 Fleetwood (1961-1962)
- Ford Club Wagon (1965-1967)
- Cadillac DeVille (1961-1962)
- Cadillac Series 60 Fleetwood (1961-1962)
- Cadillac Eldorado (1961-1962)
